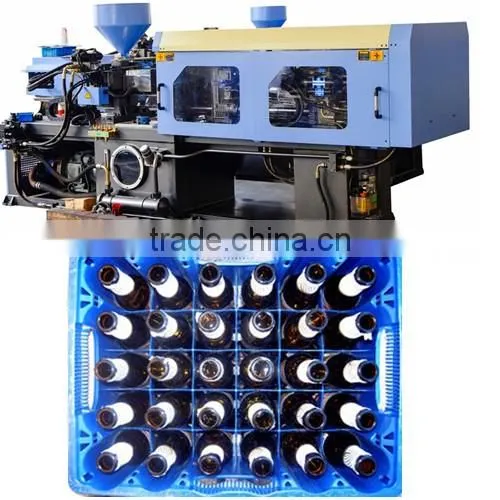

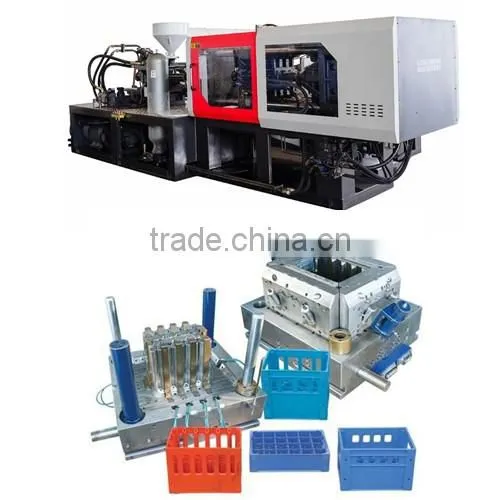

Plastic Beer Case Injection Moulding Machine
The LONGSHENG Plastic Beer Case Injection Moulding Machine employ a variable pump plus closed loop feedback,which offers stable control of shot size, the accuracy of resin quantity and the increase of the production of acceptable products.
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
Technical Data of Plastic Beer Case Injection Moulding Machine
|
INJECTION UNIT |
|
Unit |
LSF-418 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
70 |
75 |
80 |
|
Screw L/D Ratio |
L/D |
21.4 |
20 |
18.8 |
|
Short Size |
Cm3 |
1385 |
1590 |
1809 |
|
Injection weight |
G |
1260 |
1447 |
1646 |
|
Injection Rate |
g/s |
310 |
356 |
405 |
|
Plasticizing capacity |
g/s |
60 |
65 |
70 |
|
Injection Pressure |
Mpa |
195 |
158 |
139 |
|
Screw Speed |
Rpm |
0-165 |
|||
Screw Stroke |
mm |
360 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
4180 |
||
Space Between Tie Bars |
mm |
720*720 |
|||
Toggle Stroke |
mm |
700 |
|||
Max. Mold Height |
mm |
760 |
|||
Min. Mold Height |
mm |
280 |
|||
Ejector Stroke |
mm |
200 |
|||
Ejector Tonnage |
KN |
110 |
|||
Ejector Number |
P |
13 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
37 |
|||
Heater Power |
Kw |
24.8 |
|||
Machine Dimension(L*W*H) |
M |
7.3*2.0*2.2 |
|||
Oil Tank Capacity |
L |
850 |
|||
Machine Weight |
T |
16 |
|||

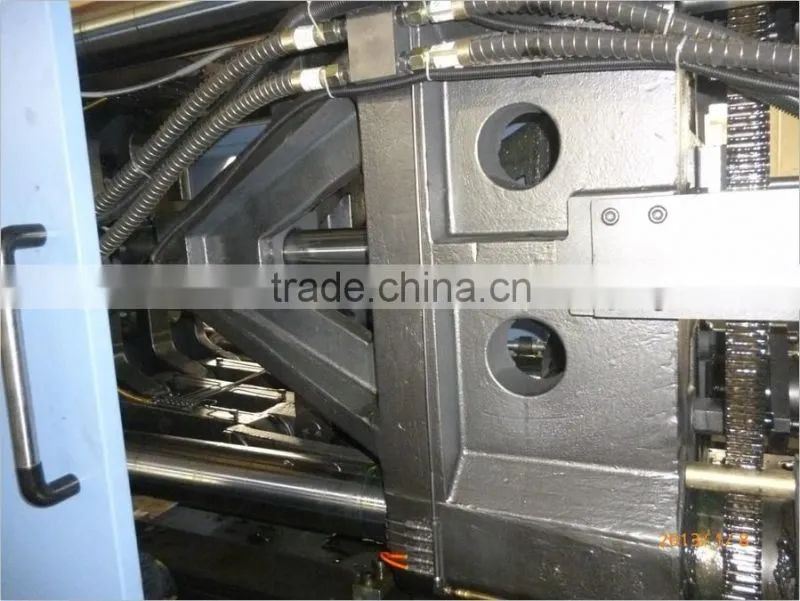

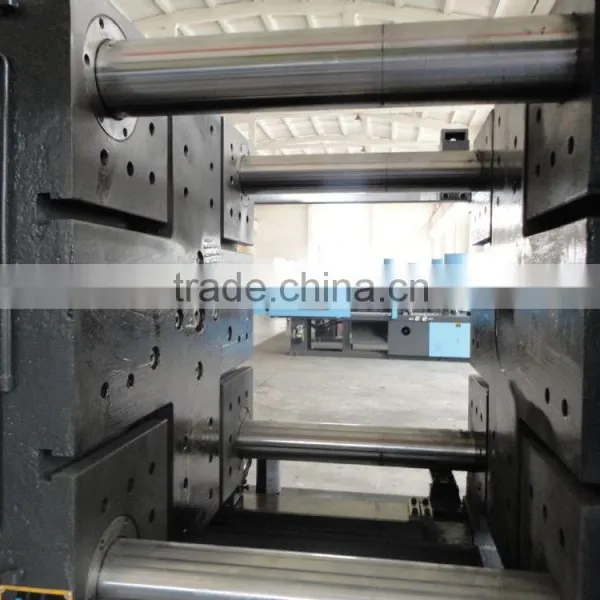

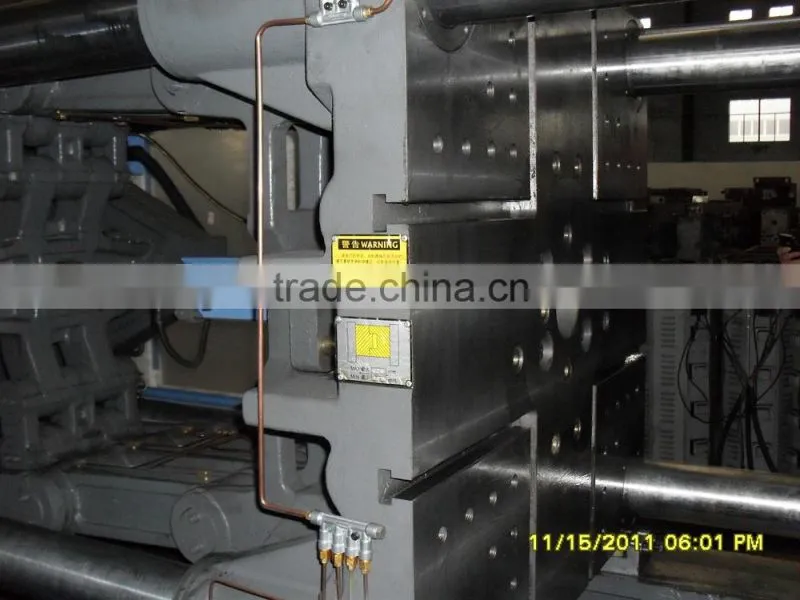

Clamping Unit:
1. Optimized Platen Design with high rigidity and enlarged space between tie bars
2. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3. New ejection system design with longer ejection stroke, bigger space and better rigidity
4. Hydraulic drivien gear-type mold height adjustion mechanism
5. Relocation of mechanical safety interlock for easier operation
6. linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.

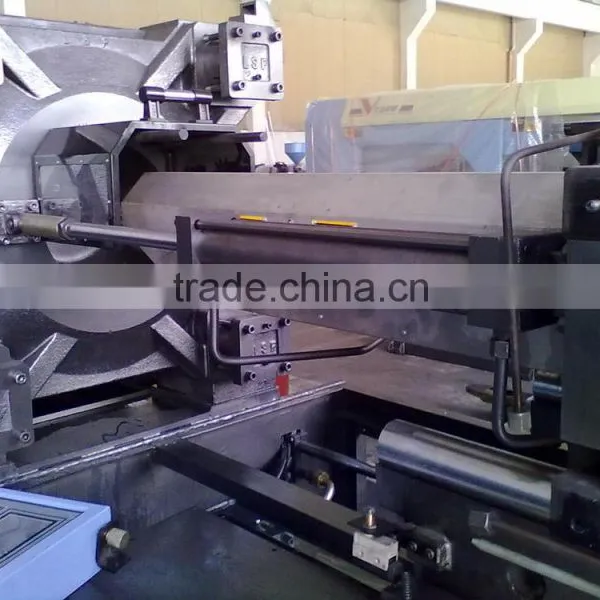

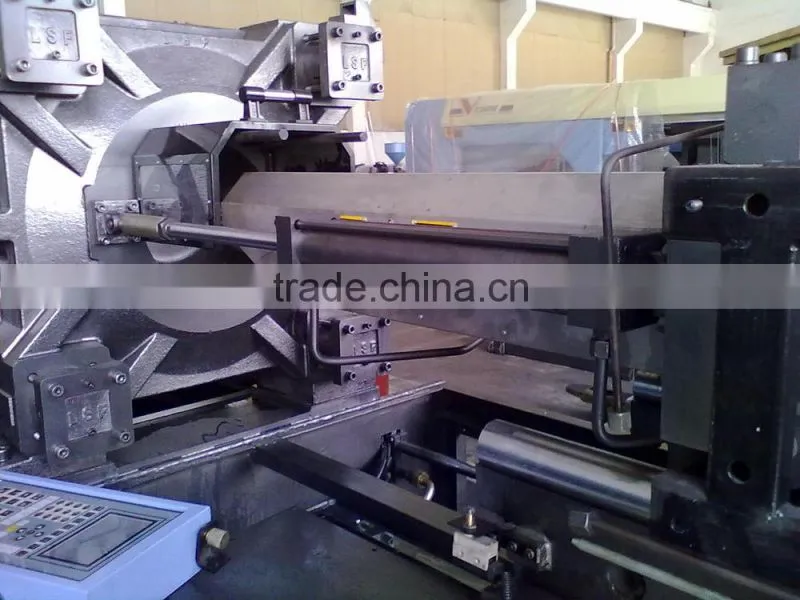

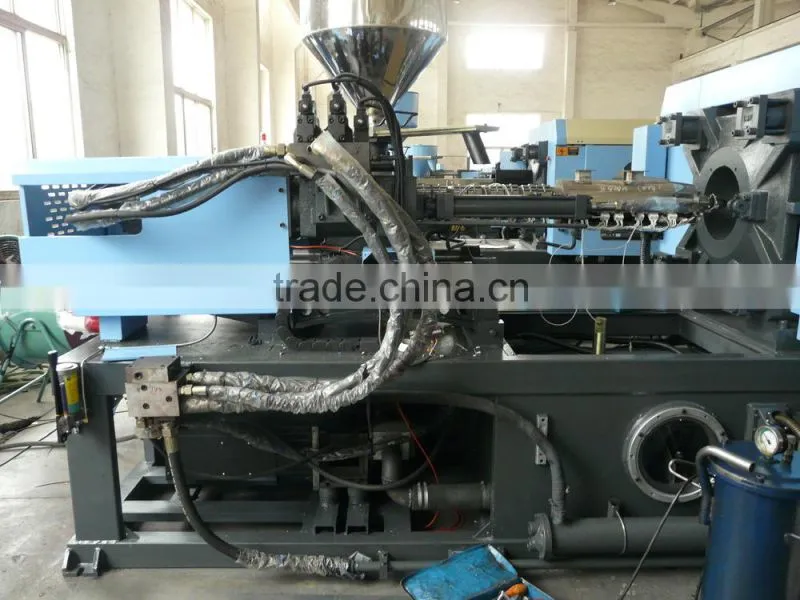

Injection Unit:
1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2. High Speed & Pressure injection structure can improve the injection speed
3. Twin nozzle cylinder ensures more even & stable structure
4. Specilized screw barrel design for various appliance

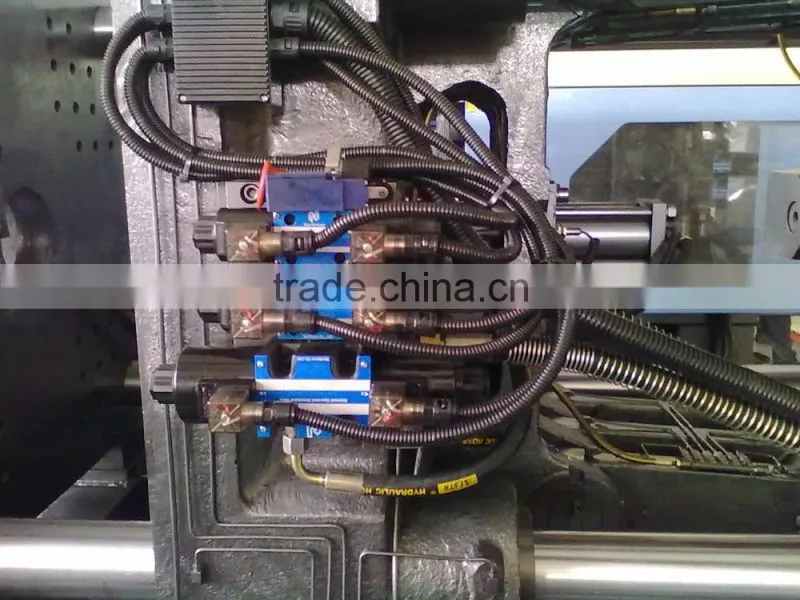

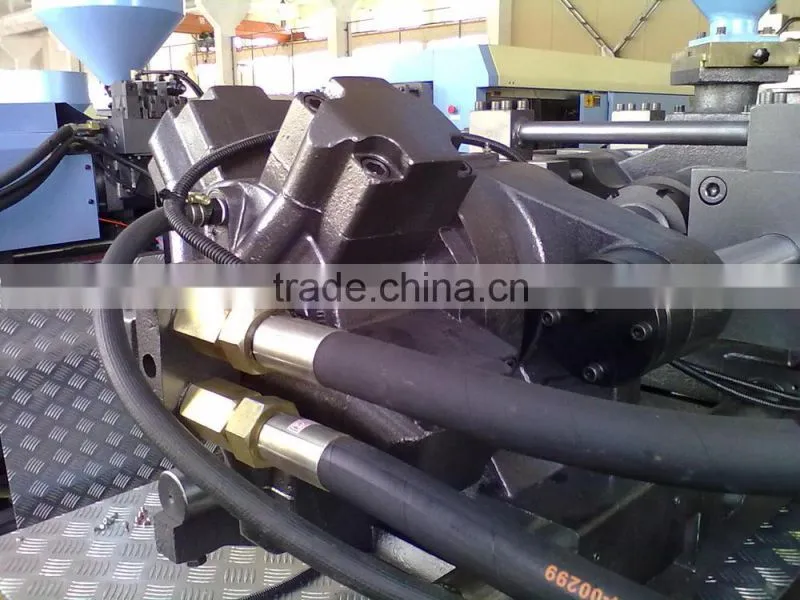

Hydraulic System:
1. The double proportional compound valve control system pressure & flow, highly sensitive & stable
2. Imported high quality Pump, low in noise, long in lifespan & stable in performance
3. World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4. The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5. High performance hydraulic valve, less failure, fast switch, convenient maintenance
6. Low pressure mold protect system, which is more suitable for the precise mould
7. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

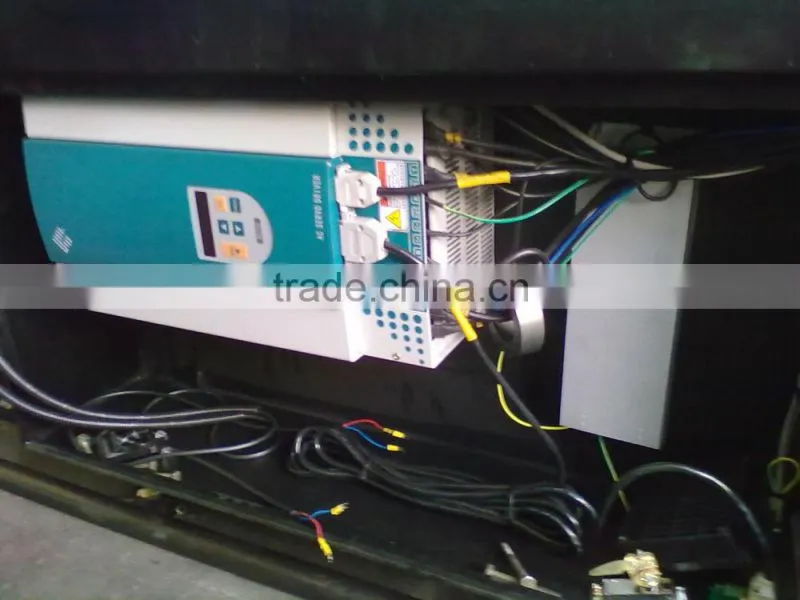

Servo Controller Part:
1. High Precise Control
The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%
2. High sensitive response
Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, LSF series is more faster in speed with shorter cycle time and high efficient in production
3. Low noise
Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop
4. Energy Saving
Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 30-80% energy, and achieve first-class energy efficency
5. Water cooling saving
The system condition prevent high pressure uploading without any power output, leads to the water cooling saving

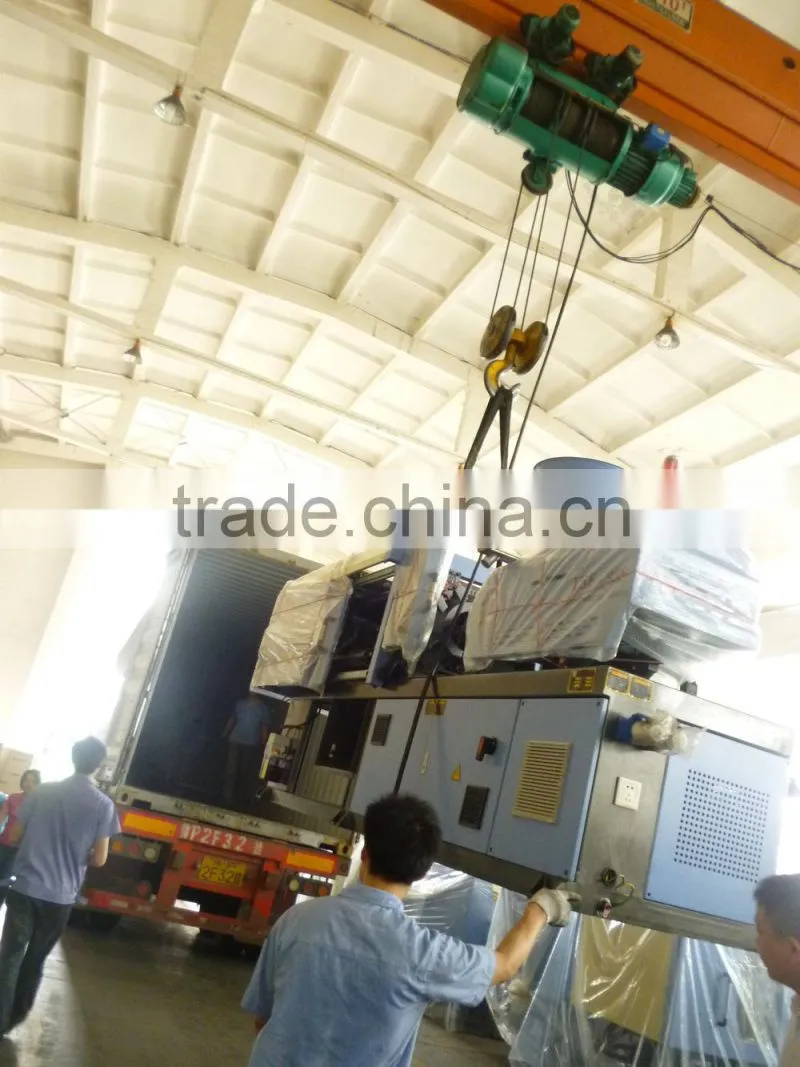

Packaging Detail: |
Plastic film, wood pad, |
Delivery Detail: |
30 days (it is subject to confirmation.) |
Service for installation, training and dispatching the technical
- if user require dispatching our technical for the new machine installation or operation training, the user should afford the fee for our engineer’s round-trip ticket ,board and lodging during installation ,and salary(100USD/day)

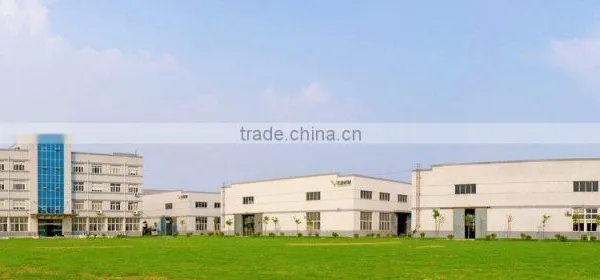

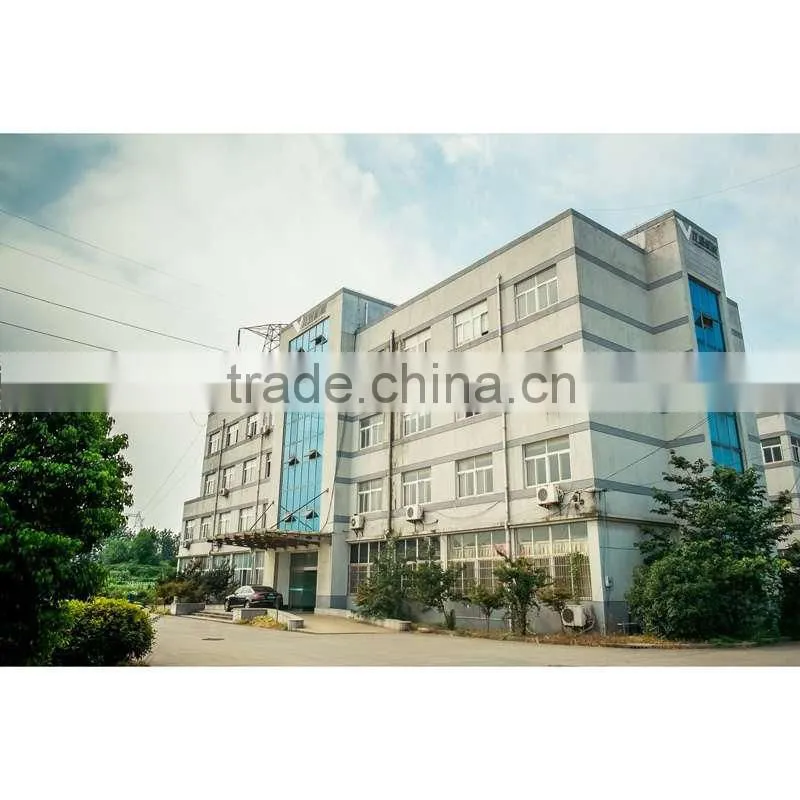

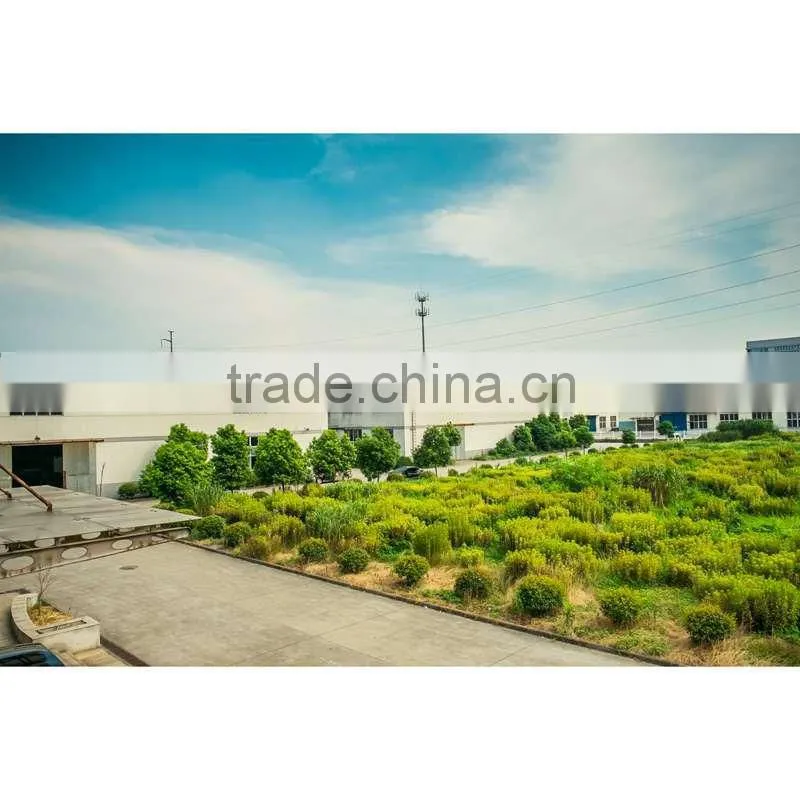

Founded in 2001,Changzhou Longsheng Machinery Co.Ltd
Is a professional manufacturer of Plastic Beer Case Injection Moulding Machine , the clamp force is from 68 ton to 1680ton .injection weight ranges from 60g to 10000g .
With all those advantages and leading technology implementation,LSF series injection molding machines are extremely suitable for the injection molding processing of many different types of plastic beer bottle box.
