China Supplier Plastic Injection Molding Machine
1.Machine introduction of China Supplier Plastic Injection Molding Machine
The installation of a stepper motor feeding, microcomputer control, so feeding more accurate. Reel-fed head to avoid being scratched strand phenomenon. High surface finish requirements for products, strand length accurate product. Automatic feeding, cutting, forming, pusher, uninterrupted production. Simple, stable quality, Crane fast, high production efficiency. Four-speed transmission, simple operation, easy switching. It can be processed according to the workpiece material, through line, length, shape is not the same, the choice of an appropriate speed. Easy adjustment, production of different products can simply replace the mold. Materials, workmanship, integrated high performance and long life.
2.Technical parameters of China Supplier Plastic Injection Molding Machine
Model |
HTO-ZSJ180 |
|||
|
A |
B |
C |
|
Screw Diameter |
Mm |
40 |
45 |
48 |
Screw L/D Ration |
L/D |
22.5 |
20 |
18.8 |
Shot Size(Theoretical) |
cm3 |
253 |
320 |
364 |
Injection Weight(PS) |
g |
230 |
291 |
331 |
Injection Rate |
g/s |
108 |
128 |
158 |
Injection Pressure |
MPa |
202 |
159 |
140 |
Screw Speed |
rpm |
0~185 |
||
Clamp tonnage |
KN |
1800 |
||
Opening stroke |
Mm |
430 |
||
Space Between Tie Bars |
mm |
470*470 |
||
Max.Mold Height |
mm |
500 |
||
Min.Mold Height |
mm |
180 |
||
Ejector Stroke |
mm |
130 |
||
Ejector Tonnage |
KN |
45 |
||
Max.Pump Pressure |
MPa |
16 |
||
Pump Motor Power |
KW |
15 |
||
Heater power |
KW |
7.5 |
||
Machine Dimension(L*W*H |
M |
5.1*1.4*1.9 |
||
Machine weight |
T |
5.5 |
||
Oil Tank Capacity |
L |
240 |
||

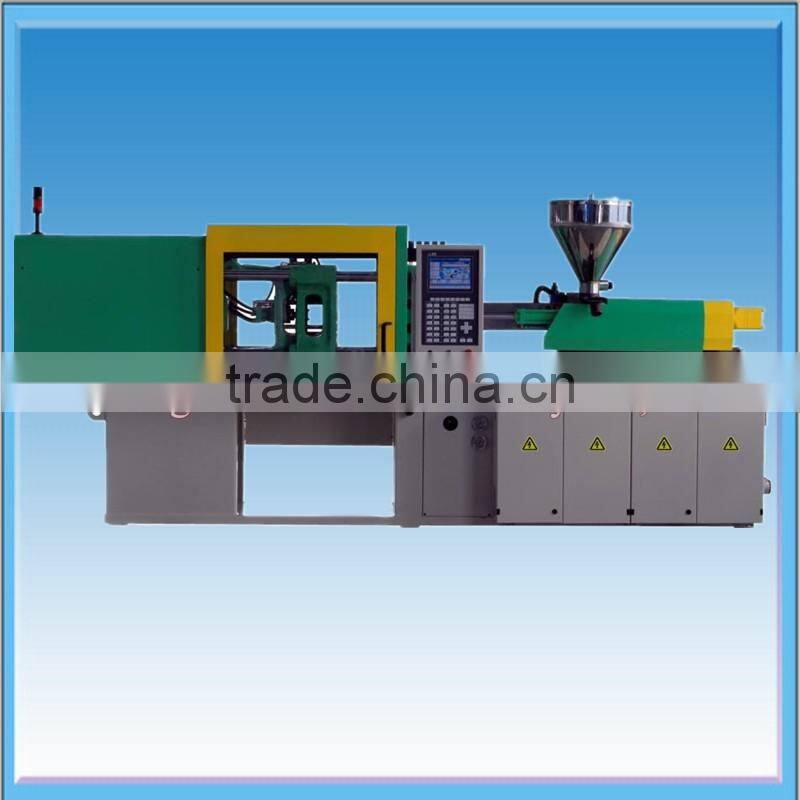

3.Pictures of China Supplier Plastic Injection Molding Machine
4.Contact information for China Supplier Plastic Injection Molding Machine
If you need further information, please contact us freely, we will do our best to cooperate with you.
