Specifications

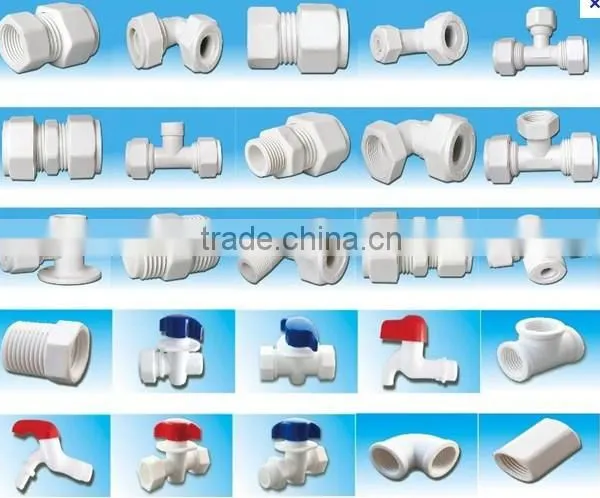

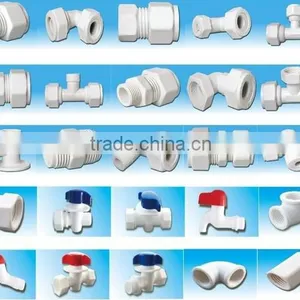

Fittings in different sizesOEM services
Energy saving,durable
One or multicavity
Stable,one year guarantee

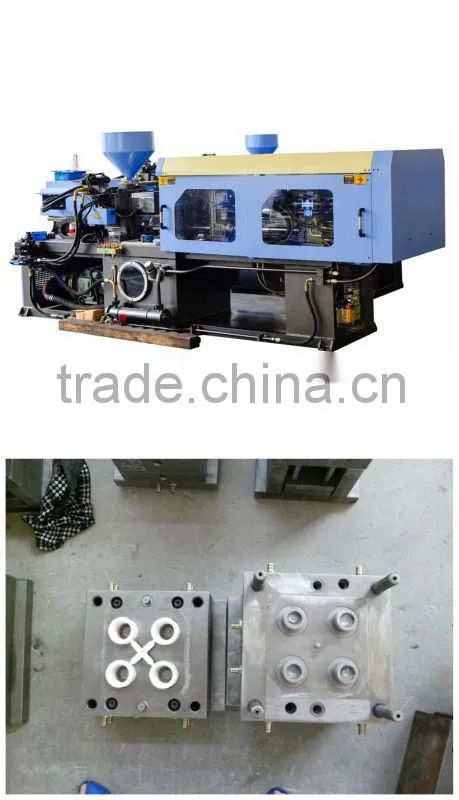

We build pipe fitting making machine for different production requirements, welcome contact us for more information and professional services.
Technical specification of LSF-308 pipe fitting making machine
|
INJECTION UNIT |
Unit |
LSF-308 |
|||
A |
B |
C |
|||
Screw Diameter |
Mm |
60 |
65 |
70 |
|
Screw L/D Ratio |
L/D |
21.6 |
20 |
18.6 |
|
Short Size |
Cm3 |
811 |
952 |
1104 |
|
Injection weight |
G |
738 |
866 |
1004 |
|
Injection Rate |
g/s |
177 |
206 |
239 |
|
Plasticizing capacity |
g/s |
41 |
49 |
57 |
|
Injection Pressure |
Mpa |
193 |
164 |
142 |
|
Screw Speed |
Rpm |
0-185 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
3080 |
||
Space Between Tie Bars |
mm |
630*630 |
|||
Toggle Stroke |
mm |
590 |
|||
Max. Mold Height |
mm |
630 |
|||
Min. Mold Height |
mm |
200 |
|||
Ejector Stroke |
mm |
160 |
|||
Ejector Tonnage |
KN |
62 |
|||
Ejector Number |
P |
9 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
30 |
|||
Heater Power |
Kw |
18 |
|||
Machine Dimension(L*W*H) |
M |
6.15*1.57*2 |
|||
Machine Weight |
T |
10.2 |
|||
Application and Features:
Applicable to injection molding of various kinds of thermoplastics, and have following features:
1. Adopting double-cylinder injection, with multilevel injection, pressure maintaining and anti-dribbling action, high injection pressure, and fast speed.
2. Low-speed high torque hydraulic motors drive screws directly, stepless speed changing is achieved.
3. Adopting five-pivot point double-elbow hydraulic machinery clamping devices, for energy saving and stable movement.
4. Adopting computer control, proportional electro-hydraulic drive, fail safe, high degree of automation.
5. The machine has an electrical safety duplicate protection device, which is safe and reliable to be operated.
6. Hydraulic components are designed to be outside the machine, which is easy for installation and maintenance.
