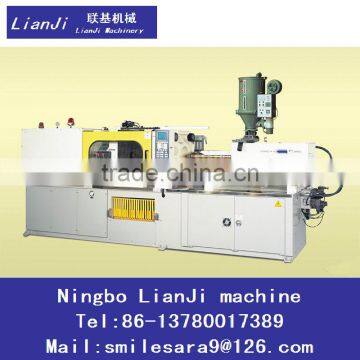

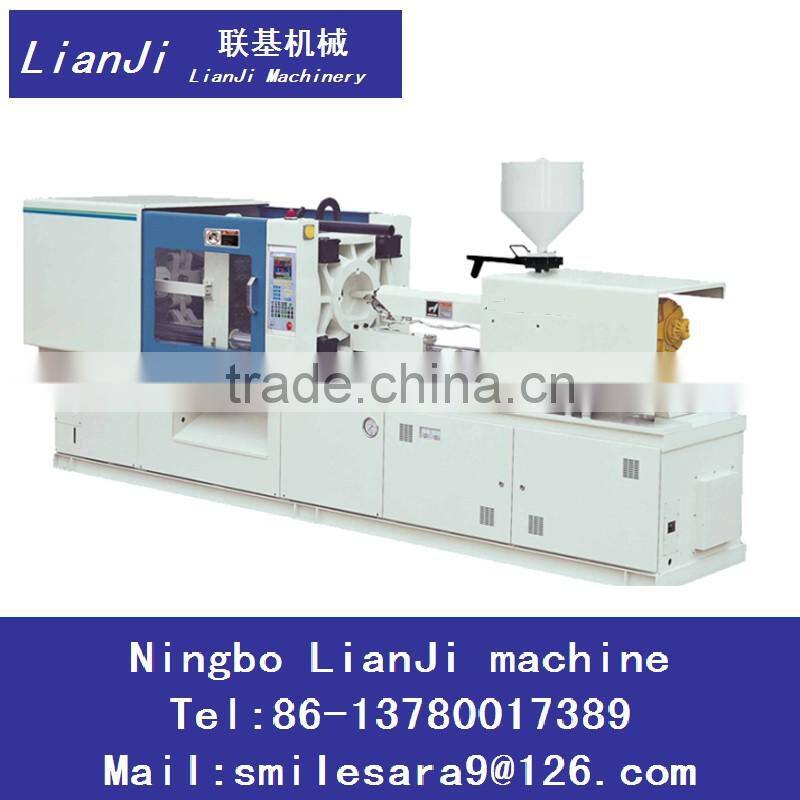

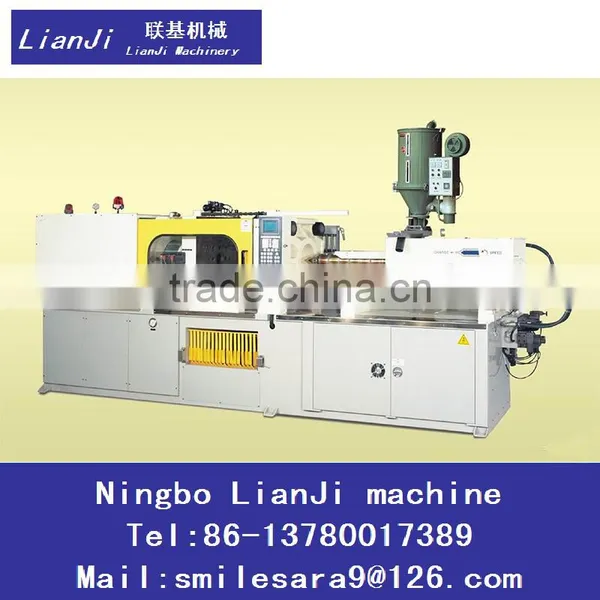

Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > 50T Plastic Injection Molding Machine Supplier
US$ 11,800 - 11,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hopper Dryer for Plastic Industry for Injection Molding MachineUS$ 1,000 - 2,000MOQ: 1 Set -
Plastic Blow Moulding MachinesUS$ 99 - 199MOQ: 1 Set
-
Plastic Extrusion Blow Molding MachineUS$ 99 - 199MOQ: 1 Set
-
Plastic Extrusion PanyUS$ 99 - 199MOQ: 1 Set
-
Plastic Extrusion Blow Molding MachineUS$ 1 - 199MOQ: 1 Set
Condition
New
Type
Other
Style
Horizontal
Brand Name
LIANJI
Model Number
RS-700
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
103-115g
Injection Rate
86-96g/s
Clamping Force
700KN
Opening Stroke
270mm
Power(W)
7.5KW
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
50T plastic injection machine
Parameters of machine
Parameter | Unit | parameter value (RS500) | ||
Screw diameter | mm | A | B | |
34 | 36 | |||
Screw L/D ratio | L/D | 18.8 | 17.7 | |
shot volumn (theoretical) | Cm3 | 113 | 127 | |
injection weight(PS) | g | 103 | 115 | |
plasticizing capacity | g/s | 11.6 | 13 | |
injection rate | g/s | 86 | 96 | |
injection pressure | Mpa | 171 | 153 | |
screw speed | rmp | 180 | ||
clamp force | KN | 700 | ||
open stroke | mm | 270 | ||
space between bars (W*H) | mm | 315*300 | ||
max mould height | mm | 320 | ||
min mould height | mm | 150 | ||
ejector stroke | mm | 80 | ||
ejector force | KN | 27 | ||
ejector number | PC | 1 | ||
mould align diameter | mm | 100 | ||
max pump pressure | Mpa | 16 | ||
pump motor power | KW | 7.5 | ||
heating power | KW | 5.1 | ||
machine dimension | m | 3.6*1.2*1.65B |
| |
machine weight | T | 2.2 |
| |
hopper capacity | Kg | 20 |
| |
oil tank capacity | L | 130 |
| |
