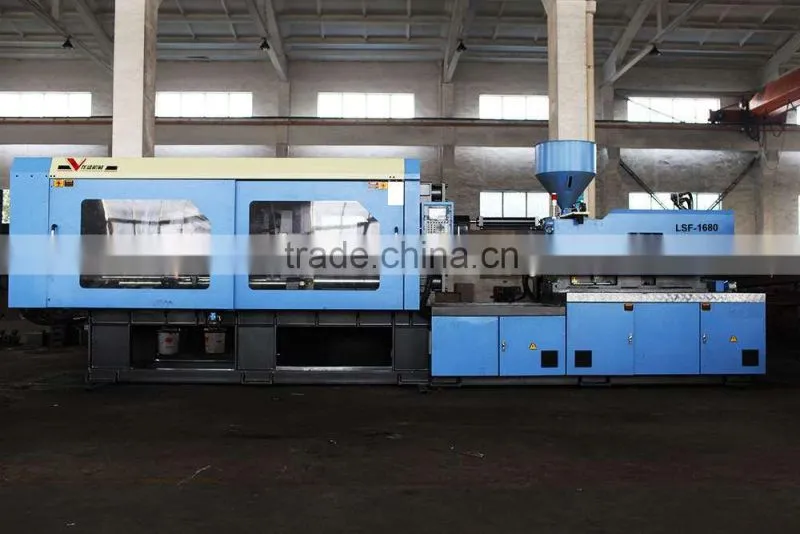

LSF1680 Chair Injection Machine

LSF1680 Chair Injection Machine thumbnail-1
LSF1680 Chair Injection Machine thumbnail-2
LSF1680 Chair Injection Machine thumbnail-3

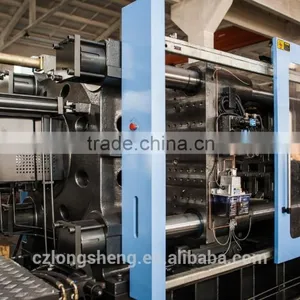

LSF1680 Chair Injection Machine thumbnail-4

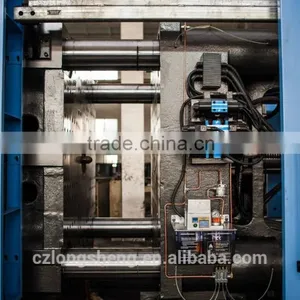

LSF1680 Chair Injection Machine thumbnail-5
LSF1680 Chair Injection Machine thumbnail-6
LSF1680 Chair Injection Machine photo-1
LSF1680 Chair Injection Machine photo-2
LSF1680 Chair Injection Machine photo-3
LSF1680 Chair Injection Machine photo-4

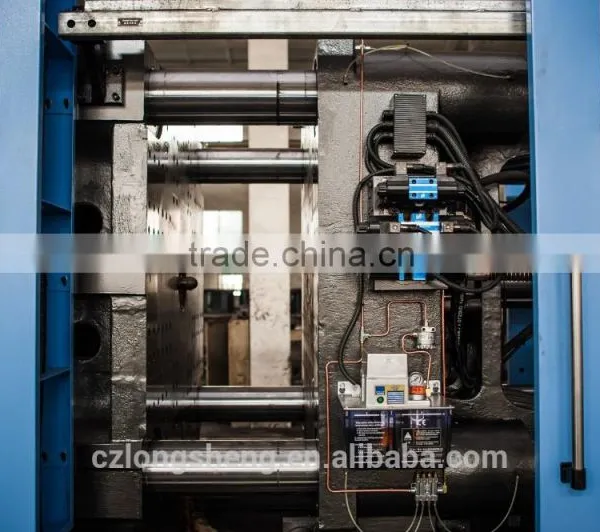

LSF1680 Chair Injection Machine photo-5

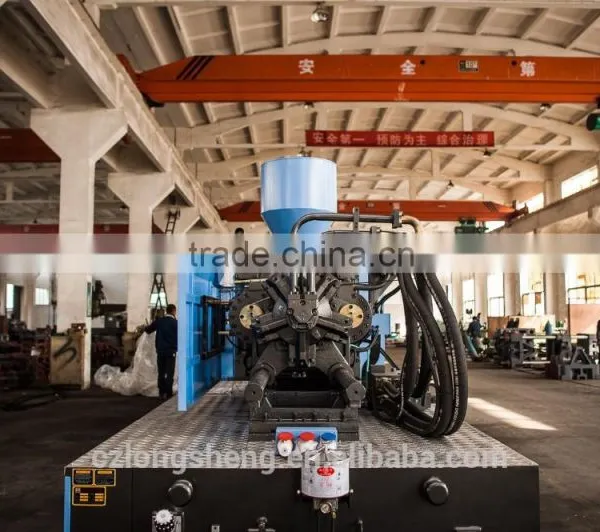

LSF1680 Chair Injection Machine photo-6
US$ 297,000 - 297,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, injection molding
Style:
Horizontal
Contact Supplier Request Quote Chat Now
Changzhou Longsheng Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, injection molding
Style Horizontal
Brand Name Longsheng
Model Number LSF1680
Place of Origin Jiangsu, China
Plastic Type Other, thermoplastic & thermosetting
Automatic Yes
Injection Weight 9398g
Injection Rate 1225g/s
Clamping Force 16800KN
Opening Stroke 1560mm
Power(W) 92kw
Certification CE ISO9001,SGS
After-sales Service Provided Engineers available to service machinery overseas





Product Description

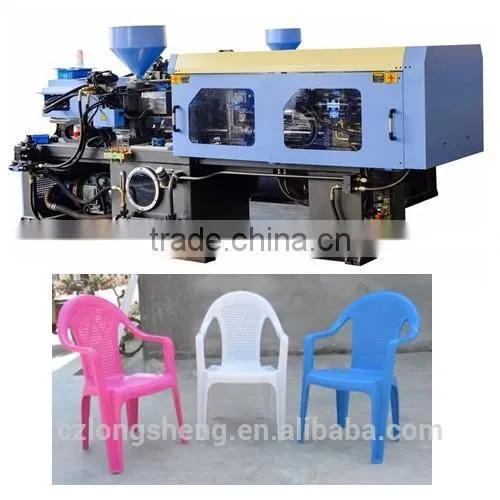

LSF1680  chair injection machine

suitable for all kinds of chairs  and processing and injection of PE, PVC, PP, PS, ABS, PC, Nylon(PA), PU, PET, PMMA(ACRYLIC), POM, LDPE, HDPE, PPR and all other thermoplastic raw material. clamping force of  LONGSHENG injection moulding machine is from 68 ton to 3200ton.









INJECTION UNIT



Unit

LSF-1680

A

B

C

Screw Diameter

Mm

130

140

150

Screw L/D Ratio

L/D

24

22.3

20.8

Short Size

Cm3

8270

9590

11000

Injection weight

G

9105

9398

10780

Injection Rate

g/s

1052

1225

1380

Plasticizing capacity

g/s

150

173

192

Injection Pressure

Mpa

166

145

128

Screw Speed

Rpm

0-85









CLAMPING UNIT

Clamp Force

KN

16800

Space Between Tie Bars

mm

1500X1400

Toggle Stroke

mm

1560

Max. Mold Height

mm

1500

Min. Mold Height

mm

700

Ejector Stroke

mm

400

Ejector Tonnage

KN

400

Ejector Number

P

29





OTHERS

Max. pump Pressure

Mpa

16

Pump motor powder

Kw

45+45+45

Heater Power

Kw

92

Machine Dimension(L*W*H)

M

14.5X3.5X4.23

Oil Tank Capacity

L

2800

Machine Weight

T

118



 LSF1680 chair injection machine

Technical specification of other  chair injection machines





Model No Clamp force (KN) Injection weight (g) Tie bar sizes   (mm) Toggle stroke (mm) Mold sizes   (mm)
LSF-68 680 60-107 310*310 285 100-330
LSF-98 980 140-188 360*360 330 150-400
LSF-128 1280 191-267 410*380 380 150-430
LSF-148 1480 201-282 410*410 380 150-460
LSF-168 1680 274-428 460*460 450 180-520
LSF-208 2080 347-518 510*510 500 200-530
LSF-258 2580 507-730 560*530 505 200-560
LSF-308 3080 830-1136 630*630 590 200-630
LSF-398 3980 1260-1646 720*720 700 280-760
LSF-528 5280 1920-2430 810*810 800 350-850
LSF-628 62800 2270-2903 880*835 840 330-880
LSF-718 71800 2560-3826 910*910 930 380-950
LSF-880 88000 4000-5525 1000*1000 1000 420-1120
LSF-1180 11800 4203-5871 1150*1100 1200 500-1200
LSF-1380 13800 5969-8125 1300*1260 1260 530-1280
LSF-1680 16800 7520-10015 1500*1350 1520 700-1500
LSF-2200 22000 11349 1650*1650 1650 800-1620
LSF-2680 2680 23678 1800*1720 1720 800-1800

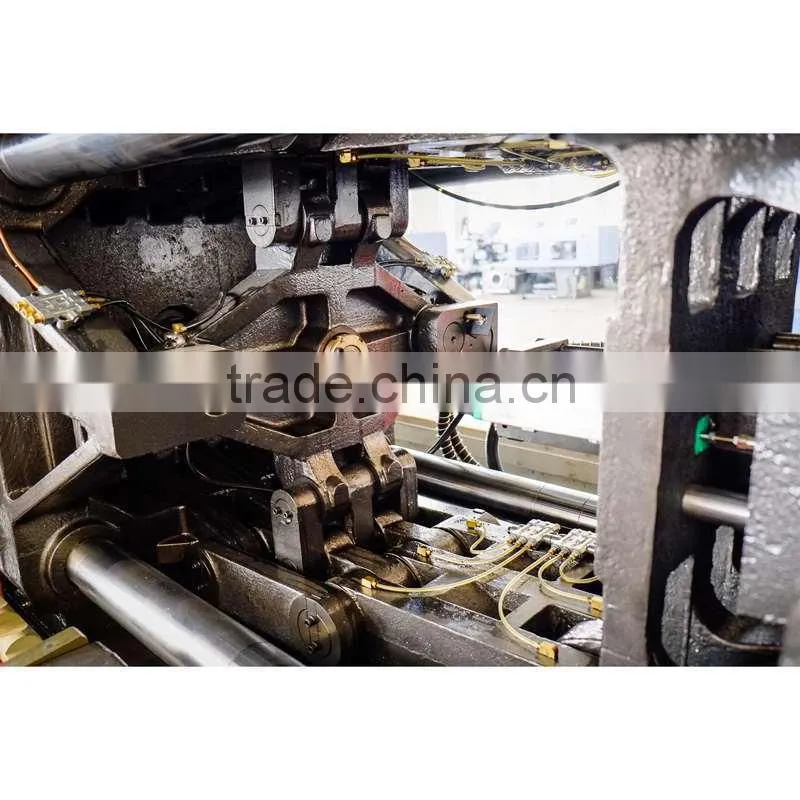

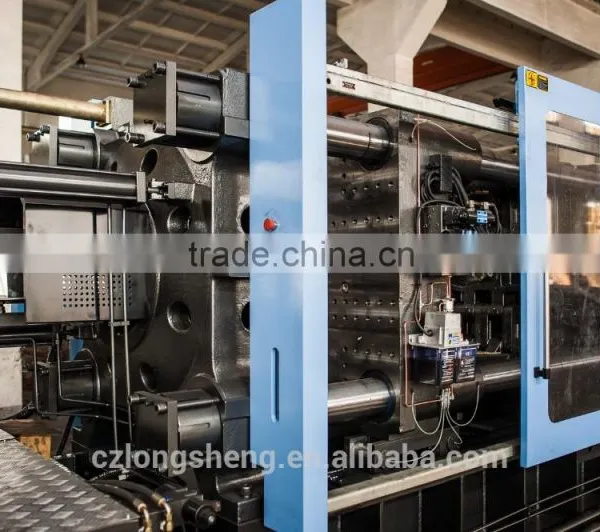

Clamping Unit:
1. Optimized Platen Design with high rigidity and enlarged space between tie bars
2. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3. New ejection system design with longer ejection stroke, bigger space and better rigidity
4. Hydraulic drivien gear-type mold height adjustion mechanism
5. Relocation of mechanical safety interlock for easier operation
6. linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.

LSF1680 chair injection machineLSF1680 chair injection machine

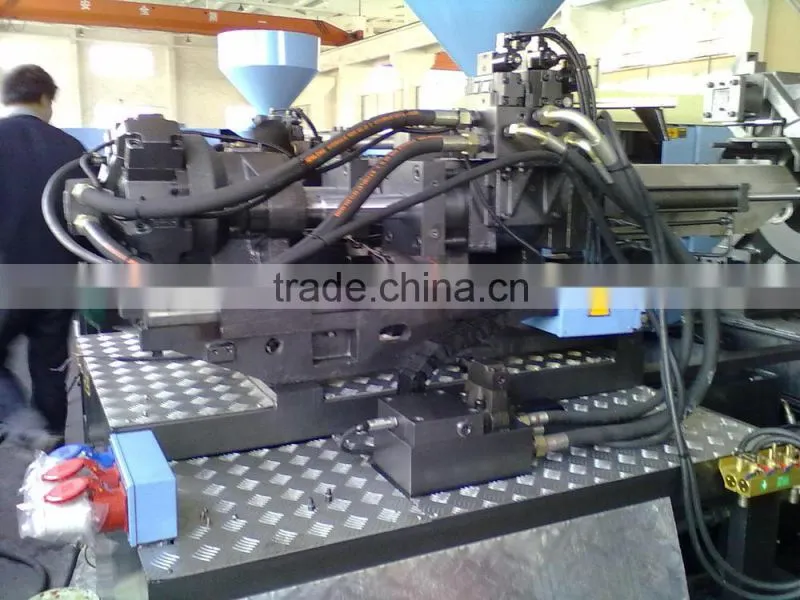

Injection Unit:
1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2. High Speed & Pressure injection structure can improve the injection speed
3. Twin nozzle cylinder ensures more even & stable structure
4. Specilized screw barrel design for various appliance

LSF1680 chair injection machineLSF1680 chair injection machineLSF1680 chair injection machineLSF1680 chair injection machineLSF1680 chair injection machine LSF1680 chair injection machine


Hydraulic System:
1. The double proportional compound valve control system pressure & flow, highly sensitive & stable
2. Imported high quality Pump, low in noise, long in lifespan & stable in performance
3. World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4. The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5. High performance hydraulic valve, less failure, fast switch, convenient maintenance
6. Low pressure mold protect system, which is more suitable for the precise mould
7. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

LSF1680 chair injection machine

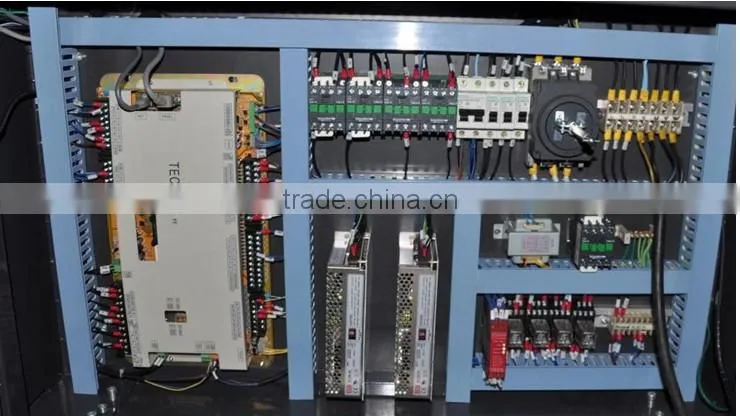

Electrical System:
1. Control by double CPU, the system with high speed, noise-immunity, fan-less and lower power consumption, independent control structure improve the stablity of control
2. 8.4" display screen with resolution 800*600, user friendly screen & optional choose of language
3. Equiped with USB(2.0) port & ethernet(100-base T) ports
4. 32 Points input & output, entendable and trouble spot can be replaced easily
5. Linder transducer's resolution is 1/65535, more precise in control
6. 120 technological parameters access can be stored & uploaded with an ordinary USB drives
7. Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, dynamic warningis exhibited, all these make the operation more convenient

 LSF1680 chair injection machine.

Servo Controller Part:
1. High Precise Control
The servo system can control the machine's pressure, speed & location precisely, make sure that the error of  accurate repeatability precision for the shot measurement is <0.3%
2. High sensitive response
Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, LSF series is more faster in speed with shorter cycle time and high efficient in production
3. Low noise
Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop
4. Energy Saving
Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 30-80% energy, and achieve first-class energy efficency
5. Water cooling saving
The system condition prevent high pressure uploading without any power output, leads to the water cooling saving

LSF1680 chair injection machine



Packaging & Shipping



Packaging Detail:

Plastic film, wood pad,

Delivery Detail:

30 days (it is subject to confirmation.)

 LSF1680 chair injection machine



Our Services



Service for installation, training and dispatching the technical
- if user require dispatching our technical for the new machine installation or operation training, the user should afford the fee for our engineer’s round-trip ticket ,board and lodging during installation ,and salary(100USD/day)

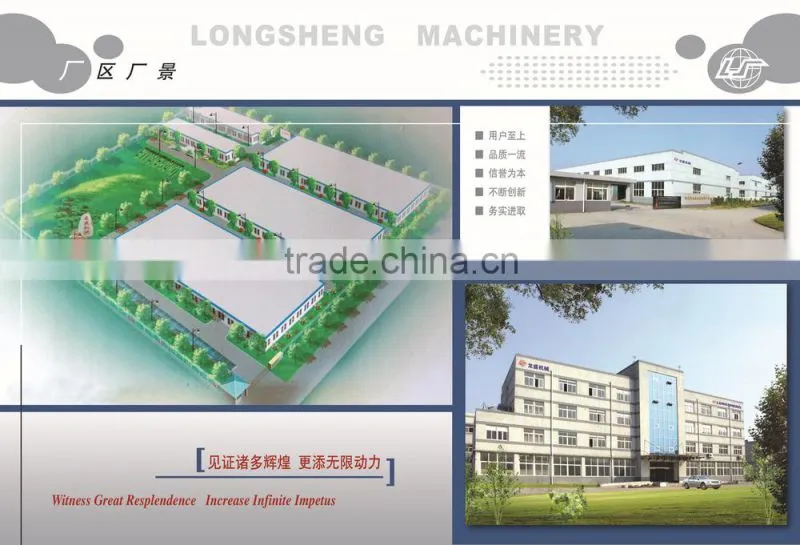

Company Information



 As a national high-tech enterprise Since 2001 year , LONGSHENG MACHINERY has dozens of patents, for example, “ LSF1680  chair injection machine ”,the company also has national key new products, the National Science and Technology. Achievement Program, and the National Ministry of Science and Enterprise Technology Innovation Fund Projects.

Besides the traditional link-type (toggle) injection molding machines of various specifications, LONGSHENG MACHINERY also has the most advanced full hydraulic two platen plastic injection molding machine, and formed a medical products, thermosetting injection molding , bi-color plastic,special machines and other system perform solutions.

What is the difference with other injection molding machine factories is that LONGSHENG MACHINERY has years of research and production experience of two platen injection molding machine, the innovations used in the field of injection molding machines, to achieve industrial applications.

The full hydraulic two platen plastic injection molding machine has the advantage that conventional rod machine do not have. Not only in the technical features, more reliability and convenience in embody the value of full hydraulic two platen plastic injection molding machines. The applications of hydraulic injection molding machine is the systemic breakthrough of the application of the traditional injection molding machine. In terms of technology, hydraulic application of the two platen structure, breaks the bottlenecks in the application of traditional mechanical structure of injection molding ,which enables customers to design more targeted application of more energy—efficient injection molding products.

For meeting your increasing demand,and insuring our users own more advantages in drastic competition, we will always struggle on the road and make more contributions for our clients,employees and society.
