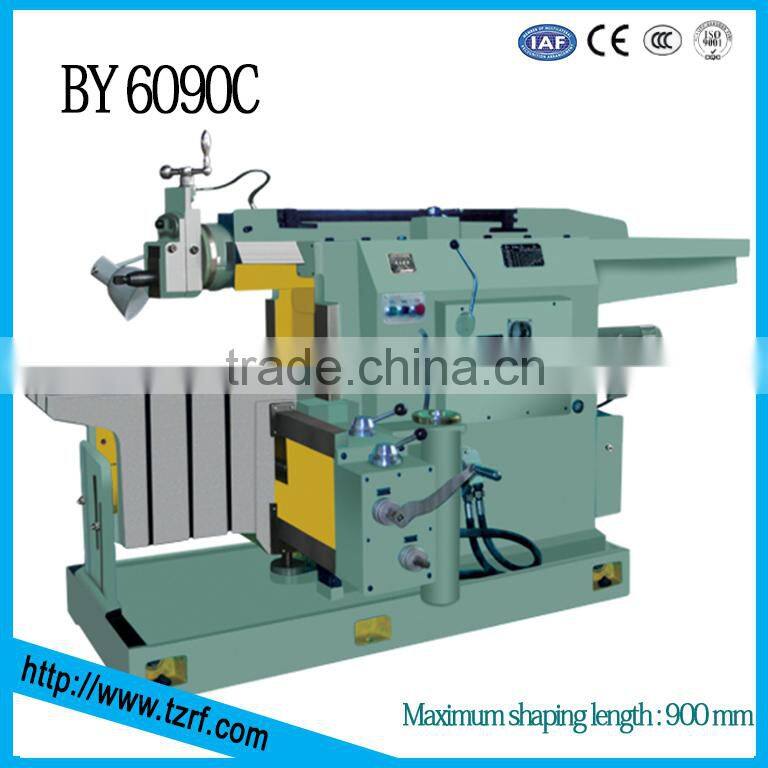

Hydraulic Shaper Machine BY6090C

Name: Hydraulic Shaper Machine BY6090C
Brand: HELI
SKU: 103163707
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number BY6090C

Voltage 240V/380V/440V

Rated Power 4 kw

Dimension(L*W*H) 2670x1350x1600mm

Weight 2700KG

Certification CE ISO9001

Warranty 12 months

After-sales Service Provided No overseas service provided

The BY6090C SHAPER

The Maximum shaping length 900mm

Model		BY6090C
Maximum cutting length(mm)		900
Maximum table horizontal travel(mm)		600
Maximum distance from ram bottom to table surface(mm)		450
Maximum table vertical travel(mm)		400
Dimensions of table top surface(L×W)(mm)		900×400
Travel of tool head(mm)		150
Swivel of tool head(°)		±60°
Maximum size of tool shank(W×T)(mm)		22×30
Number of ram strokes per minute(mm)		0.25-1.8
Range of table power feed		Stepless
ing force(kg)		1500
Max loading weight on worktable(kg)		200
Speed of rapid travel of table	Horizontal	1.57
	Vertical	0.35
width of the T-slot for center positioning(mm)		18
Power of the main motor(kw)		4
Power of the motor for rapid travel of table(kw)		0.75
N.W/G.W(kg)		2700/2850
Overall dimensions(L×W×H)(mm)		2670×1350×1600
