Specifications

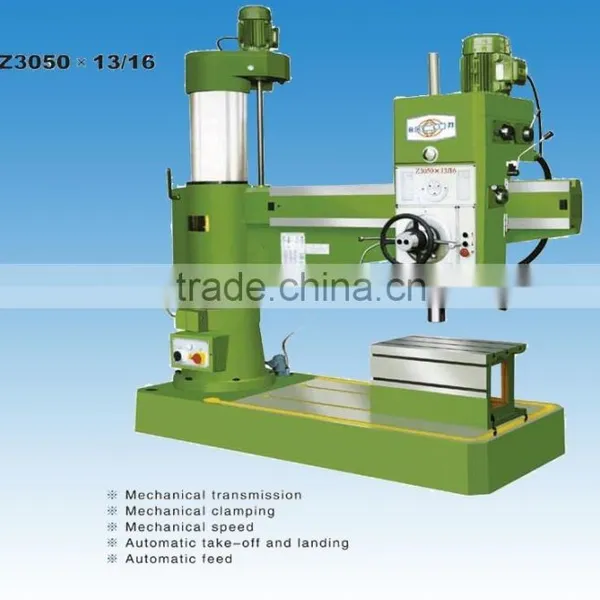

1.Mechanical transmission2.Mechanical speed change
3.Automatic lifting
4.Automatic feed
Z3050 radial drilling machine
Z3050 type rocker drilling machine, used in large and medium sized parts in the drilling, reaming, plane and tapping screw, etc .
The main features:
1.Adopt the hydraulic primary variable speed institutions should save assistant time.
2.Spindle reversing, stopping (braking), variable speeding, neutral position, single handle control, convenient operation.
3.Spindle box, rocker arm, internal and external column adopt tetra pod clamping institutions by hydraulic driving, clamping reliable.
4.Rocker arm guide rail,column round the surface, spindle,spindle sleeve,internal and external column rotary groove adopt quenching process, keep the accuracy stability of the machine tool long term, prolong the life.
5.Have a perfect safe protection device and the column protection.
Z3050x13/16 main technical data
SPECIFICATION |
UNIT |
Z3050 x 13/16 |
|
Max. drilling diameter |
mm |
Cast iron 50/steel parts 45 |
|
Distance between spindle nose and working surface of base plate |
mm |
285-1250 |
|
Distance between spindle centerline and column generatrix |
mm |
360-1300 |
|
360-1600 | |||
Spindle travel |
mm |
230 |
|
Spindle taper(Morse No.) |
--- |
5 |
|
Range of spindle speeds |
r.p.m |
78-1100 |
|
Number of spindle speeds |
--- |
6 |
|
Range of spindle feeds |
mm/r |
0.10-0.56 |
|
Number of spindle feeds |
--- |
3 |
|
Swivel angle of the rocker |
° |
360 |
|
Main motor power |
kw |
4 |
|
Motor power for up&down |
kw |
1.5 |
|
N.W/G.W |
kg |
2400/2600 |
2800/3000 |
Overall dimensions(L*W*H) |
mm |
1950*810*2450 |
|
|
2170*810*2450
| |||
After-sale Service:
1.Technical support online service provided.
2.Technical files service provided.
3.On-site training service provided.
4.Spare parts replacement and repair service provided.
5.All of the questions will be replied within 24 hours.
