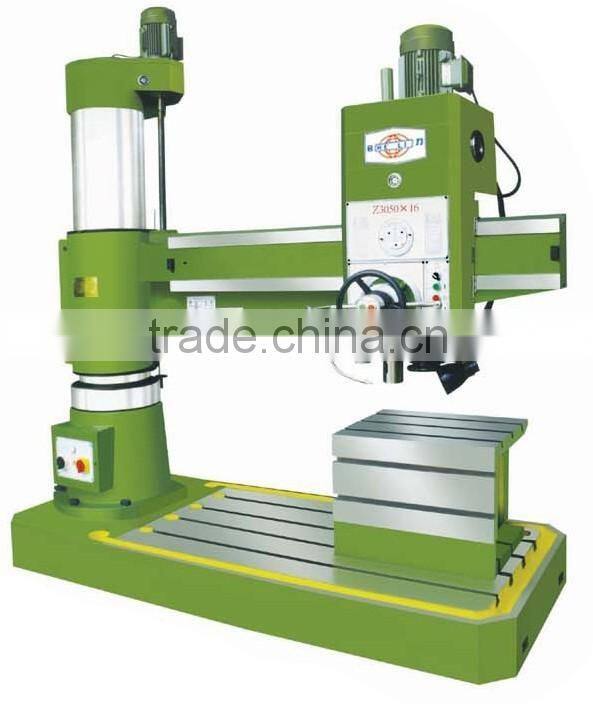

Help CenterEconomic Hydraulic Radial Drilling Machine Z3050X16 (MANUFACTURER)
Related Products
-
HOT!!Z3040X10/13 Radial Drilling Machine (ONE YEAR GUARANTEE)NegotiableMOQ: 1 Set -
Hot Export and Best Price Z3035X10 Radial Drilling Machine (FACTORY)NegotiableMOQ: 1 Set
-
High Precision Z3032X10 Radial Drilling Machine For Metal ProcessingNegotiableMOQ: 1 Set
-
Radial Drill Machine Z3063x20 With 2000mm Length ARMUS$ 11,000 - 12,000MOQ: 1 Set
-
Radial Drilling Machine Z3063x20US$ 11,000 - 12,000MOQ: 1 Set
Specifications
1.widely used in workshopchanical transimission/ clamping
3. Automatic take-off and landing
4.Automatic feeding
Z3050x16 main technical data
SPECIFICATION |
UNIT |
Z3050 x 16 |
Max. drilling diameter |
mm |
Cast iron 50/steel parts 45 |
Distance between spindle nose and working surface of base plate |
mm |
320-1220 |
Distance between spindle centerline and column generatrix |
mm |
360-1300 |
360-1600 | ||
Spindle travel |
mm |
315 |
Spindle taper(Morse No.) |
--- |
5 |
Range of spindle speeds |
r.p.m |
25-2000 |
Number of spindle speeds |
--- |
16 |
Range of spindle feeds |
mm/r |
0.04-3.2 |
Number of spindle feeds |
--- |
16 |
Swivel angle of the rocker |
° |
360 |
Main motor power |
kw |
4 |
Motor power for up&down |
kw |
1.5 |
Net weight |
kg |
3500 |
Overall dimensions(L*W*H) |
mm |
2500*1070*2840
|
Main features of Z3050X16 Radial drilling machine :
1. Gather mechanical-electrical-hydraulic functions, use extensively.
2. With wide range of speed and feed, with manual,power and fine feeds.
3. The feed of machines are very easily engaged and disengaged at any time.
4. With safe and reliable feed safety machine, all parts easy operation and change.
5. All controls centralized on the head stock easy operation and change.
6. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
7. Main parts are made by machine center which import form KIA with high precision and efficiency,ensuring reliability and high quality.
8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
