Help CenterHigh Precision Z3032X10 Radial Drilling Machine For Metal Processing
Related Products
-
Radial Drill Machine Z3063x20 With 2000mm Length ARMUS$ 11,000 - 12,000MOQ: 1 Set -
Radial Drilling Machine Z3063x20US$ 11,000 - 12,000MOQ: 1 Set
-
Hydraulic Z3063x20 Radial Drilling MachineUS$ 11,000 - 12,000MOQ: 1 Set
-
(63 Mm) Hydraulic Z3063x20 Radial Drilling MachineUS$ 11,000 - 12,000MOQ: 1 Set
-
63mm Radial Drilling Machine Z3063X2000MMUS$ 11,000 - 12,000MOQ: 1 Set
Specifications
1.Mechanical transmission2.Mechanical speed change
3.Automatic lifting
4.Automatic feed
Main Features

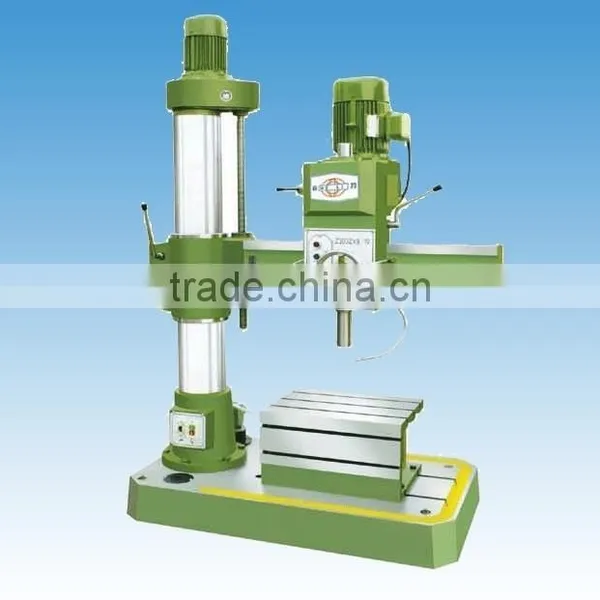

The radial drilling machine model Z3032 is universal machine, capable of drilling, counterboring, boring, reaming, spot-facing tapping and other similar operations.
It's widely used in machine manufacturing industry for processing small and medium sized machine parts and also suitable for being used in repair shops.
Z3032x9/10 main technical data
SPECIFICATION |
UNIT |
Z3032 x 9/10 |
|
Max. drilling diameter |
mm |
Cast iron32/steel parts27 |
|
Distance between spindle centerline and column generatrix |
mm |
260-680/780 |
|
Distance spindle nose and working surface of base plate |
mm |
220-980/1080 |
|
Spindle travel |
mm |
120/160 |
|
Range of spindle speeds |
r. p. m |
108,162,262,398,665,1000 |
|
Spindle number of feeds |
-- |
6 steps |
|
Overall dimensions((L*W*H) |
mm |
1420*650*2060 |
|
Main motor power |
kw |
1.5/2.2 |
|
N. W/G. W |
kg |
800/900 |
950/1200 |
After-sale Service:
1.Technical support online service provided.
2.Technical files service provided.
3.On-site training service provided.
4.Spare parts replacement and repair service provided.
5.All of the questions will be replied within 24 hours.
