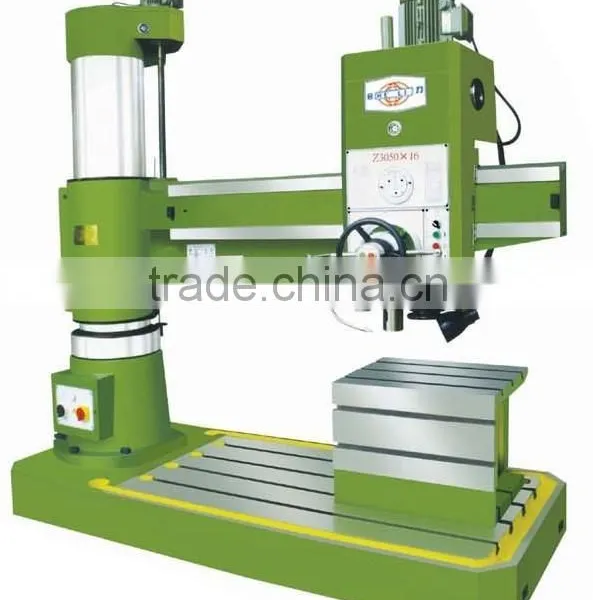

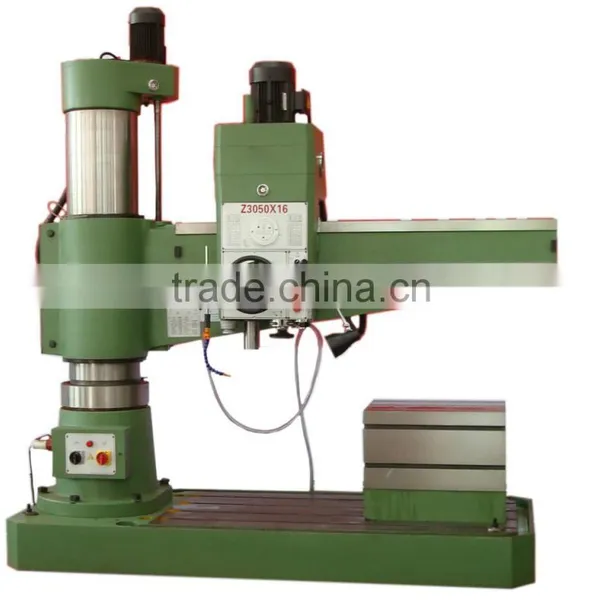

Radial Drilling Machine Z3050X16

Name: Radial Drilling Machine Z3050X16
Brand: HELI
SKU: 103163095
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number Z3050X16

Voltage 380V

Rated Power 4KW

Dimension(L*W*H) 2500*1070*2840MM

Weight 3500KG

Certification CE

Warranty 12 months

After-sales Service Provided Overseas service center available

Specifications

1.Hydraulic clamping
2.Hydraulic speed change
3.Hydraulic pre-selection
4.Electrical machinery double insurance

Main features of Z3050X16 Radial drilling machine :

1. Gather mechanical-electrical-hydraulic functions, use extensively.

2. With wide range of speed and feed, with manual,power and fine feeds.

3. The feed of machines are very easily engaged and disengaged at any time.

4. With safe and reliable feed safety machine, all parts easy operation and change.

5. All controls centralized on the head stock easy operation and change.

6. Clamping for assemblies and speed change of spindle achieved by hydraulic power.

7. Main parts are made by machine center which import form KIA with high precision and efficiency,ensuring reliability and high quality.

8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.

9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.

10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

Z3050x16 main technical data

SPECIFICATION	UNIT	Z3050 x 16
Max. drilling diameter	mm	Cast iron 50/steel parts 45
Distance between spindle nose and working surface of base plate	mm	320-1220
Distance between spindle centerline and column generatrix	mm	360-1300
Distance between spindle centerline and column generatrix	mm	360-1600
Spindle travel	mm	315
Spindle taper(Morse No.)	---	5
Range of spindle speeds	r.p.m	25-2000
Number of spindle speeds	---	16
Range of spindle feeds	mm/r	0.04-3.2
Number of spindle feeds	---	16
Swivel angle of the rocker	°	360
Main motor power	kw	4
Motor power for up&down	kw	1.5
Net weight	kg	3500
Overall dimensions(LWH)	mm	250010702840
