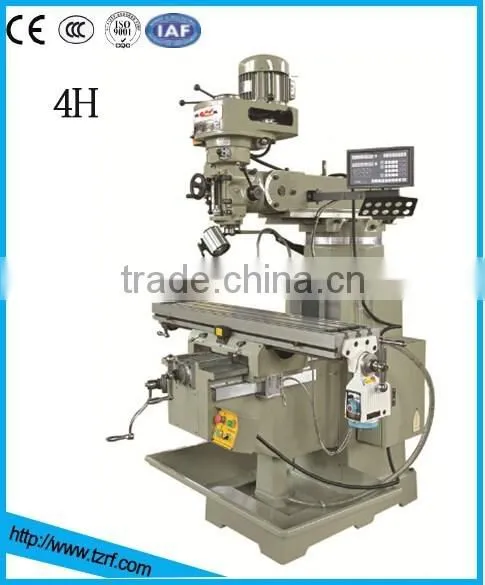

Turret Milling Machine 4H

Name: Turret Milling Machine 4H
Brand: HELI
SKU: 103162685

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Contact Supplier Request Quote Chat Now

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/SHANGHAI/TIANJIN/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number 4H

Type Vertical

CNC or Not Normal

Voltage 220V/240V/380V/440V

Power(W) 2.2kw

Dimension(L*W*H) 1600X 1700X2250mm

Weight 1450 KG

Certification CE ISO9001

Warranty 12 months

After-sales Service Provided No overseas service provided

This machine is widely used for flat maching along with any tilt angle surface,it can work for milling slot,drilling,fraising,boring.The milling head can turn right and light ±90°,it can rotate with high speed and with wide speed range,it can carry out power feed with overload safe protective device.The spindle quill and machine guideway past special treatment,it has perfect appearance and excellent design structure,it is one ideal metal cutting machine.It can also install power feed and DRO depending on customer requirements.

Main specification	4H
Spindle taper	R8
Spindle travel	127mm
Table size	1270 x 254 mm
Table travel(X,Y,Z)	750 (manual 800)x 400 x 400 mm
Distance from spindle nose to table surface	0-460 mm
Distance from spindle axis to column guideway surface	170-520 mm
Spindle speed range	16steps 66~4540 r.p.m
Max. Loading weight	350kg
Arm rotation	360°
Main motor power	2.2 KW (two speed)
Coolant pump power	90 W
Tilt angle of vertical milling head	±90°(left and right) ±45°(front and rear)
Overall dimension	1600×1700×2250mm
N.W/G.W	1450/1560 kg
