Specifications
1.Easy to replace hammer die,fit to forge small workpiece2.With stable function and durable frame
C41-6KG single main technical data
SPECIFICATION |
UNIT |
C41-6 kg single |
|
Falling part weight |
Kg |
6 |
|
Max.hit energy |
Kj |
0.066 |
|
Hit number |
min -1 |
248 |
|
Distance from hammer guide bottom surface to bottom hammer die |
mm |
175 |
|
Distance from hammer ram centerline to hammer frame |
mm |
100 |
|
|

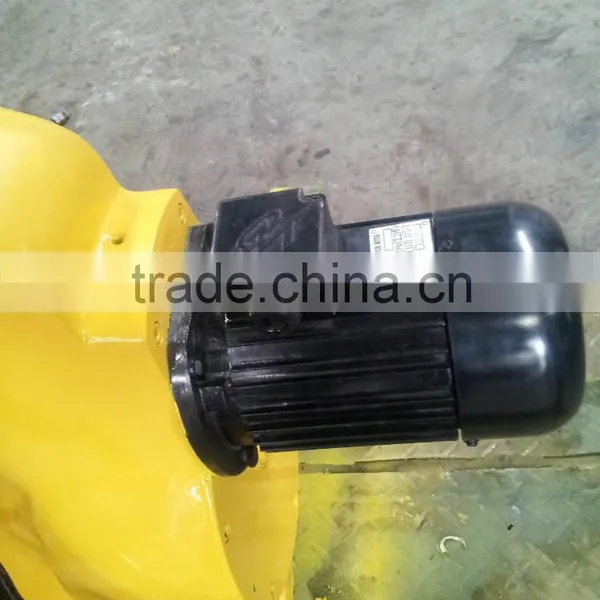

Motor |
Motor power |
kw |
0.75 |
Motor speed |
r.p.m |
1440 |
|
Overall dimensions |
mm |
480x340x670 |
|
Total weight |
Kg |
126 |
|

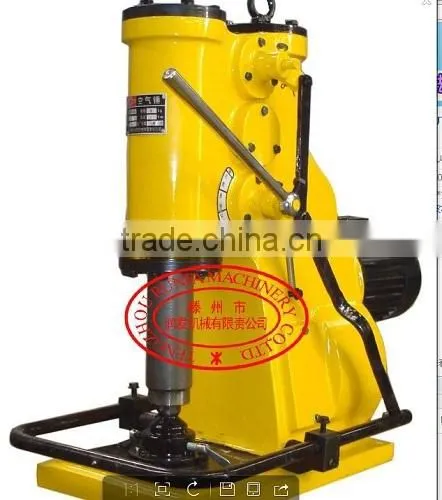

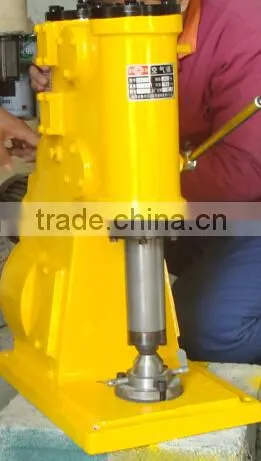

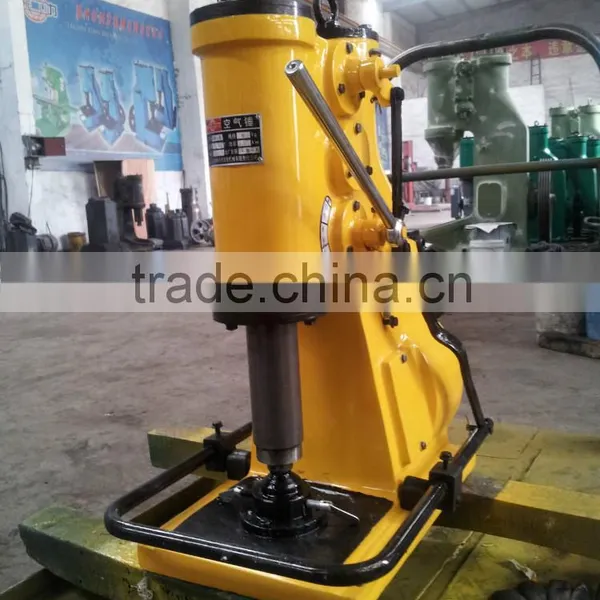

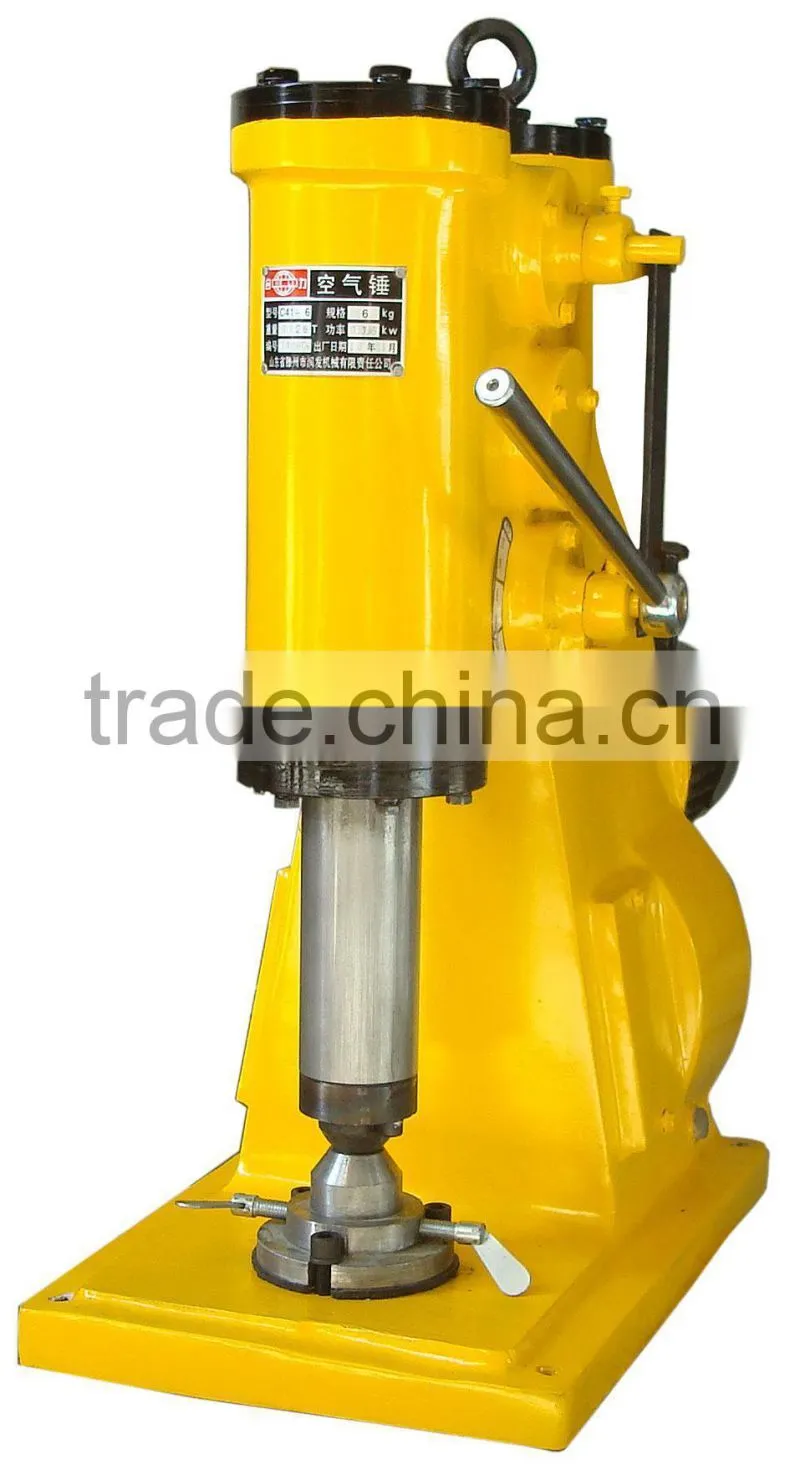

Tengzhou Runfa Machinery company independently design and development of the C41-6KG miniature air hammer,it is the world’s first origination to fill the gaps in the global micro air hammer.Using motor and frame body assemble together structure,
the unique and novel design of the forging hammer with small body is easy to operate.Transmission is drove by gear transmission.

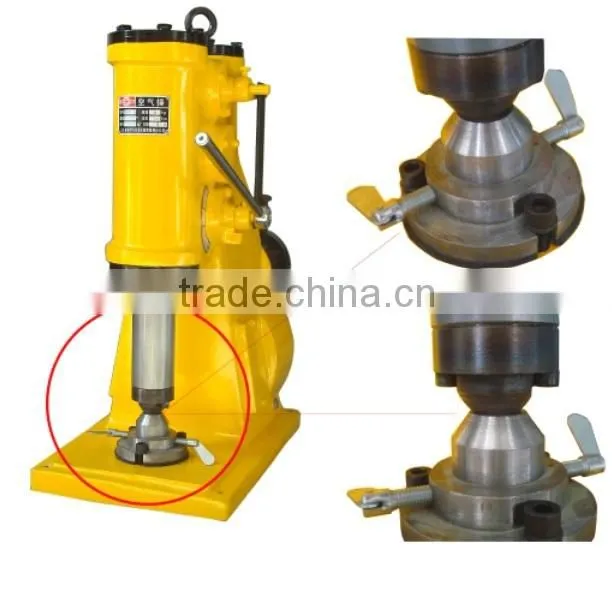

Especially the unique hammer holder design,it can be used for making all kinds of micro-products,particularly for golden and silver jewelry processing is very flexible.
Since its less noise,durable and stable function make it to be one ideal helper to become wealthy for craftsman.
Quality Measure
Quality assurance system
Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.
Machine Quality
Machine design and manufacture performs occupation standard and comply with the requirement of quality, specification and characters herein this technical regulation.
Guarantee period start from the day the machine acceptance report signing. Period would be one year.
Technical documents which supplier in charge of furnish and handed to use should be consist with technical regulation, and throughout technical, technics, produce, installation and setting
After-sale-service
Manufacturer(my company) will in charge of the technical service for the whole using life of the machine.
If you want to know more about the machine ,pls. contact with us freely.
