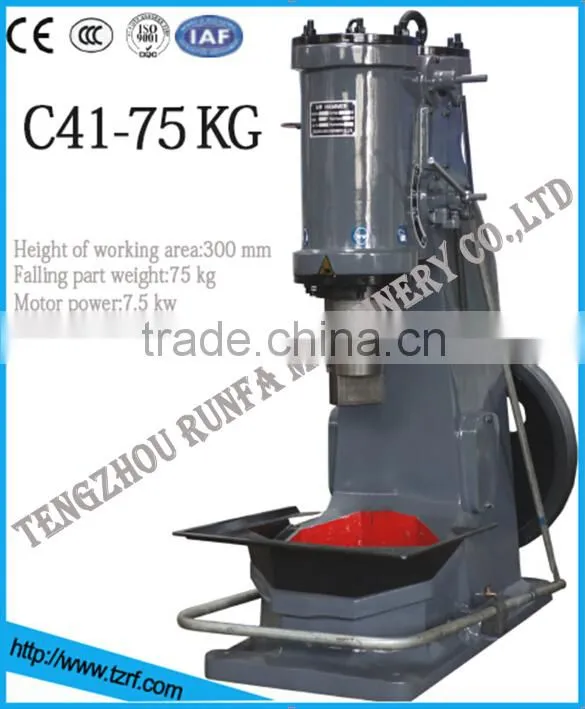

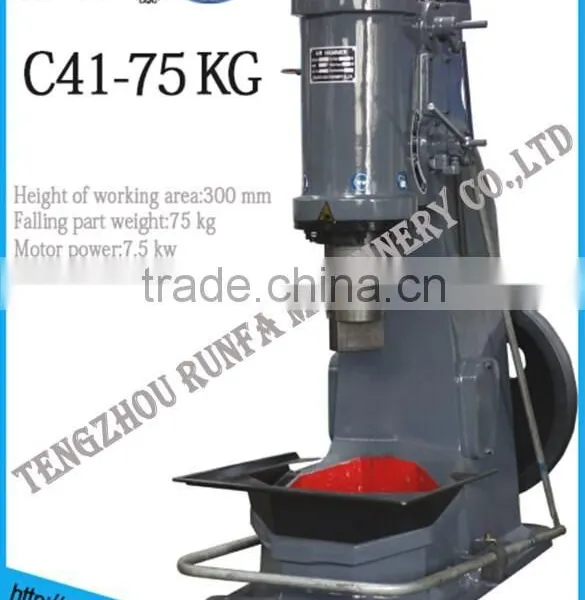

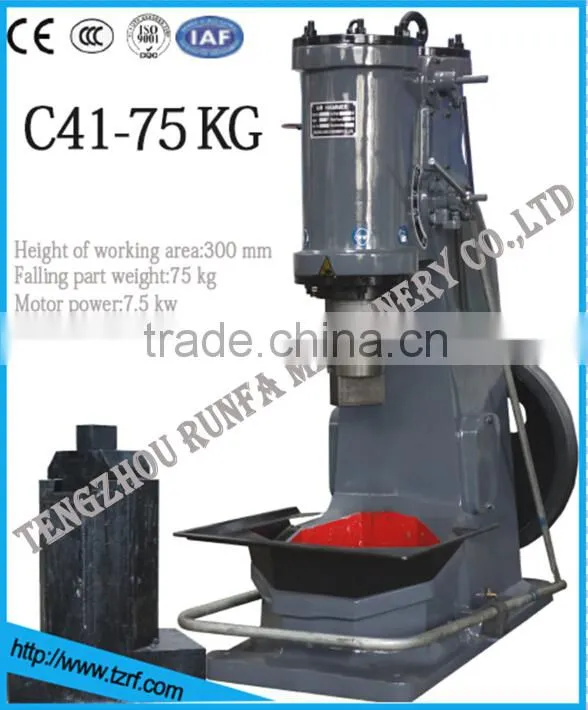

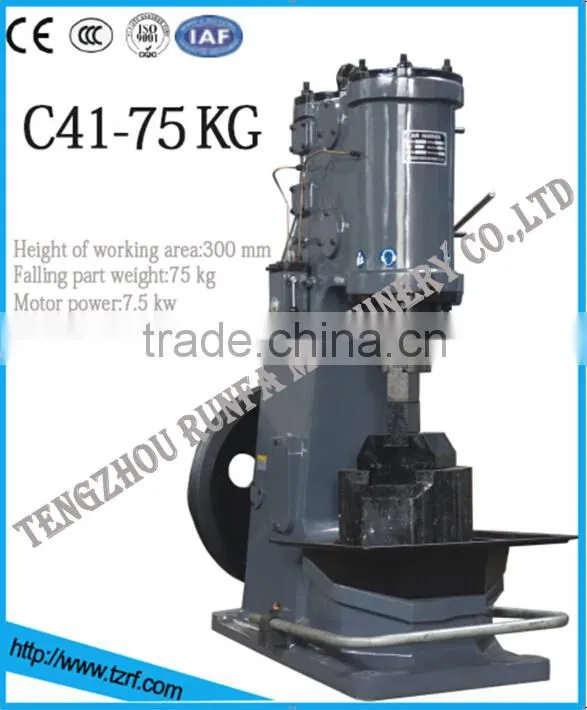

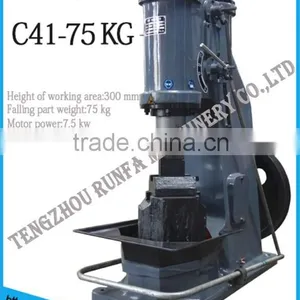

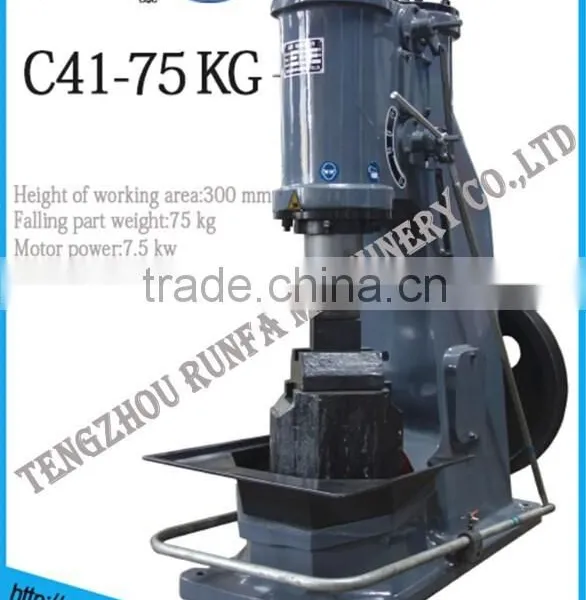

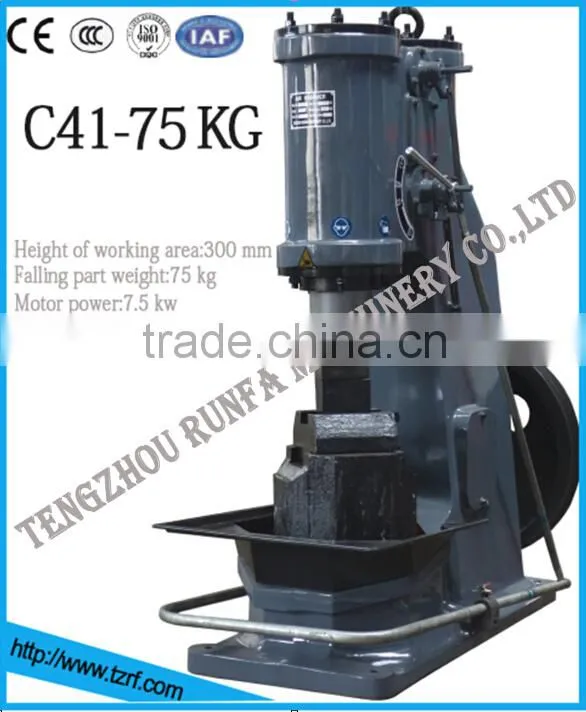

AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER

AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER thumbnail-1
AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER thumbnail-2
AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER thumbnail-3

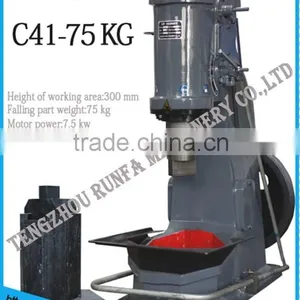

AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER thumbnail-4
AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER photo-1

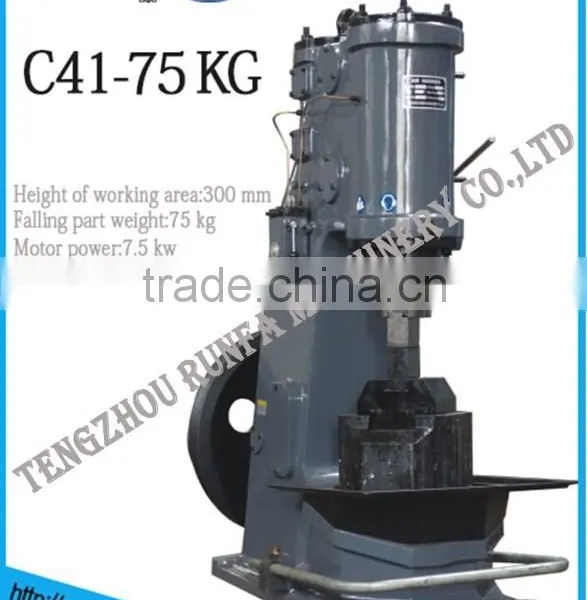

AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER photo-2
AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER photo-3

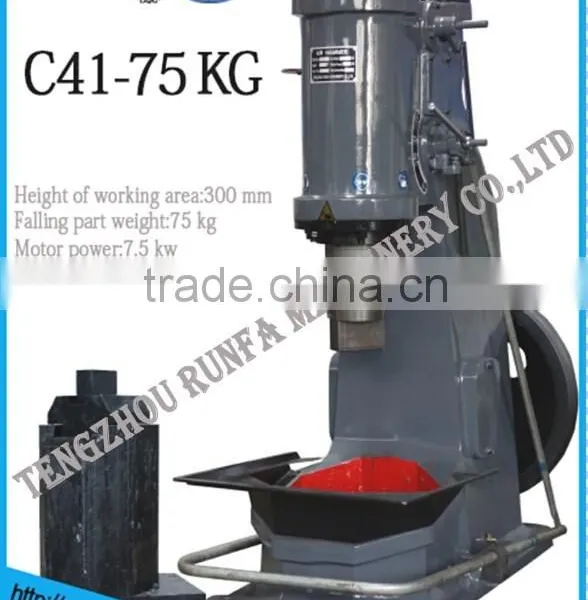

AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HELI
Contact Supplier Request Quote Chat Now
Tengzhou Runfa Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI/YIWU/GUANGZHOU/TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name HELI
Model Number C41-75
Voltage 380V/415V/440V/480V
Power(W) 7500
Dimension(L*W*H) 1400 X 760 X 1950 MM
Weight 2700 KG
Certification CE ISO
Warranty 12 months
After-sales Service Provided No overseas service provided

 AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMERAIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMERAIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMERAIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER

Product Description



Pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer, pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg, 16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 150kg, 250kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.

AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER





Our Services

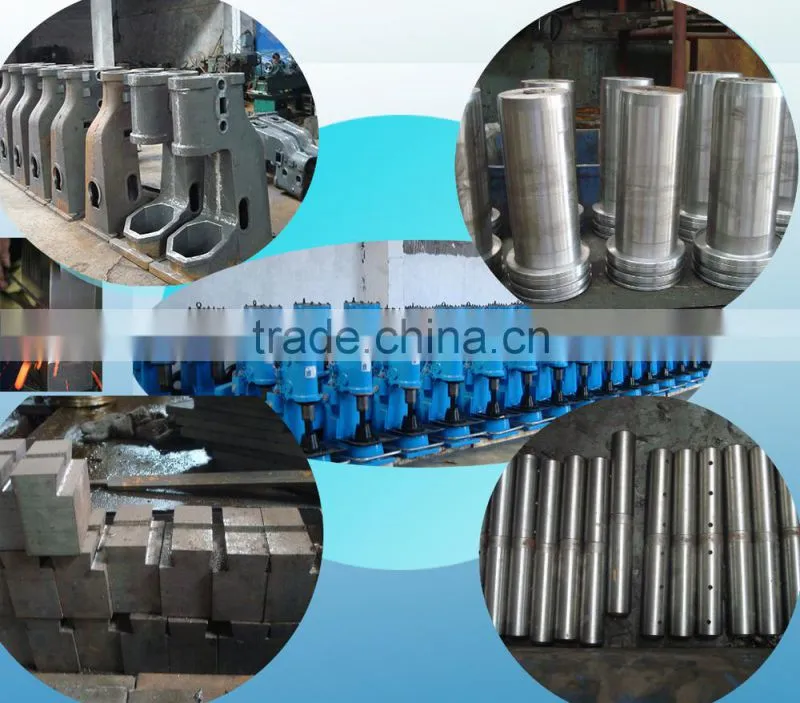

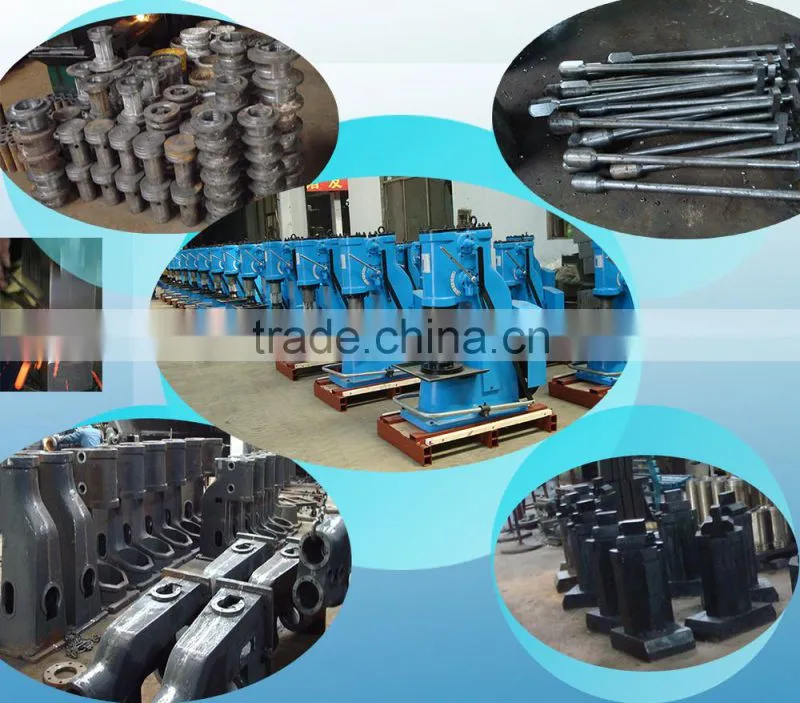

 All our air hammer are professional produced from the source of material,even one bolt and screw,we always choose the best and durable for our hammer.Only with strong hammer body frame and hardened ,durable parts,that can make the hammer more stable,druble and high efficent.Of course,you must be familar with all our hammer from our operation manual.

All of hammer are test about 72 hours on the trial bench to make sure every hammer are running well.

If find any little defect,pls feedback to our after sale service,we would make record down them and then feedback to our technical

department and then give the improvement and solution at first time.

So no matter what problem or questions you have,pls contact with us,we would reply you within 24 hours.

AIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMERAIR HAMMER C41-75 PROFESSIONAL BLACKSMITH POWER HAMMER





TECHNICALSPECIFICATIONS

No.

Name.

Unit

C41-6

C41-16

C41-20

C41-25

C41-40

C41-55

C41-75

C41-150

C41-250

1

Weight of falling parts

Kg

6

16

20

25

40

55

75

150

250

2

Max. hit energy

Kj

0.066

0.18

0.22

0.27

0.53

0.7

1

2.2

5.6

3

Hit number

min -1

248

258

255

250

245

230

210

180

150

4

Distance from bottom die surface to bottom surface of lead

mm

175

180

200

215

245

295

300

370

450

5

Tup axis to hammer body

mm

100

150

180

200

235

280

300

360

430

6

Dimension of top and bottom die surface

mm



70x40

90x50

100x50

120x50

120x55

145x65

200x85

220x100



7



Maximum forge

Round piece

mm



22

 35

 45

 68

 68

 85

 145

175

Square piece

mm



20x20

30x30

40x40

52x52

52x52

65x65

130x130

145x145

8

Distance from bottom die surface to base

mm



307

407

436

555

568

746

735

750



9







Motor

Type



















180L-4

Rate power

kw

0.75

1.5

2.2

3

4

5.5

7.5

15

22

speed

r.p.m

1440

1440

1440

1440

1440

1440

1440

1440

1470

10

Overall dimension

mm

480x340x670

660x420x970

820x460x1110

900x510x1200

1080x600x1430

1320x670x1620

1400x760x1950

2080x1240x2350

2875x1405x2570

11

Anvil weight

Kg

-------

---------

190

250

400

600

850

1800

2950

12

Total weight

Kg

126

240

500

760

1350

1700

2800

5060

8200
