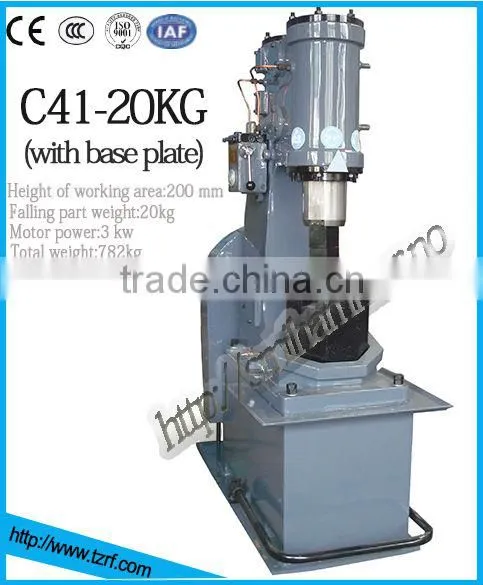

AIR HAMMER C41-20KG ( With Base Plate)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AIR HAMMER C41-25KG ( With Base Plate)NegotiableMOQ: 1 Set -
BlackSmith Forging Hammer C41-55KGNegotiableMOQ: 1 Set
-
AIR FORGING HAMMER C41-25KG (single With Base Plate)NegotiableMOQ: 1 Set
-
Air Hammer C41-25KGNegotiableMOQ: 6 Sets
-
C41-20KG(separate)air Hammer (ONLY SUPPLY FOR NORWAY)NegotiableMOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
HELI
Model Number
C41-20KG WITH BASE PLATE
Voltage
220V/380V
Power(W)
3 KW
Dimension(L*W*H)
970x460x1310
Weight
782kg
Certification
CE
Warranty
12 months
After-sales Service Provided
No overseas service provided
Specifications
1.small and easy to move2.more stable and durable
3.easy contol by hand or foot
nvient installation
Air hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting, it is also used for forge in bolster dies.
SPECIFICATION |
UNIT |
C41-20kg WITH BASE PLATE |
Max. hit energy |
kj |
0.22 |
Height of working area |
mm |
200 |
Hit number |
min-1 |
255 |
Dimension of top and bottom die surface(LxW) |
mm |
90 x 50 |
Max. square steel can be forged |
mm |
30 x 30 |
Max. round steel can be forged(Diameter) |
mm |
35 |
Motor power |
kw |
1phase 3/220 3phase 2.2/380 |
Speeds of motor |
r.p.m |
1440 |
Base plate weight |
kg |
-- |
Total weight |
kg |
782 |
Overall dimensions(L*W*H) |
mm |
1290X520X1560 |
Packing Size(L*W*H) |
mm |
1300x560x1600 |
