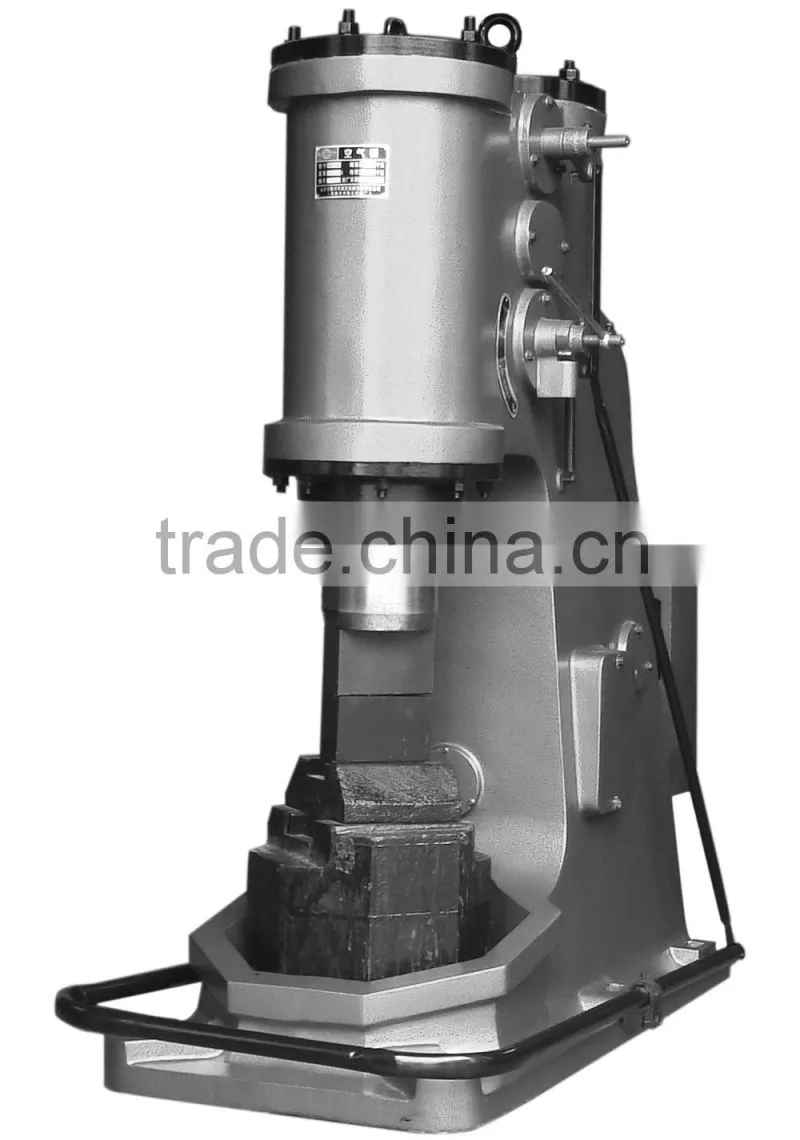

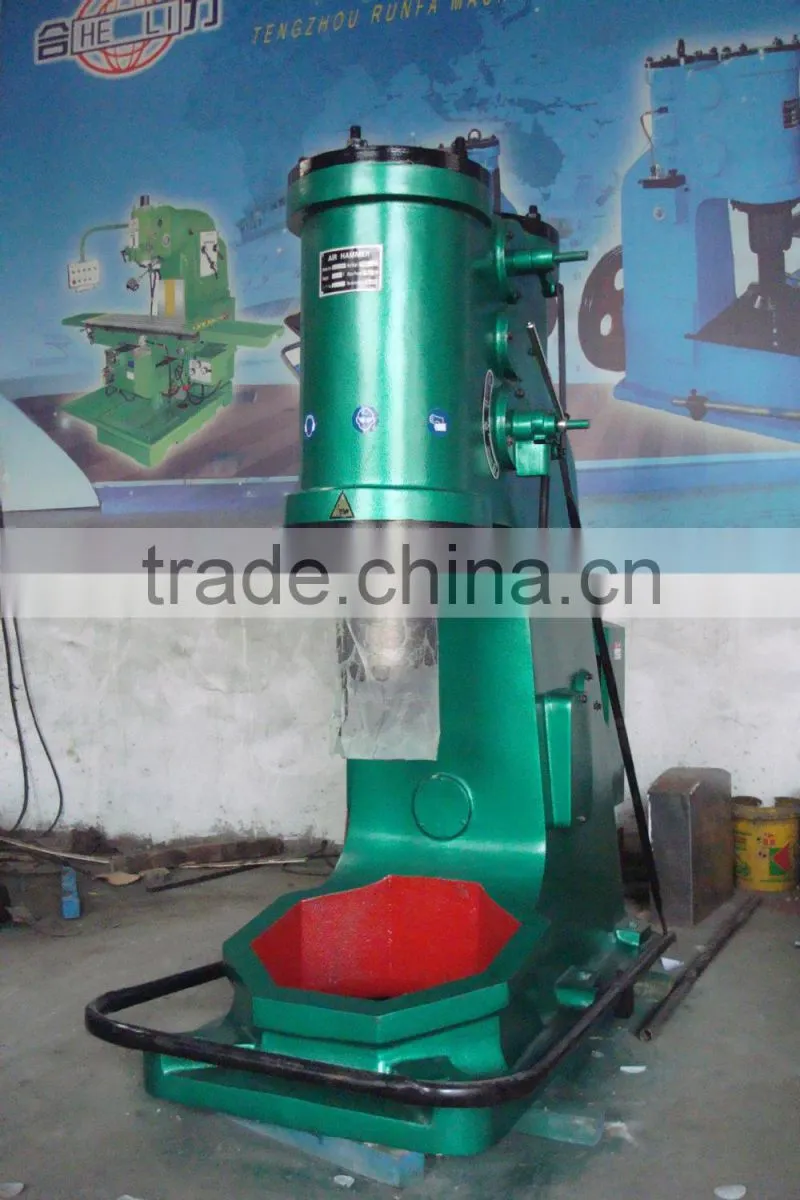

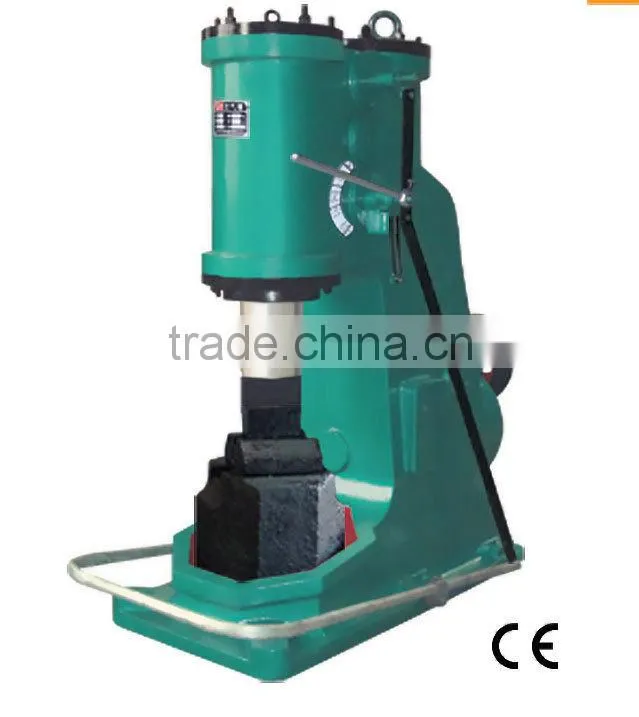

Blacksmith Air Forging Hammer C41-150KG

Blacksmith Air Forging Hammer C41-150KG thumbnail-1
Blacksmith Air Forging Hammer C41-150KG thumbnail-2
Blacksmith Air Forging Hammer C41-150KG thumbnail-3
Blacksmith Air Forging Hammer C41-150KG photo-1
Blacksmith Air Forging Hammer C41-150KG photo-2

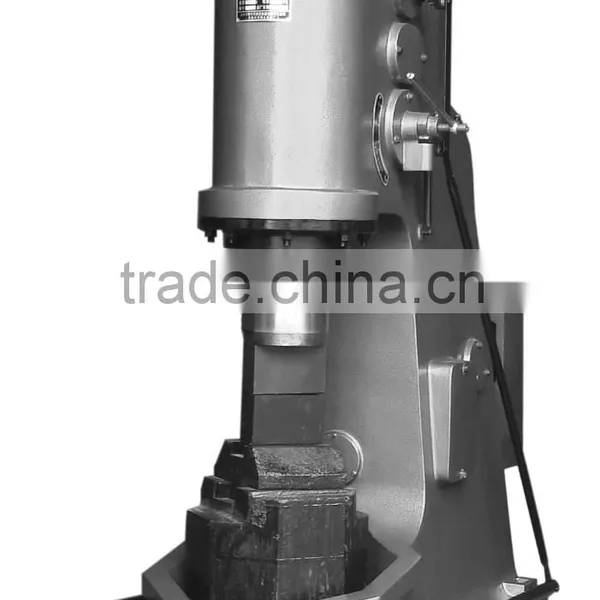

Blacksmith Air Forging Hammer C41-150KG photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HeLi
Contact Supplier Request Quote Chat Now
Tengzhou Runfa Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name HeLi
Model Number C41-150KG
Voltage 380V/440V/415V
Power(W) 15000
Dimension(L*W*H) 2080x1240x2350mm
Weight 5060kg
Certification CE
Warranty 12months
After-sales Service Provided No overseas service provided

Specifications

1.safe and stable
2.efficient and convenient
3.easily opertation and installation
lide,practical and time-tested

Blacksmith Air Forging Hammer C41-150KGBlacksmith Air Forging Hammer C41-150KG

Blacksmith Air Forging Hammer C41-150KGBlacksmith Air Forging Hammer C41-150KGBlacksmith Air Forging Hammer C41-150KG

TECHNICALSPECIFICATIONS

No.

Name.

Unit

C41-6

C41-16

C41-20

C41-25

C41-40

C41-55

C41-75

C41-150

C41-250

1

Weight of falling parts

Kg

6

16

20

25

40

55

75

150

250

2

Max. hit energy

Kj

0.066

0.18

0.22

0.27

0.53

0.7

1

2.2

5.6

3

Hit number

min -1

248

258

255

250

245

230

210

180

150

4

Distance from bottom die surface to bottom surface of lead

mm

175

180

200

240

245

265

300

370

450

5

Tup axis to hammer body

mm

100

150

180

200

235



300

360

430

6

Dimension of top and bottom die surface

mm



70x40

90x50

100x50

120x50

120x55

145x65

200x85

220x100



7



Maximum forge

Round piece

mm



22

 35

 45

 68

 68

 85

 145

 175

Square piece

mm



20x20

30x30

40x40

52x52

52x52

65x65

130x130

145x145

8

Distance from bottom die surface to base

mm



307

407

436

555

568

746

735

750



9







Motor

Type



















180L-4

Rate power

kw

0.75

1.5

2.2

3

4

5.5

7.5

15

22

speed

r.p.m

1440

1440

1440

1440

1440

1440

1440

1440

1470

10

Overall dimension

mm

480x340x670

660x420x970

820x460x1110

900x510x1200

1080x600x1430

1320x670x1620

1400x760x1950

2080x1240x2350

2875x1405x2570

11

Anvil weight

Kg

-------

---------

190

250

400

600

850

1800

2950

12

Total weight

Kg

126

240

500

760

1350

1700

2800

5060

8200
