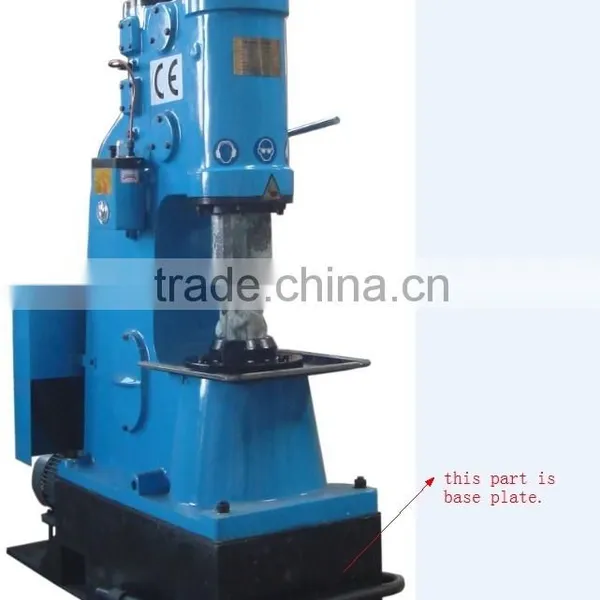

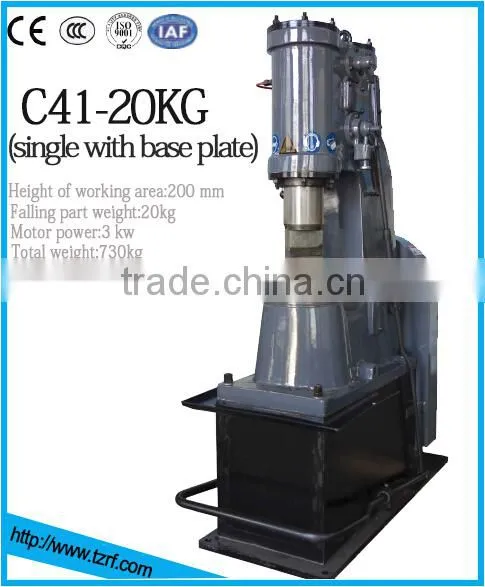

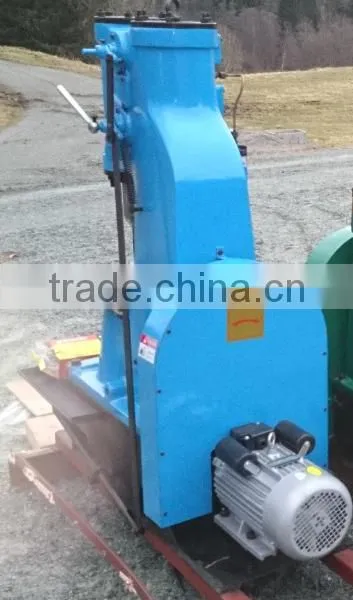

SINGLE WITH BASE PLATE TYPE
TWO PIECE WITH BASE PLATE TYPE
1.The single type and the two piece are different model.Mainly apart them from their structure.The single model are only one part.because its anvil bolster are installed on the hammer by bolts.its feature:
easy install and easy move to other place.
Its disadvantage is it would shake when the hammer works.because the top hammer die hit the bottom Hammer die ,so the power would make the hammer it is much suitable for amateur .
2.The two piece hammer are divide into two piece.One part is the hammer frame body,the other parts is the anvil block.
It is one professional forging hammer for experience blacksmith.It can bear much hitting power when hammer works.
Because its anvil block is separated from the hammer frame body,so while hammer works,the hit power would transit
To the foundation by anvil block.the hammer body would not shake.its feature:
more hit power resistance than single type
its disadvantage is installation is not so easy as single one.You need to make a foundation with a hole.once you install the hammer,It would not move to other place.
It is much suitable for professional blacksmith.

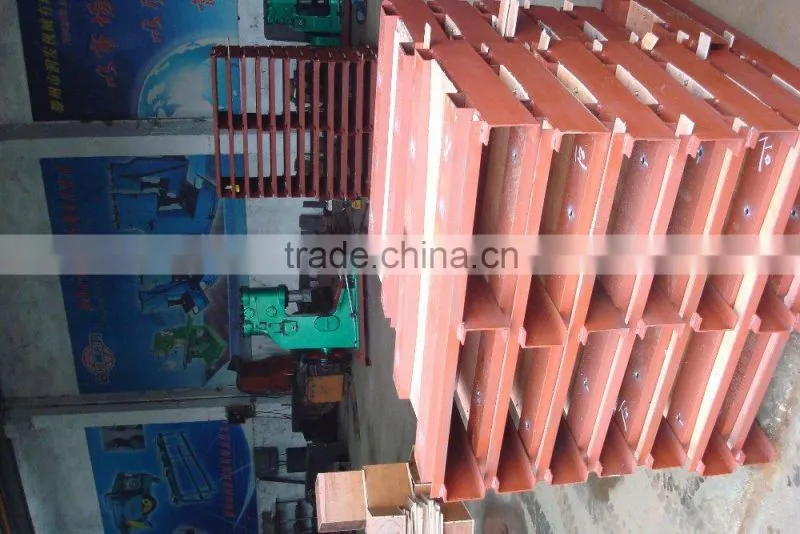

By the way,we design and develop the base plate one.not only single type,the two piece hammer also can have the same easy install and move.that’s all the with base plate model.
Technical Specifications(WITH BASE PLATE) | ||||||
1 |
Weight of falling parts |
Kg |
20 (SINGLE) |
20( two piece) |
||
2 |
Max. hit energy |
Kj |
0.18 |
0.18 |
||
3 |
Hit number |
min -1 |
258 |
258 |
||
4 |
Distance from bottom die surface to bottom surface of lead |
mm |
180 |
180 |
||
5 |
Tup axis to hammer body |
mm |
150 |
150 |
||
6 |
Dimension of top&bottom die surface |
mm |
70x40 |
70x40 |
||
7 |
Maximum forged |
Round piece |
mm |
22 |
22 |
|
Square piece |
mm |
20x20 |
20x20 |
|||
8 |

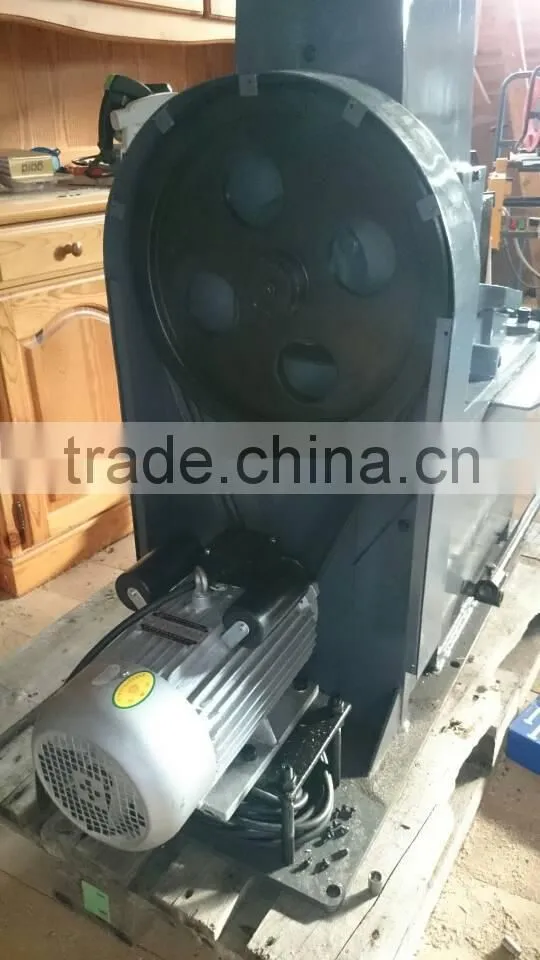

Motor |
Type |
-- |
|
|
|
Rate power |
kw |
2.2 |
2.2 |
|||
Speed |
r.p.m |
1440 |
1440 |
|||
9 |
Overall dimension |
mm |
1250*520*1690 |
1290*520*1690 |
||
10 |
Total Weight |
kg |
750 |
782 |
||

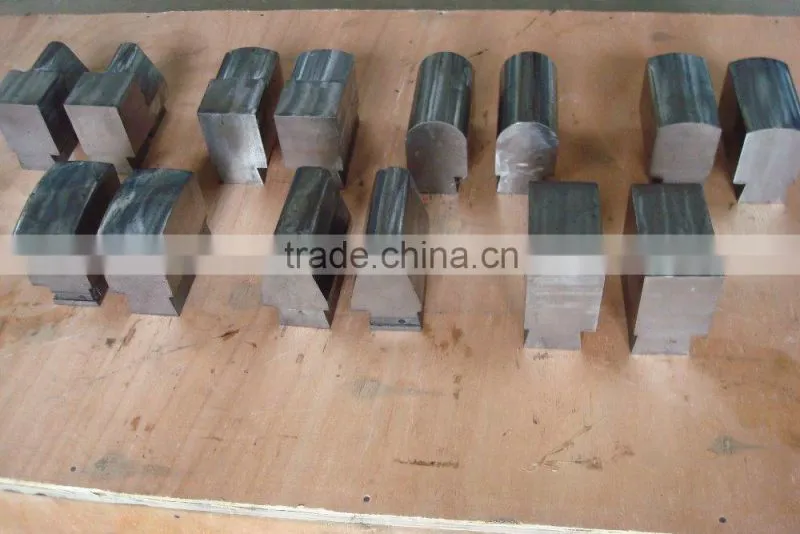

Optional Hammer Die
