Help CenterAir Power Forging Hammer C41series 6kg/20kg/40kg/55kg/150kg
Related Products
-
(FACTORY) Air Power Forging Hammer C41 SeriesNegotiableMOQ: 1 Set -
Air Power Forging Hammer C41 Series Blacksmith HammerNegotiableMOQ: 1 Set
-
Air Hammer C41 Series Wrought Iron Forging HammerNegotiableMOQ: 1 Set
-
THE WORLD'S FIRST ORIGINATION!!!Pneumatic Forging Hammer C41-6KGNegotiableMOQ: 1 Set
-
BEST-SELLER!!Air Power Forging HammerC41-6KG With CE CertificatedNegotiableMOQ: 1 Set
Specifications
1.simple structure2.Easy operation
3.Stable function
4.Motion agility
5.Easy transit,fix and maintenance
Air power forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. Air Power Forging Hammer RAM weight at 6kg, 16kg, 20kg,25kg, 40kg, 55kg, 75kg ,150kg are best used for art blacksmithing such as drawing-out, upsetting, punching, chiseling, bending and twisting. Air Power Hammer Machine Best Resin Sand Casting Machine Frame with whole machine life quality guarantee againest craftsmanship and material defects, with one full year guarantee on small parts and electrical parts.
Your questions or inquiries are always welcome!
Features:
1.Ready operation: Economic and convenient
2.Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions_idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired
3.A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.
Our advantages
1 More than fifty years experience of industry products;
2, All models with CE , ISO9002 or other authority approved;
3,High reputation around the world;
4, Professional service and technology support;
5,Competitive price with better quality, even the best;
C41 series main technical data
Item |
Unit |
Numerical Value |
|
||||||
Weight of falling parts |
kg |
16 |
20 |
25 |
40 |
75 |
150 |
|
|
Maximum blow energy |
J |
180 |
220 |
270 |
530 |
900 |
2200 |
|
|
Distance from center of die to frame |
mm |
150 |
180 |
200 |
235 |
300 |
350 |
|
|
Distance between top and bottom die |
mm |
180 |
200 |
240 |
245 |
300 |
370 |
|
|
Number of blows per minute |
min-1 |
258 |
270 |
250 |
245 |
210 |
180 |
|
|
Dimension of top to bottom |
mm |
70*30 |
90*50 |
100*50 |
120*50 |
145*65 |
130*130
|
|
|
Diameter of the working cylinder |
mm |
115 |
150 |
165 |
200 |
235 |
330 |
|
|
Diameter of the compressing cylinder |
mm |
125 |
155 |
170 |
205 |
240 |
340 |
|
|
Travel distance of malleus |
mm |
210 |
200 |
275 |
290 |
345 |
370 |
|
|
Travel distance of plunger |
mm |
120 |
130 |
140 |
154 |
200 |
|
|
|
Forges |
Round |
mm |
¢22 |
¢35 |
¢45 |
¢68 |
¢85 |
¢145 |
|
Square |
mm |
|
30 |
40 |
52 |
65 |
130 |
|
|
Motor |
Power |
kw |
1.5 |
2.0 |
2.2 |
4.5 |
7 |
15 |
|
Rotate speed |
rpm |
|
1440 |
1440 |
1440 |
1440 |
1470 |
|
|
Outside Size |
Length |
mm |
584 |
670 |
800 |
1080 |
1600 |
2080 |
|
Width |
mm |
390 |
360 |
410 |
600 |
950 |
1240 |
|
|
High |
mm |
952 |
1050 |
1213 |
1389 |
1950 |
2350 |
|
|
Anvil block weight |
kg |
|
190 |
247 |
400 |
850 |
1800 |
|
|
Hammer weight |
kg |
~220 |
~500 |
~720 |
~1400 |
~2800 |
~5060 |
|
|

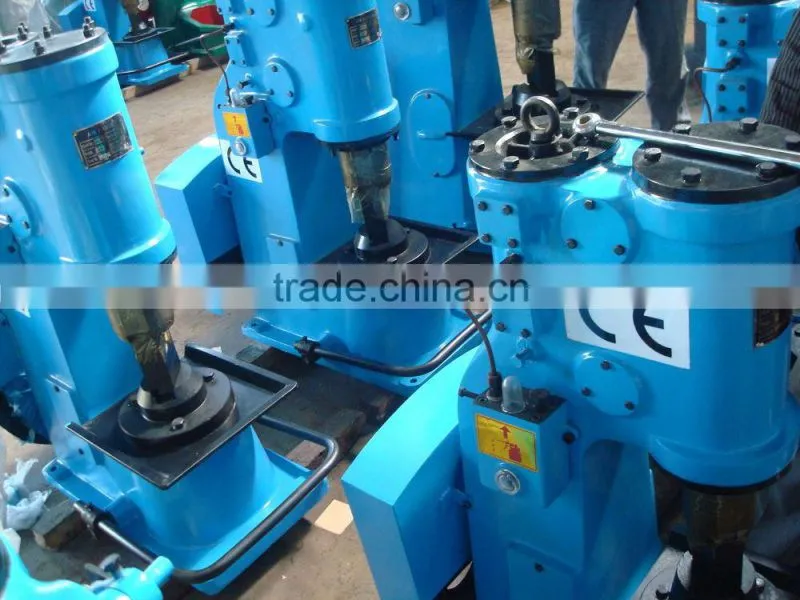

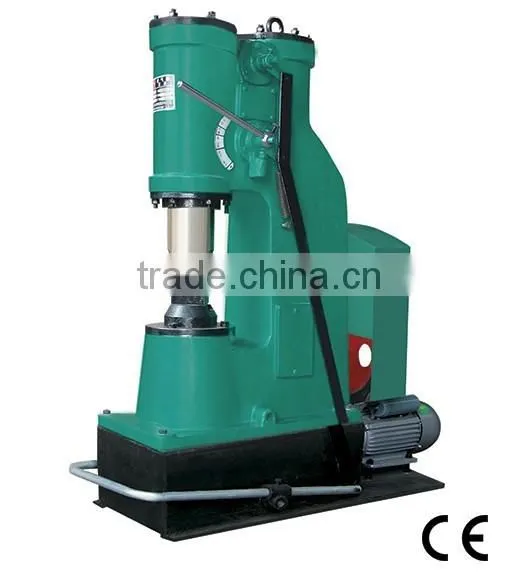

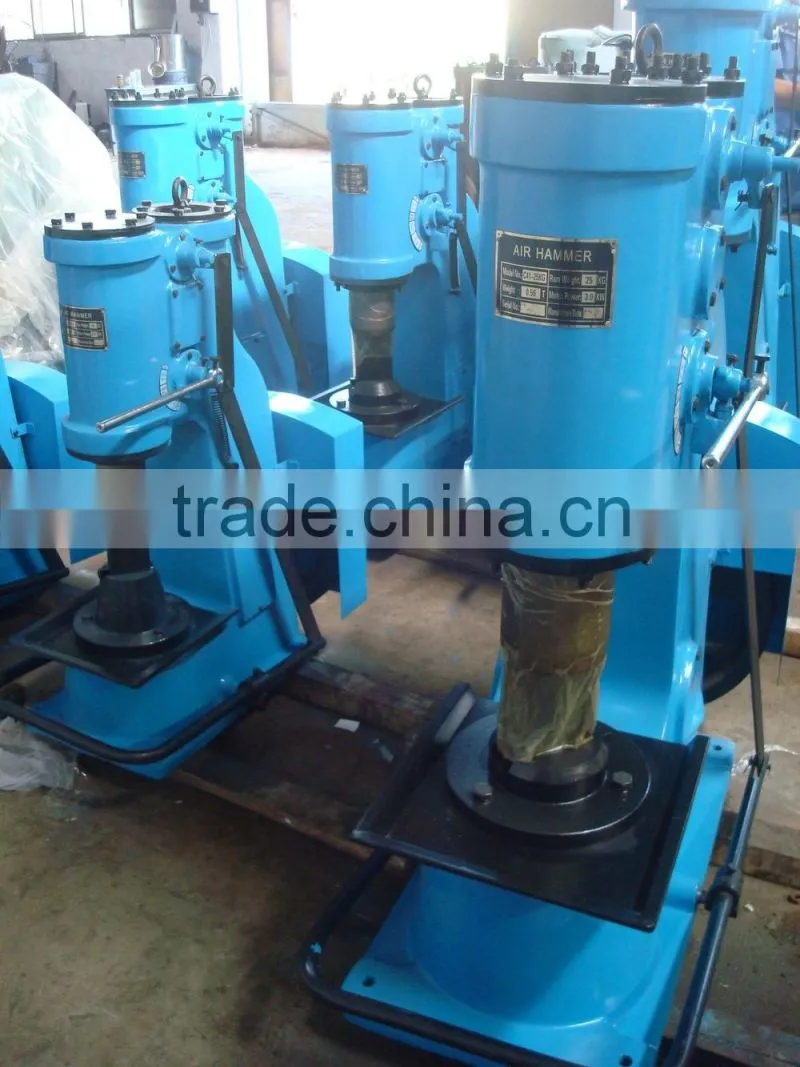

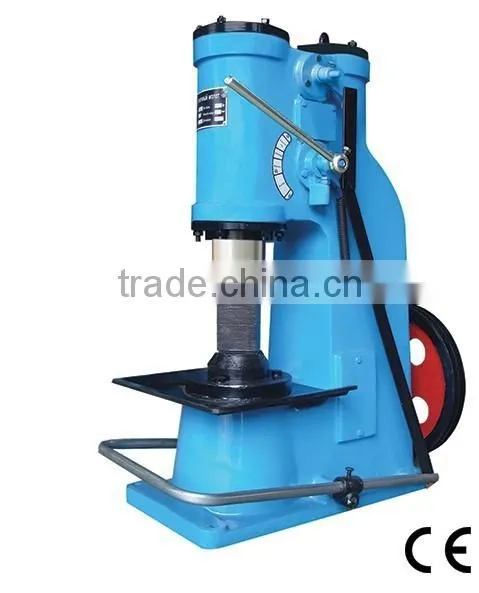

PICTURES DISPLAY
