Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Forging Machinery > Air Hammer C41 Series Wrought Iron Forging Hammer

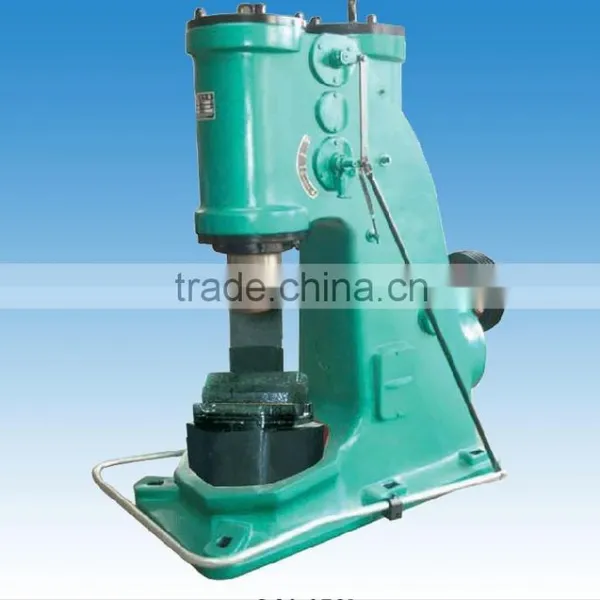

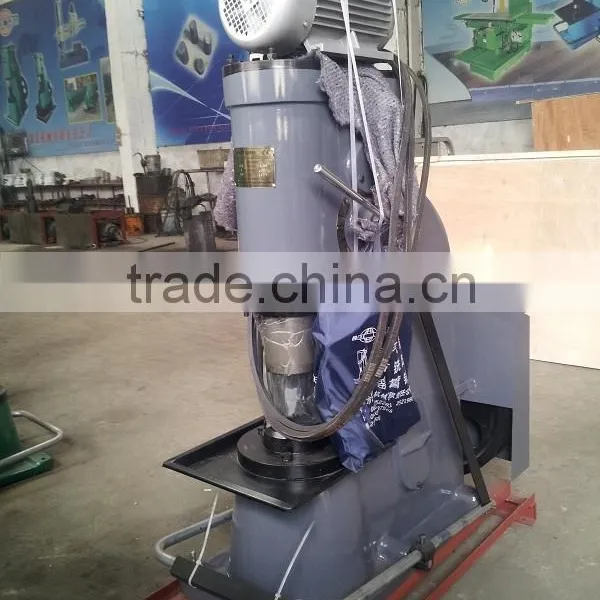

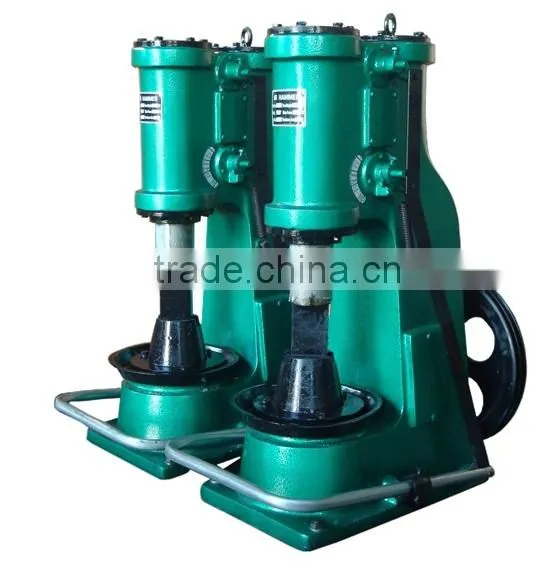

Air Hammer C41 Series Wrought Iron Forging Hammer

Name: Air Hammer C41 Series Wrought Iron Forging Hammer
Brand: HELI
SKU: 103160331
Availability: InStock

Tengzhou Runfa Machinery Co., Ltd.

Air Hammer C41 Series Wrought Iron Forging Hammer thumbnail-1

Air Hammer C41 Series Wrought Iron Forging Hammer thumbnail-2

Air Hammer C41 Series Wrought Iron Forging Hammer thumbnail-3

Air Hammer C41 Series Wrought Iron Forging Hammer thumbnail-4

Air Hammer C41 Series Wrought Iron Forging Hammer photo-1

Air Hammer C41 Series Wrought Iron Forging Hammer photo-2

Air Hammer C41 Series Wrought Iron Forging Hammer photo-3

Air Hammer C41 Series Wrought Iron Forging Hammer photo-4

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number C41-40KG

Voltage 380V

Power(W) 4 KW

Dimension(L*W*H) 1080*600*1430mm

Weight 1350kg

Certification CE

Warranty 12 months

After-sales Service Provided Overseas service center available

Specifications

1 Low noise
2 Reasonable structure
3 Convenient operation
4 Suitable for all kinds of forging works

Specifications

1 Low noise

2 Reasonable structure

3 Convenient operation

4 Suitable for all kinds of forging works

C41 series main technical data

Item		Unit	Numerical Value
Weight of falling parts		kg	16	20	25	40	75	150
Maximum blow energy		J	180	220	270	530	900	2200
Distance from center of die to frame		mm	150	180	200	235	300	350
Distance between top and bottom die		mm	180	200	240	245	300	370
Number of blows per minute		Per min	258	270	250	245	210	180
Dimension of top to bottom		mm	70*30	90*50	100*50	120*50	145*65	130*130
Diameter of the working cylinder		mm	115	150	165	200	235	330
Diameter of the compressing cylinder		mm	125	155	170	205	240	340
Travel distance of malleus		mm	210	200	275	290	345	370
Travel distance of plunger		mm	120	130	140	154	200
Forges	Round	mm	¢22	¢35	¢45	¢68	¢85	¢145
Forges	Square	mm	20	30	40	52	65	130
Motor	Power	kw	1.5	2.0	2.2	4.5	7	15
Motor	Rotate speed	rpm	1440	1440	1440	1440	1440	1470
Outside Size	Length	mm	584	670	800	1080	1600	2080
	Width	mm	390	360	410	600	950	1240
	High	mm	952	1050	1213	1389	1950	2350
Anvil block weight		kg	-----	190	247	400	850	1800
Hammer weight		kg	~220	~500	~720	~1400	~2800	~5060

Services:

1, Your inquiry will be replied in 24 hours;

Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 5 years.

And there is more industry technology experience for more than 46 years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Professional after-sales service team;

5,Give reasonable offers with the best quality.

QUALITY MEASURE

Quality assurance system

Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.

MACHINE QUALITY

Machine design and manufacture performs occupation standard and comply with the requirement of quality, specification and characters herein this technical regulation.

Guarantee period start from the day the machine acceptance report signing. Period would be one year.

Technical documents which supplier in charge of furnish and handed to use should be consist with technical regulation, and throughout technical, technics, produce, installation and setting

After-sale-service

Manufacturer(my company) will in charge of the technical service for the whole using life of the machine.

If you want to know more about the machine ,pls. contact with us freely.

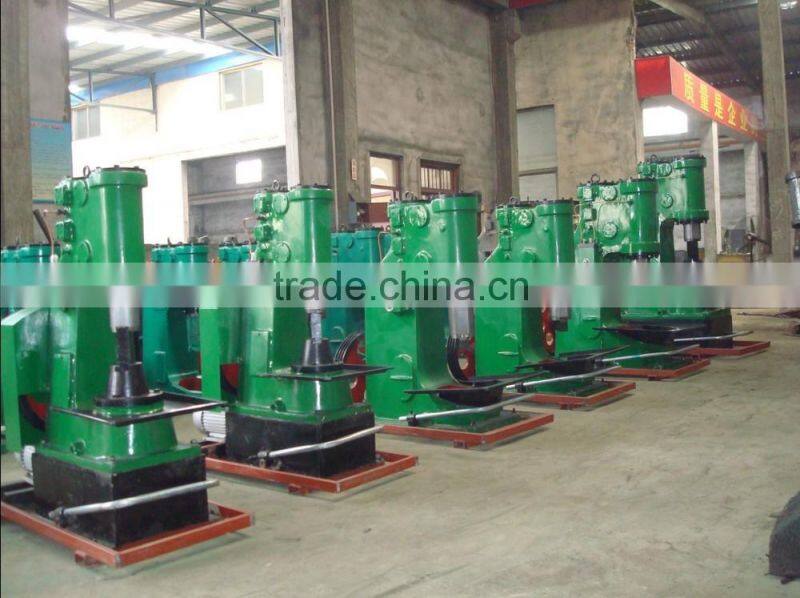

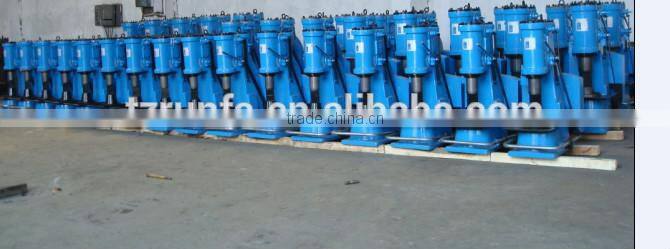

PICTURES DISPLAY
