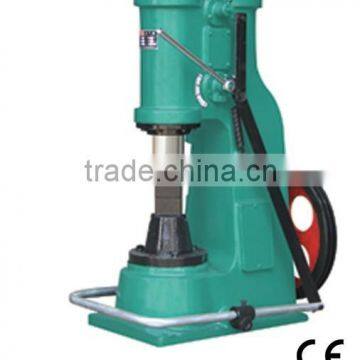

Small air hammer CE approved forging hammerC41 series
- 247 Set / Sets per Month
- QINGDAO
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HELI |
Model Number: | C41-75KG | Voltage: | 380V | Power(W): | 7.5KW |
Dimension(L*W*H): | 1400*760*1950MM | Weight: | 2800KG | Certification: | CE |
Warranty: | 12 months | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
Specifications1 Low noise
2 Reasonable structure
3 Convenient operation
4 Suitable for all kinds of forging works
Main Features
The air hammer with small size,low noise,simple structure ,easy operation ,flexible movement and convenient to transit ,installation ,maintenance ,the type is widely used for various of free forging works ,such as drawing-out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .It is also used for open-die forging in bolster dies.it is suitable for free forging works of all kinds of different shape parts ,especially suitable for village township enterprise and self-employed forge small agriculture tools .For example sickle ,horseshoes ,Spike ,hoe etc .At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,scaffold and many other factories and mines ,construction supplies .In addition the series air hammer is very commonly professional blacksmith's iron tools that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration .
75kg separate main technical data
Item | Unit | Numerical Value | |
Weight of falling parts | kg | 75 | |
Maximum blow energy | J | 1000 | |
Distance from center of die to frame | mm | 300 | |
Distance between top and bottom die | mm | 300 | |
Number of blows per minute | min-1 | 210 | |
Dimension of top to bottom | mm | 145*65 | |
Diameter of the working cylinder | mm | 235 | |
Diameter of the compressing cylinder | mm | 240 | |
Travel distance of malleus | mm | 345 | |
Travel distance of plunger | mm | 200 | |
Forges | Round | mm | Φ85 |
Square | mm | 65 | |
Motor | Power | kw | 7.5 |
Rotate speed | rpm | 1440 | |
Outside Size | Length | mm | 1400 |
Width | mm | 760 | |
High | mm | 1950 | |
Anvil block weight | kg | 850 | |
Hammer weight | kg | ~2800 |
Our advantages
1 More than fifty years experience of industry products;
2, All models with CE , ISO9002 or other authority approved;
3,High reputation around the world;
4, Professional service and technology support;
5,Competitive price with better quality, even the best;
QUALITY MEASURE
Quality assurance system
Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.
MACHINE QUALITY
Machine design and manufacture performs occupation standard and comply with the requirement of quality, specification and characters herein this technical regulation.
Guarantee period start from the day the machine acceptance report signing. Period would be one year.
Technical documents which supplier in charge of furnish and handed to use should be consist with technical regulation, and throughout technical, technics, produce, installation and setting
After-sale-service
Manufacturer(my company) will in charge of the technical service for the whole using life of the machine.
If you want to know more about the machine ,pls. contact with us freely.

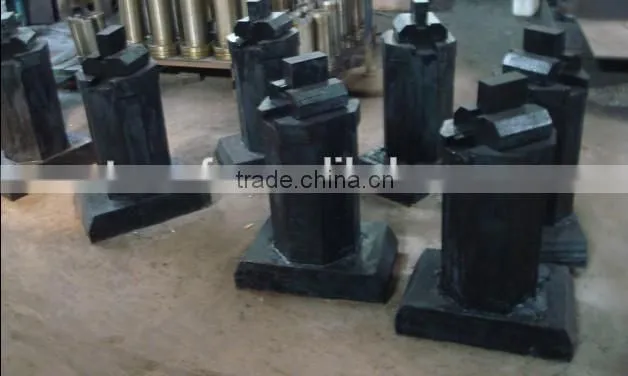

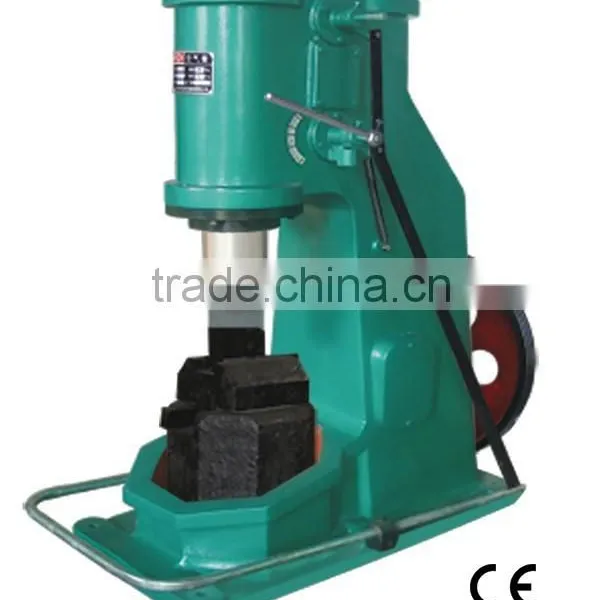

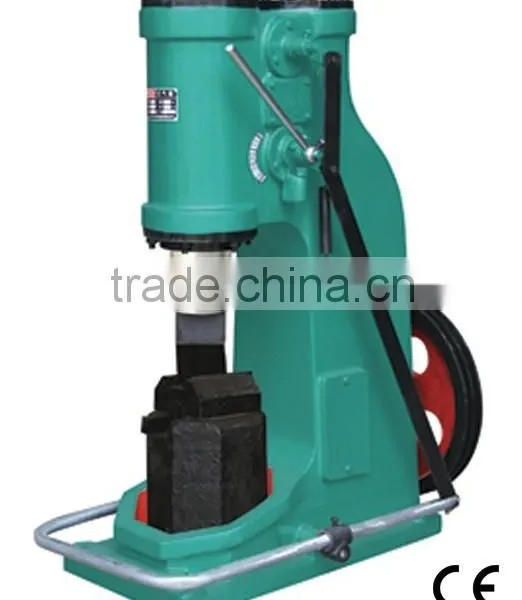

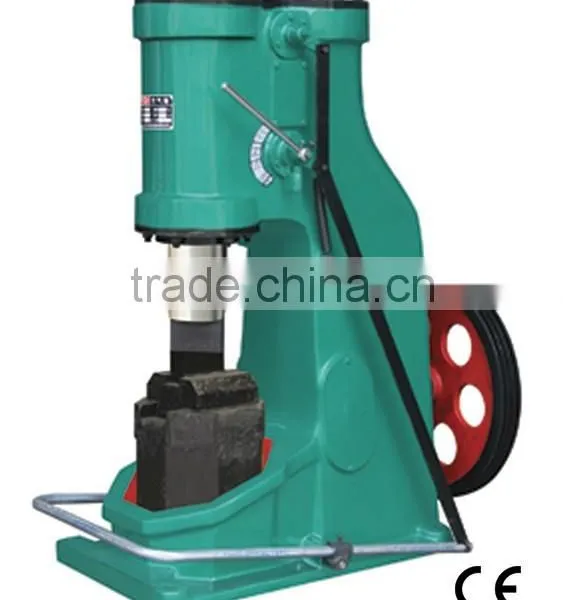

PICTURES DISPLAY
