- Such slant bed cnc lathe has following features:
- 45 ° inclined bed split,
- spindle Stepless Speed,

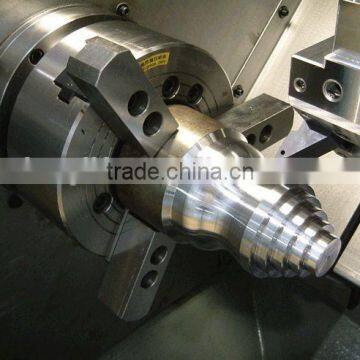

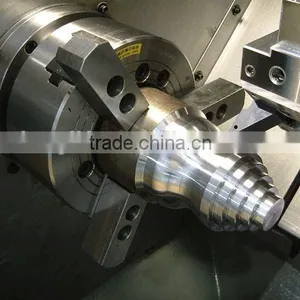

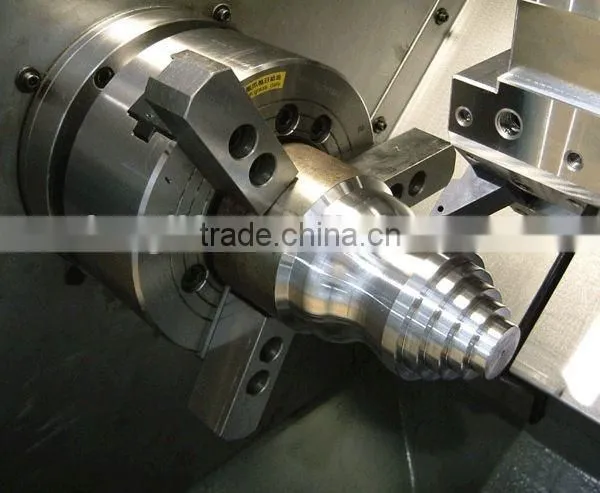

- 8″ hydraulic Solid chuck,

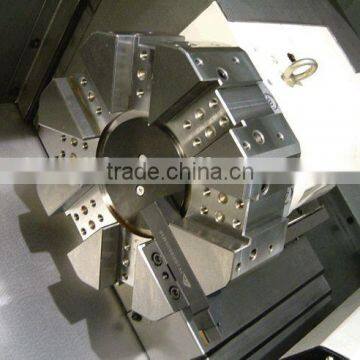

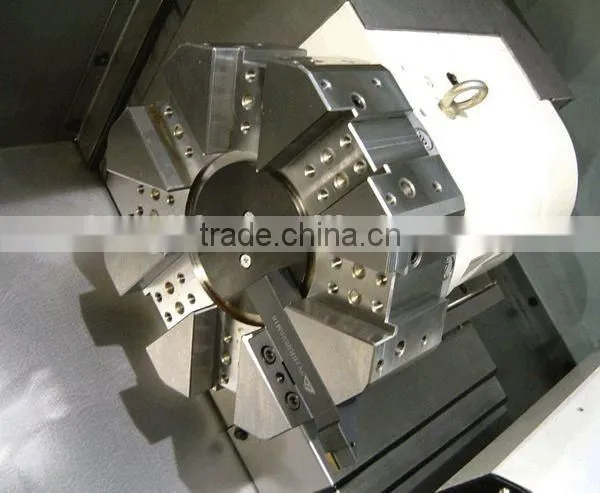

- 8-station hydraulic turret,
- Hydraulic tailstock,
- Lateral waste device,
- Full-closed protection,
- Linear guideways;
- Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability.
- Machine bed is made of heat stabilized cast-iron.
- A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining.
- Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, etc.

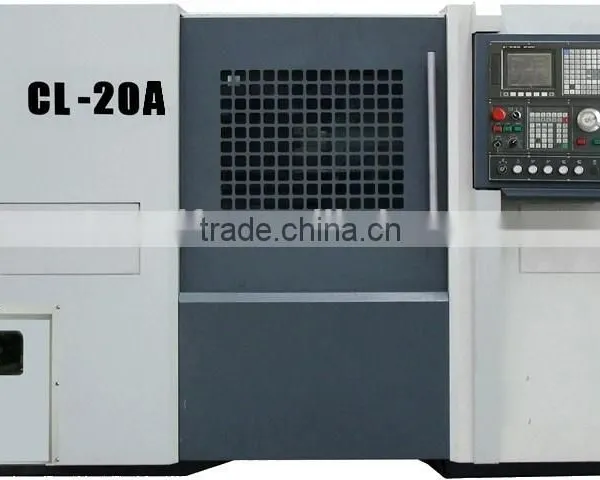

CL20 slant bed cnc lathe Specifications |
Unit |
Parameter |
Swing over bed |
mm |
Φ440 |
Max turning length |
mm |
500 |
Max. turning diameter(Shafts) |
mm |
Φ360 |
Max. turning diameter(Discs) |
mm |
Φ300 |
Guide way type |
|
linear |
Chuck size |
|
8" |
Spindle nose |
|
ISO A2-6 |
Spindle speed |
rpm |
45~4500 |
Main spindle motor power (S6) |
kW |
11(15) |
Spindle bore diameter |
mm |
62 |
Max bar diameter |
mm |
Φ52 |
Positioning accuracy: |
mm |
(X)0.016 (Z)0.02 |
Repeat positioning accuracy: |
mm |
(X)0.007 (Z)0.008 |
X-axis travel |
m/min |
165 |
Z-axis travel |
m/min |
510 |
X-axis rapid traverse |
mm |
16 |
Z-axis rapid traverse |
mm |
20 |
Turret: number of stations |
|
8 |
Tool size |
mm |
25×25 |
Tailstock quill diameter |
mm |
Φ80 |
Tailstock quill travel |
mm |
130 |
Tailstock taper |
MT |
3 |
Machine size: L×W×H |
mm |
2760×1500×1750 |
Net weight |
kg |
4800 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
