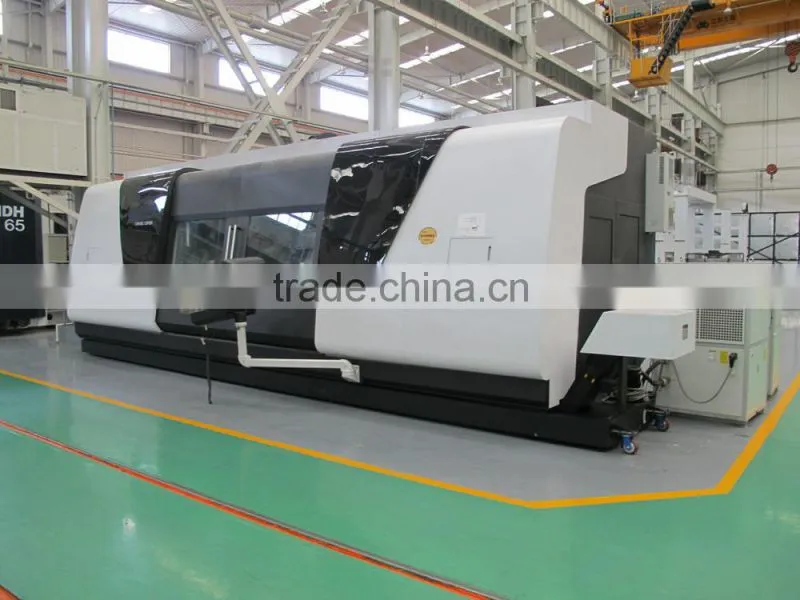

CE Slant Bed CNC Lathe Machinery Heavy-duty Type

Name: CE Slant Bed CNC Lathe Machinery Heavy-duty Type
Brand: DALIAN
SKU: 102715543
Availability: InStock

US$ 47,100 - 247,058 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 800mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number DL20M DL25M DL30M DL32M DL40

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CNC Slant Bed Lathe specification

For detailed information, to: export(at)

Item	DL20M	DL25M	DL30M	DL32M	DL40
Swing over bed mm)	440	520	625	680	800
Max turning length(mm)	600/1000	1000/1500	1000	1000/2000	2000/2500/3000
Max. turning diameter(Shafts)(mm)	260	310	310	400	550
Max. turning diameter(Discs)(mm)	400	500	600	630	750
Guide way type	linear	box-type	linear	box-type	box-type
Chuck size	8"	10"	12"	15"	15"
Spindle nose	ISO A2-8	ISO A2-8	ISO A2-8	ISO A2-11	ISO A2-11
Spindle speed (rpm)	45-4500	35-3500	30-3000	20-2000	20-2000
Main spindle motor power(S6)(kW)	11(15)	18.522	15(18.5)	22(30)	22(30)
Spindle bore diameter (mm)	76	87	88	100	100
Max bar diameter(mm)	65	74	74	84	84
X-axis travel (mm)	265	260	325	375	375
Z-axis travel (mm)	700/1040	1100/1600	1110	1030/2030	2160/2660/3160
X-axis rapid traverse(m/min)	24	12	24	13	12
Z-axis rapid traverse(m/min)	24	12	24	13	16
Turret: number of stations	12	12	12	12	12
Tool size (mm)	25×25	25×25	25×25	32×25	32×25
Tailstock quill diameter(mm)	85	100	140	160	160
Tailstock quill travel(mm)	139	139	150	180	180
Tailstock taper(MT)	5	5	5	5	5
Machine size: L×W×H(mm)	4140/4840×1794×1795	4834/4934×1830×1977	5084×2082×2050	5740/6740×2040×2240	5950/6450/6950×2358×2600
Net weight(kg)	5500/6500	7800/8300	8500	11000/13000	13000/14000/15000
CNC Type	FANUC 0i-T	FANUC 0i-T	FANUC 0i-T	FANUC 0i-T	FANUC 0i-T
