CL Series CE 8 Station Small Slant Bed Cnc Lathe for Sale

CL Series CE 8 Station Small Slant Bed Cnc Lathe for Sale photo-1

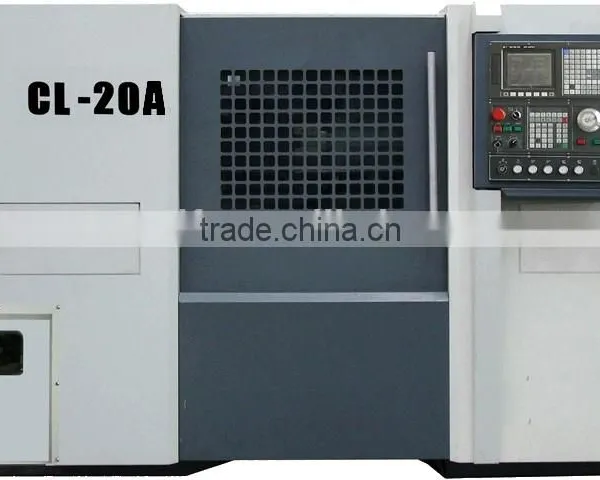

CL Series CE 8 Station Small Slant Bed Cnc Lathe for Sale photo-2

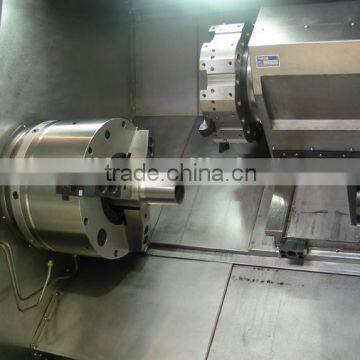

CL Series CE 8 Station Small Slant Bed Cnc Lathe for Sale photo-3
US$ 37,633 - 51,470 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, slant bed
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, slant bed
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 440mm
Place of Origin Liaoning, China
Brand Name DALIAN
Model Number CL-15 CL-20A 8 station slant bed cnc lathe machine
Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Power(W) 5.5/11kW
Dimension(L*W*H) Depends
Weight 3300/4800kgs
Certification CE Certificate; ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas
CL Series 8 station slant bed cnc lathe
Machine Features:
  • Such slant bed cnc lathe has following features:
  • 60/45 ° inclined bed split,
  • spindle Stepless Speed,
  • 6/8″ hydraulic Solid chuck,
  • 8-station hydraulic turret,
  • Hydraulic tailstock,
  • Lateral waste device,
  • Full-closed protection,
  • Linear guideways;
  • Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability.
  • Machine bed is made of heat stabilized cast-iron.
  • A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;
  • Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, etc.
Detailed Photos:

CL Series CE 8 station small slant bed cnc lathe for saleCL Series CE 8 station small slant bed cnc lathe for saleCL Series CE 8 station small slant bed cnc lathe for sale

Main Technical Data

CL slant bed cnc lathe

CL15

CL20A

Swing over bed mm)

400

440

Max turning length(mm)

250/320

500

Max. turning diameter(Shafts)(mm)

160

360

Max. turning diameter(Discs)(mm)

200

300

Guide way type

linear

linear

Chuck size

6"

8"

Spindle nose

ISO A2-5

ISO A2-6

Spindle speed (rpm)

50~5000

45~4500

Main spindle motor power (S6)(kW)

5.5(7.5)

11(15)

Spindle bore diameter (mm)

46

62

Max bar diameter(mm)

32

52

Positioning accuracy:

X0.016mm Z0.020mm

X0.016mm Z0.020mm

Repeat positioning accuracy:

X0.007mm Z0.008mm

X0.007mm Z0.008mm

X-axis travel (mm)

120

165

Z-axis travel (mm)

260/330

510

X-axis rapid traverse(m/min)

15

15

Z-axis rapid traverse(m/min)

18

20

Turret: number of stations

8

8

Tool size (mm)

20×20

25×25

Tailstock quill diameter(mm)

60

80

Tailstock quill travel(mm)

80

130

Tailstock taper(MT)

3

3

Machine size: L×W×H(mm)

2130/2350×1555×1880

2760×1500×1750

Net weight(kg)

3300/3500

4800




Factory Overview:

CL Series CE 8 station small slant bed cnc lathe for sale

CL Series CE 8 station small slant bed cnc lathe for sale

CL Series CE 8 station small slant bed cnc lathe for sale

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

  1. 30% down payment, 70% by T/T before shipment;
  2. 100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

  1. 1 Set;
  2. ≥2 sets, there will be much discounts.

Warranty:

  1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

  1. For machine itself, by sea or train(inland countries).
  2. For documents, by international express. eg DHL, TNT or EMS.
Packaging & Shipping
CL Series CE 8 station small slant bed cnc lathe for sale

CL Series CE 8 station small slant bed cnc lathe for sale

CL Series CE 8 station small slant bed cnc lathe for sale
