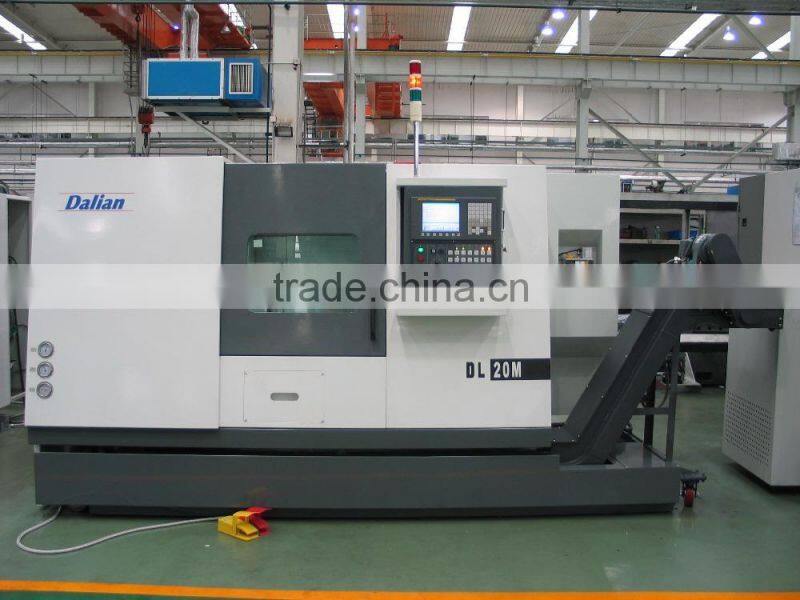

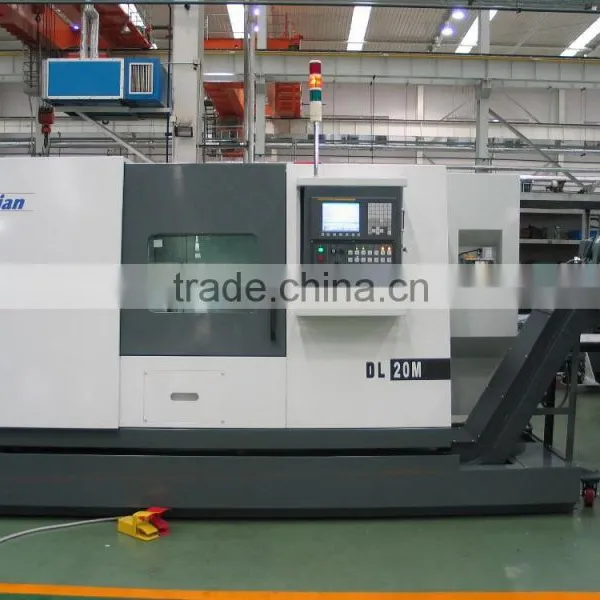

Help CenterDL20Mx1000 CE Slant Bed Cnc Lathe
Related Products
-
CE Slant Bed CNC Lathe Machinery Heavy-duty TypeUS$ 47,100 - 247,058MOQ: 1 Set -
DL50x4000 CE Certified Inclined Bed Cnc Lathe for Sale Quality ChoiceUS$ 338,970 - 4,247,058MOQ: 1 Set
-
8-statioin Slant Bed CNC Lathe With CEUS$ 40,259 - 51,470MOQ: 1 Set
-
DL40 CE Slant Bed CNC Lathe for Heavy MachiningUS$ 214,000 - 247,058MOQ: 1 Set
-
CE CNC Slant Bed Lathe Hot-sale CL-20AUS$ 34,420 - 40,270MOQ: 1 Set
1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;
2. The machine bed is made of heat stabilized cast-iron;
3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;
4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;
Standard Configuration
5. 45° inclined bed split and box guide way;
6. spindle stepless speed;
7. 12-station hydraulic turret;
8. 8″ hydraulic Solid chuck and Hydraulic tailstock;
9. Lateral waste device and Closed-end protection;
Specifications |
Unit |
Parameter |
Swing over bed |
mm |
Φ450 |
Center distance |
mm |
1000 |
Max. turning diameter (Shafts / Discs) |
mm |
Φ250/380 |
Guide way type |
mm |
linear |
Chuck size |
|
8" |
Spindle nose |
|
ISO A2-8 |
Spindle speed |
rpm |
45~4500 |
Main spindle motor power (S6) |
kW |
11(15) |
Spindle bore diameter |
mm |
Φ76 |
X-axis travel |
mm |
265 |
Z-axis travel |
mm |
1040 |
X-axis rapid traverse |
m/min |
20 |
Z-axis rapid traverse |
m/min |
20 |
Positioning accuracy |
mm |
(X)0.016(Z)0.025 |
Repeat positioning accuracy |
mm |
(X)0.007(Z)0.010 |
Turret: number of stations |
mm |
12 |
Tool size |
mm |
25×25 |
Tailstock quill diameter |
mm |
Φ85 |
Tailstock quill travel |
mm |
139 |
Tailstock taper |
MT |
5 |
Machine size: L×W×H |
mm |
4140/4840×1830×1795 |
Net weight/Gross weight |
kg |
5500/650 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
