QC12Y-6X2500 Chennai Steel Plate Shearing Machine

Name: QC12Y-6X2500 Chennai Steel Plate Shearing Machine
Brand: TONGWEI
SKU: 116450307
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Nantong Weili CNC Machine Tool Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Place of Origin Jiangsu, China

Brand Name TONGWEI

Model Number QC12Y-6X2500

Voltage 380

Power(W) 7.5

Dimension(L*W*H) 3300.1600.1600

Certification ISO CE

After-sales Service Provided Overseas service center available

Specifications

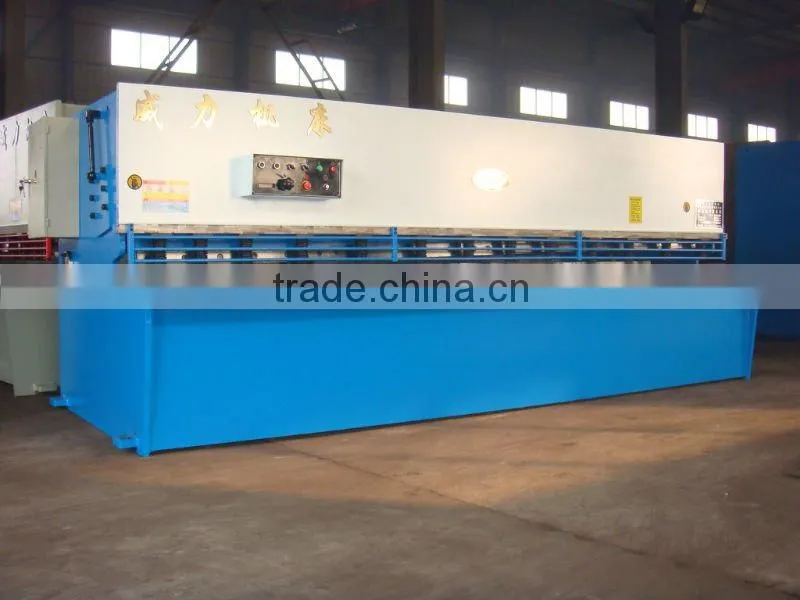

QC12Y-6X2500 Chennai steel plate shearing machine
1.Good rigidty and stability.
2.Integrated hydraulic transmission system.

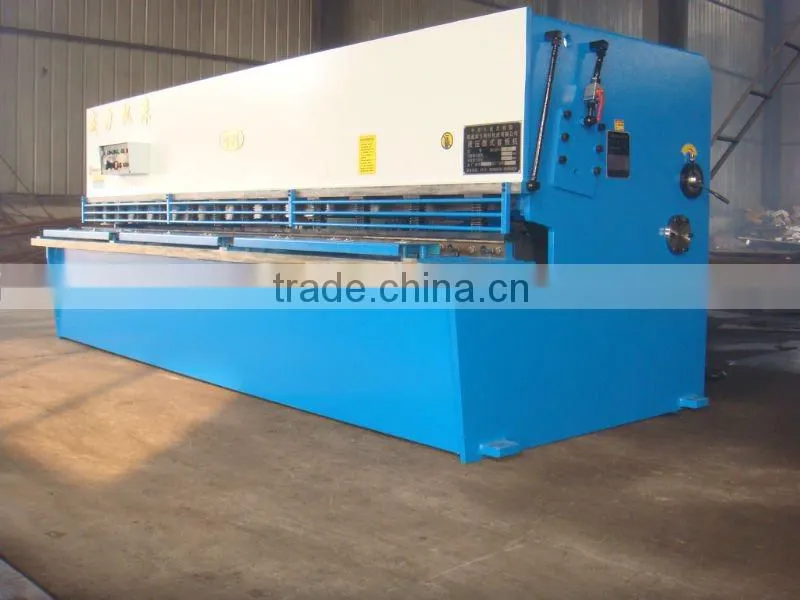

QC12Y-6X2500 Chennai steel plate shearing machine
All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.
integrated hydraulic transmission system, with good reliability.
Triple support rolling rude rail to eliminate gaps of support and enhance shearing quality.
Mechanical rear stopper with manual fine tuning, and digital in dication.
Clearance in between shearing blades adjusted by hand wheel to be quick, accurate and convenient.
Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
Upper blade holder has inward tilling structure to facilitate material feed in and also enhance accuracy of the work piece.
Function of shearing in sections, function of aligning with light.
Optional: rear material holding device(or for other choice)

serial nmuber	project		value	unit
1	thickness can be cut		6	mm
2	width can shears		2500	mm
3	material strength by shears		σb≤450	N/mm²
4	trips		7	/min
5	shear angle		1.5°
6	throat depth		150	mm
7	blade length		2600	mm
8	ght table height above ground		800	mm
9	after the block area		20~800	mm
10	main motor	model	Y160M-4 B5
		power	7.5	KW
		speed	1440	rpm
11	axial piston pump	model	25MCY14-1B
		flow	25	L/min
		pressure	31.5	Mpa
12	dimensions	long	3300	mm
		wide	1600	mm
		high	1600	mm
