Gold Magnetic Separator Machine
1)Magnetic separator machine is the use of magnetic force and mechanical force on different magnetic mineral particles of different role to achieve the mineral separation. Magnetic separator is widely used in ferrous metal ore beneficiation, coloured and rare metal ore selection, heavy medium separation of medium recovery from non-metallic mineral raw materials, removal of iron impurity from the smelting production, steel slag recycling scrap, and refractory materials, food, feed, chemical raw materials industry.
2)Advantages of magnetic separator machine
(1) For primary rough dressing and refused tails, increasing recovery rate and reducing the load of second-stage grinding.
(2) For concentration of ferromagnetic minerals, increasing ore grade and recovery rate.
(3) Used before high-magnetism separation to remove ferromagnetic minerals from the ore and prevent magnetic clogging.
(4) For recovery of heavy media at coal processing plants.

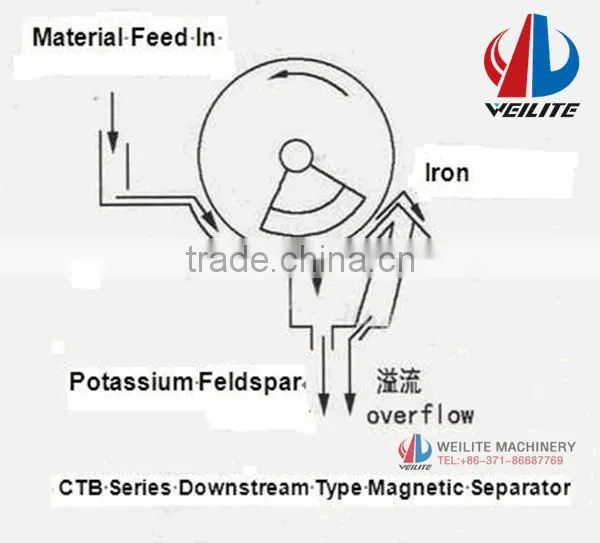

3)Magnetic separator machine operating principle
When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
4)Magnetic separator machine installation pictures
5)Main technical parameters
| Model | Magnetic intensity | Capacity(t/h) | Motor power(kw) | Weight(kg) |
| CTB600X1200 | 1450 | 8-15 | 1.1 | 910 |
| CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500X3000 | 1650 | 120-200 | 11 |
9600 |
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1>Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and
finishing the check and accept together with you.
3>After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,building design, instruction, installation and debugging for free.
4>We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Note:
If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
