Home > Products > Beneficiation Machinery > Widely Used Magnetic Separator For Mineral Processing,Mineral Magnetic Separator Machine

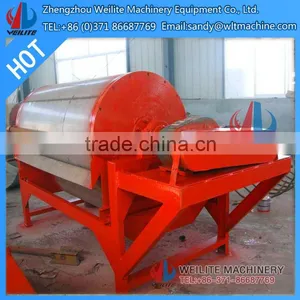

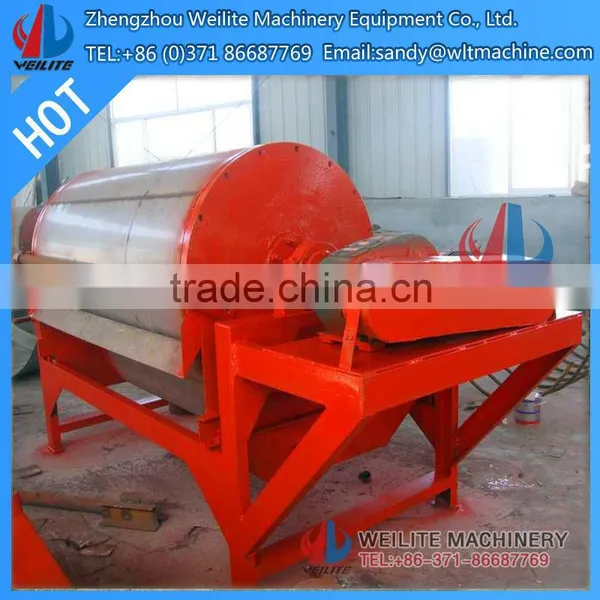

Widely Used Magnetic Separator For Mineral Processing,Mineral Magnetic Separator Machine
- 100 Set / Sets per Month
- Qingdao Shanghai Guanghzou or other places you like !
- T/T Credit Card PayPal
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Magnetic Separator | Production Capacity: | 8-200 t/h |
Place of Origin: | Henan, China | Brand Name: | Weilite | Model Number: | CTB |
Voltage: | 220v/380v/440v or custom-made | Power(W): | 1.5-11kw | Dimension(L*W*H): | custom-made |
Weight: | 0.9-9.6 t | Certification: | ISO9001:2000 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Used Magnetic Separator
The is applicable for wet mineral separation of such materials as magnetite, pyrrhotine, roasted ore and ilmenite, etc. and it is also applicable for iron removal working of such materials as coal, nonmetal and building materials, etc.
Magnetic separator operating principle
When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
Main technical parameters
Model | Magnetic intensity | Capacity(t/h) | Motor power(kw) | Weight(kg) |
CTB600X1200 | 1450 | 8-15 | 1.1 | 910 |
CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
CTB1500X3000 | 1650 | 120-200 | 11 | 9600 |

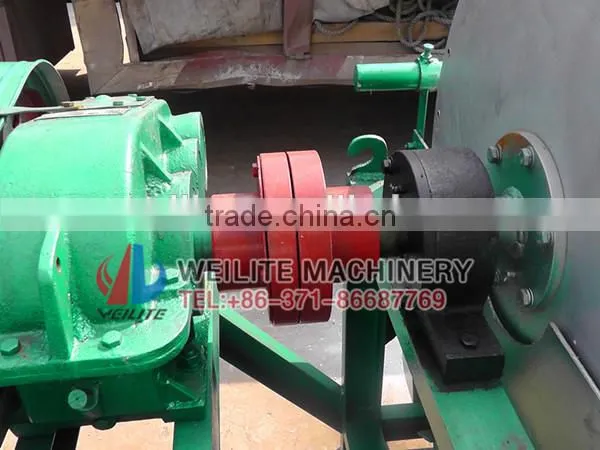

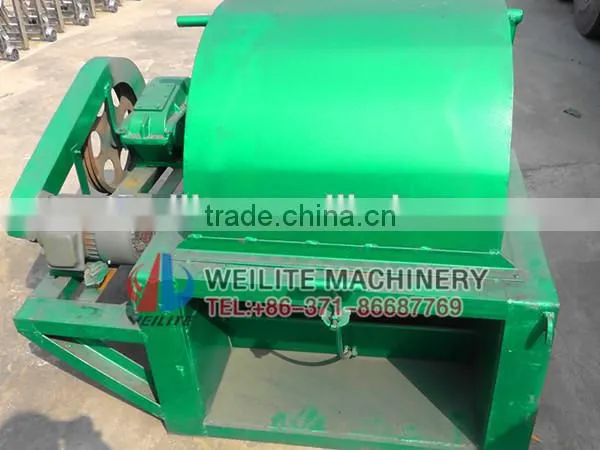

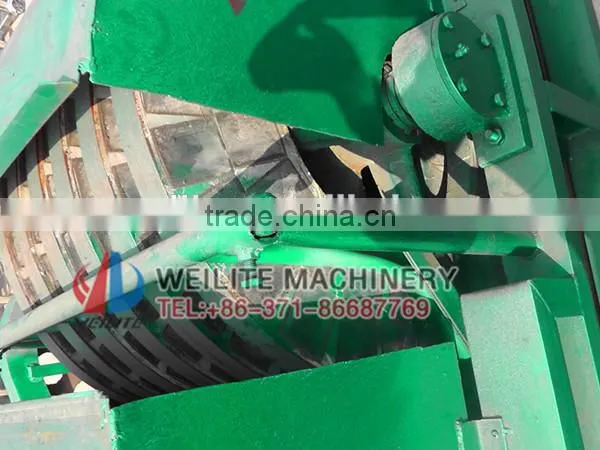

Magnetic separator installation pictures
Before Sales:
1.Guide our customers to deploy the most useful equipment item according to the requirement of theirs.
2.Provide technical detain including equipment bill layout base specification and installation picture to consult
3.Design and manufacture product according to the customers' special requirement
4.Dispatch the technical person to reach the locale to layout field design the best installation flow and scheme to consult for free .
After Sales:
1.Dispatch special worker after service to arrive locale to guide the user to install and debug experiment circulate train operating persons for free.
2.Guarantee of repair; replacement and refund of substandard products, the date of guarantee to keep the machine in good repair is 1 year(excluding abrasion in gear the parts damaged easily the damaged parts because of disoperation)lf the equipment appears hitch during guarantee to keep the machine in good repair our company guarantee to reach the locale after come to hand the user's telephone remove the hitch ensure the user's produce in gear.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1>How is the quality of your products?
- Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
2>What guarantee do you provide?
- If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3>How about price?
- Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
Note:
If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
