Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process

Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process photo-1

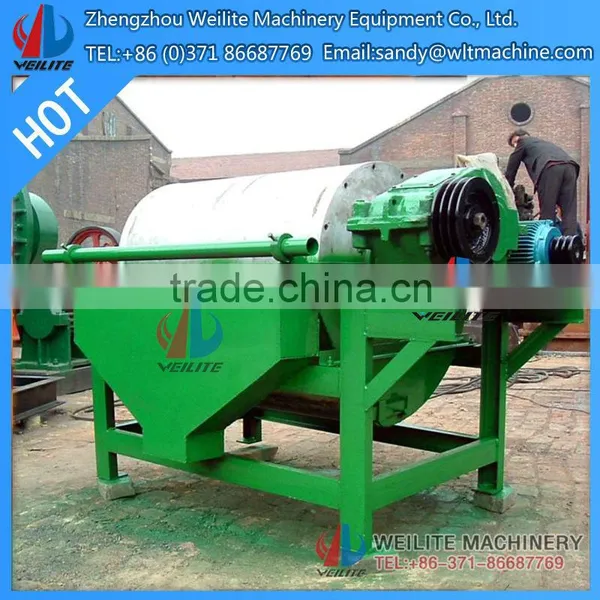

Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process photo-2
Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process photo-3
Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process photo-4
Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process photo-5
Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process photo-6
US$ 1,000 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Magnetic Separator
Production Capacity:
8-200 t/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Guanghzou or other places you like !
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Magnetic Separator
Production Capacity 8-200 t/h
Place of Origin Henan, China
Brand Name Weilite
Model Number CTB
Voltage 220v/380v/440v or custom-made
Power(W) 1.5-11kw
Dimension(L*W*H) custom-made
Weight 0.9-9.6 t
Certification ISO9001:2000
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

 Magnetic Separator Process


Magnetic Separator Process Introduction

The is applicable for wet mineral separation of such materials as magnetite, pyrrhotine, roasted ore and ilmenite, etc. and it is also applicable for iron removal working of such materials as coal, nonmetal and building materials, etc.

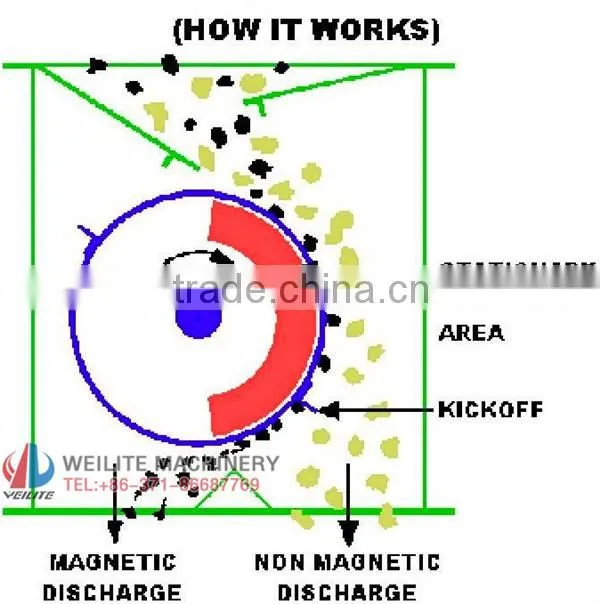

Magnetic separator  operating principle

When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.

Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process



Performance and Features of magnetic separator

The magnetic system of magnetic separator integrates good-quality iron-oxide body materials with rare earth magnetic steel; the average magnetic induction intensity of cylinder surface is 100-600mT. According to the needs of customers, the magnetic separator can be co-current, half-countercurrent, countercurrent, and so on. The magnetic separator has the advantages of simple structure, big processing volume, convenient operation and easy maintenance, etc.



Main technical parameters

Model Magnetic intensity Capacity(t/h) Motor power(kw) Weight(kg)
CTB600X1200 1450 8-15 1.1 910
CTB600X1800 1500 15-25 2.2 1340
CTB750X1800 1550 30-45 3 2050
CTB900X1800 1650 35-60 4 3000
CTB1050X2400 1650 60-95 5.5 5020
CTB1200X3000 1650 80-150 7.5 7800
CTB1500X3000 1650 120-200 11 9600


Packaging & Shipping

Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process

Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process


Our Services

1>Pre-sale services: Enthusiasm

  • We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2>Sale services: Servant

  • Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3>After-sale services: Faithfulness

  • To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,building design, instruction, installation and debugging for free.

4>We provide one-year warranty to make sure your machine runs consistently.

  • We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.

Company Information

Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /

Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process


FAQ

1>How is the quality of your products?

  • Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.

2>What guarantee do you provide?

  • If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

3>How about price?

  • Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.

Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process

Latest Magnetic Separator Process Iron Sand / Magnetic Separator Process





Note:

If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
