Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry

Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry photo-1
Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry photo-2
Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry photo-3
Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry photo-4
Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry photo-5
Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry photo-6
US$ 5,028 - 175,041 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sprial Separator
Production Capacity:
65-1785 t/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port Qingdao port Tianjin port or other China main ports
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Sprial Separator
Production Capacity 65-1785 t/h
Place of Origin Henan, China
Brand Name Weilite
Model Number FG Series
Voltage 220v/380v/440v or customer made
Power(W) 3-44 kw
Dimension(L*W*H) custom-made
Weight 2.7-73 tons
Certification ISO9001:2000
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

                   Spiral Sorting Machine


Spiral sorting machine introduction

The  Spiral Sorting Machine  is widely used to pre-grading and inspection grading in closed circuits when used in the production flow of metal processing. According to the difference in sedimentation rate of mineral particles and mud, the particle sizes of ores with 1.5mm-0.03mm are classified. Waste mud or water for ore sand can be separated from the ores. It’s also usually applied to ore washing, desliming and dehydration and so on.

  Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry



Working Principles:

This series make use of the specific susceptibility of different products, and use magnetic force and mechanical force to separate the magnetic materials. Magnetic field intensity magnetic separator can be divided into low magnetic separator, magnetic separator, high magnetic separator.

Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry

Main technical parameter

Type Spiral diameter  Flume length  Spiral speed Return sand Overflow  Drive Upgrade Weight
  (mm)     (mm)    (r/min) Capacity(t/h)  Capacity(t/h)  (Motor power) (Motor power)   (t)
FG7.5    750   5500   6-10  340-570   65    3.0   manual 2.7
FG10    1000    6500   5.0-8.0   675-1080   110    5.5   manual 4.43
FG12    1200    6500   5.0-8.0  1170-1870   155    5.5   1.5  8.7
FG15    1500    8400   4.0-6.0  1830-2740   235   7.5    2.2  12.5
FG20    2000    8400   4.0-6.0 3240-5400   400   11    2.8   20.5
FG24    2400    9210   3.6 4650-7450   580   15    3.0  25.6
FG30    3000    1250   3.2  11625   890   22    4.0   37.7
2FG12    1200    6500   5.0-8.0  234.-3740   310   5.5x2  1.5x2  14.0

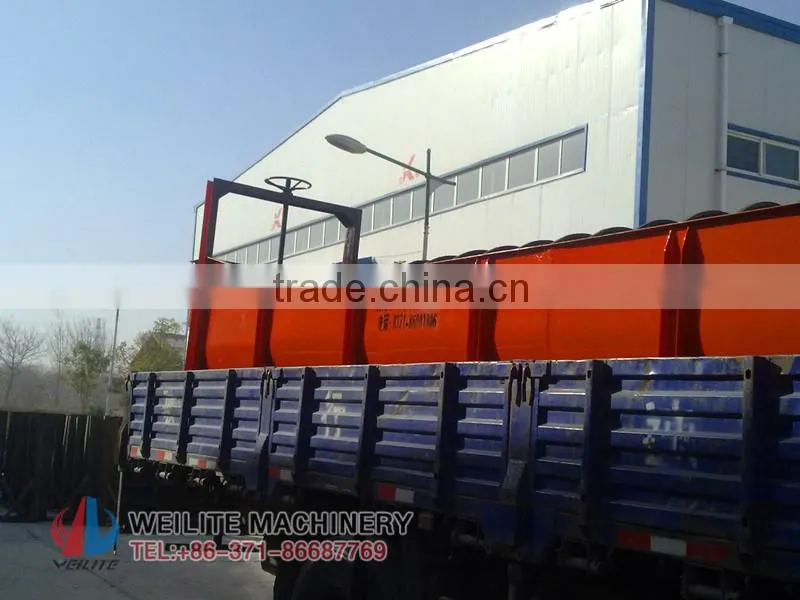

Packaging & Shipping pictures

Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry

Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry


Our Services

1)Pre-sale services: Enthusiasm

  • We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2)Sale services: Servant

  • Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3)After-sale services: Faithfulness

  • To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

4)We provide one-year warranty to make sure your machine runs consistently.

  • We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.



Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry


Company Information

Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc.  Website: /

Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining Industry


FAQ

1.What’s the materials to process?
2.What’s the feature of the materials? Like density, moisture degree,input particle size and out put particle size.
3.What’s your capacity per hour?
4.What’s material for the machine?
5.What’s the machine you want to buy?A single machine or a production line.



Note:

We can design the production line for you according to your requirments. If you need design service, pelase let us know your raw material size,finished products size and capacity.Our engineer will give you the best solution.
