Gold Ore Flotation Machine / Copper Ore Flotation Machine / Flotation Machine
US$ 1,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Flotation Separator
Production Capacity:
0.05-3.5 m³/min
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Guangdong or other inland custom ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zhengzhou Weilite-Spiral Classifiere / Spiral Sorting Machin In Mining IndustryUS$ 5,028 - 175,041MOQ: 1 Set -
Best Price Copper Ore Flotation MachineUS$ 877 - 7,826MOQ: 1 Set
-
Top Quality Iron Ore Magnetic SeparationUS$ 1,000 - 999,999MOQ: 1 Set
-
High Efficiency Iron Ore Magnetic PlantUS$ 1,000 - 999,999MOQ: 1 Set
-
Flotation Machine , Lead Flotation Machine For Iron Ore , Zinc Flotation Machine , Flotation Machine For Iron OreUS$ 870 - 7,830MOQ: 1 Set
Condition
New
Type
Flotation Separator
Production Capacity
0.05-3.5 m³/min
Place of Origin
Henan, China
Brand Name
Weilite
Model Number
XJK series
Voltage
220v or custom-made
Power(W)
1.5-11(kw)
Dimension(L*W*H)
Varies from machines to machines
Weight
468-4130(kg)
Certification
ISO9001
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas

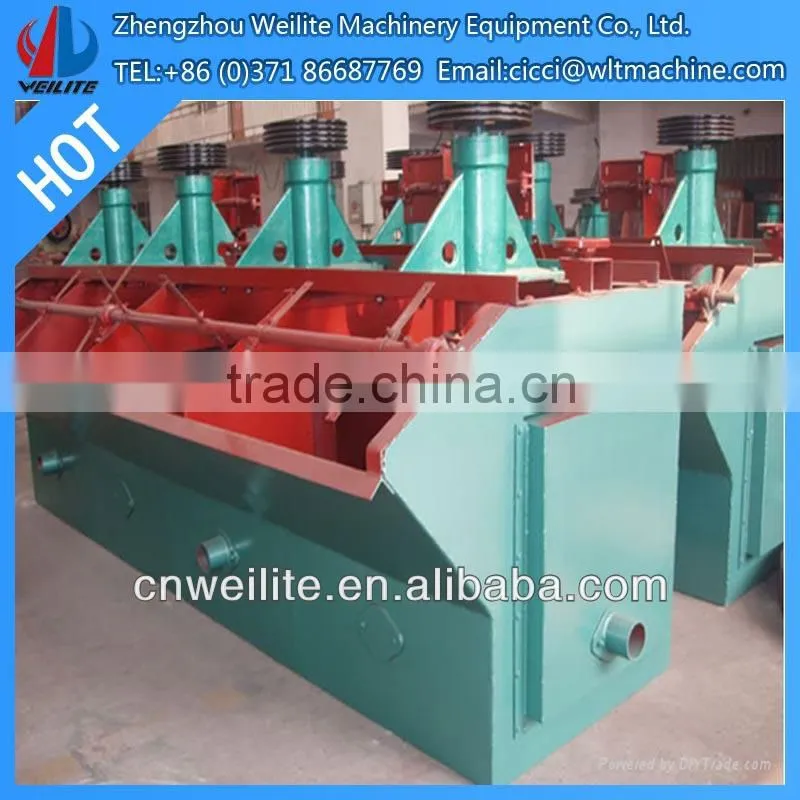

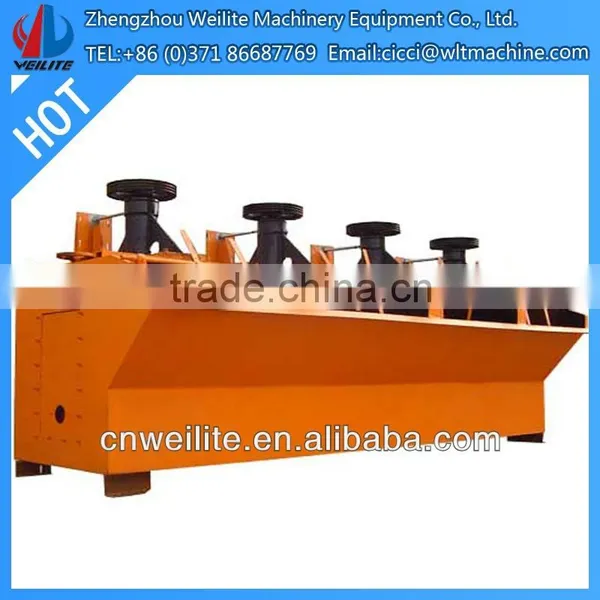

Flotation Machine
Flotation Machine Description
Part One: Brief Introduction of Flotation Machine
Flotation machine applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
Part Two: Features of Flotation Machine
- The impeller is rotated by V-belt of motor and produces centrifugal effect with negative pressure;
- Enough air is inhaled into mixed pulp, and pulp mixes with drug at the same time;
- Mineral sticks on bubble completely and floats on the surface of pulp to form mineralized bubble;
- Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface
Part Three: Working Principle of Flotation Machine
When the floatation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Part Four: Main Technical Parameters of Flotation Machine
Type |
Effective volume(m³/slot) |
Impeller diameter(mm) |
Impeller speed(r/min) |
Scraper speed(r/min) |
Capacity(m³/min) |
Impeller power |
Size four-slot in one body(mm) |
Weight One Body(t/slot) |
|
Type |
Power(kw) |
||||||||
XJK-0.13 |
0.13 |
200 |
600 |
17.5 |
0.05-0.16 |
Y90L-4 |
1.5 |
2100X865X900 |
0.35 |
XJK-0.23 |
0.23 |
250 |
500 |
17.5 |
0.12-0.28 |
Y90L-4 |
1.5 |
2625X1130X1290 |
0.41 |
XJK-0.35 |
0.35 |
300 |
470 |
17.5 |
0.15-0.5 |
Y10L1-4 |
2.2 |
3012X1350X1320 |
0.45 |
XJK-0.62 |
0.62 |
350 |
400 |
16 |
0.3-0.9 |
Y10L2-4 |
3 |
3800X1500X1550 |
0.85 |
XJK-1.1 |
1.1 |
500 |
330 |
26 |
0.6-1.6 |
Y132M-6 |
5.5 |
4680X1820X1950 |
1.4 |
XJK-2.8 |
2.8 |
600 |
280 |
26 |
1.5-3.5 |
Y160L-6 |
11 |
7750X2600X2700 |
2.43 |

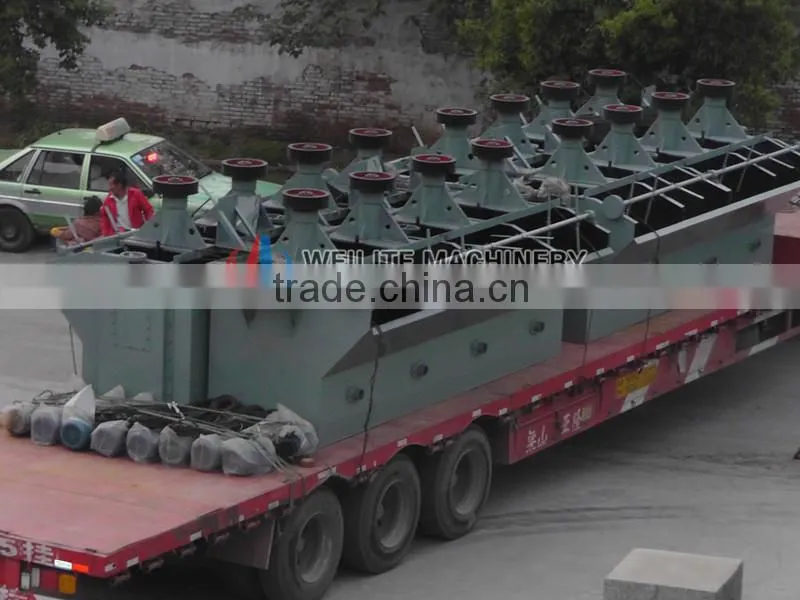

Flotation Machine Packaging & Shipping
Some spare parts are packaged in wooden or iron box and the main machine will be bulk in the container.
Our Services of Flotation Machine
(1) Pre-sale Service:
- Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
- On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
Flotation Machine Company Information
Zhengzhou Weilite Machinery Equipment Co., Ltd. is a manufacturer and exporter oriented enterprise. Our company produces large and medium-sized mining machinery, metallurgical equipment, building materials; our main products are flotation machine, briquette machine, dryer, crusher, sand washing machine,
conveyor belt etc. All of them have enjoyed great popularity in world markets.
If you didn't get the suitable machine in this page, please email me your detailed requirement. We are the manufacturer with over 30 years working experience. We can help you in this matter.
- Contact person: Shayne Wang
- Tel:+86 (0)371 86687769
- Website: /
