Henan manufacturer wholesale gulch-gold wet grinding machine
The schematic diagram of the gulch-gold wet grinding machine, base on it, we made some improvements through the user' feedback
Why do customers choose Huahong?
Specification of gulch-gold wet grinding machine
Wet grinding machine is made of restructuring on the basis of conventional machine, For the traditional machines, the work piece is large and short lifetime, electrical power large, installation cycle is long, the user can not immediately put into production, maintenance and replacement of materials need for large lifting equipment .
Usage and Maintenance of gulch-gold wet grinding machine
1. The normal operation of the mill, before they start feeding.
2. This machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.
3. Should be uniform feeding not erratic, it is best to use the feeder.
4. Bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5. Regular checks of the various parts of the screw is loose.
6. Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts
7. Mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.
8. Machine maintenance, to ensure safety, you must remove the motor belt.

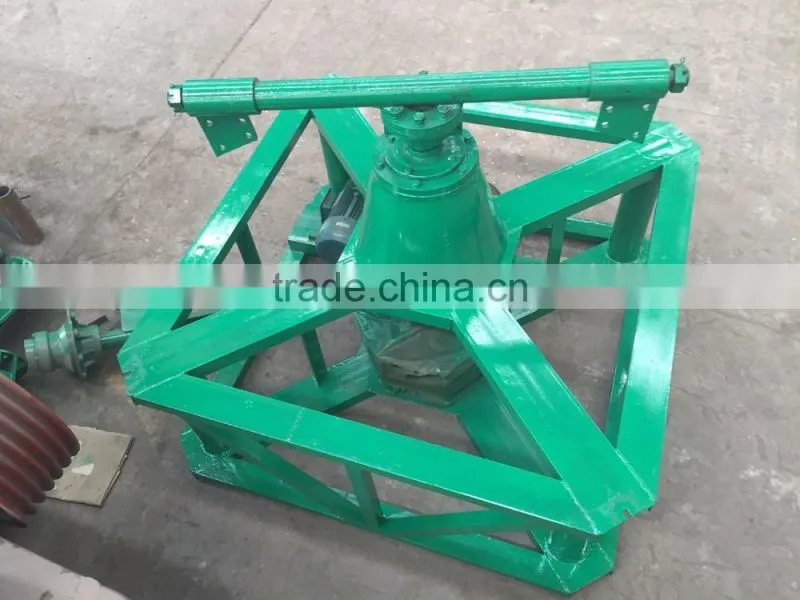

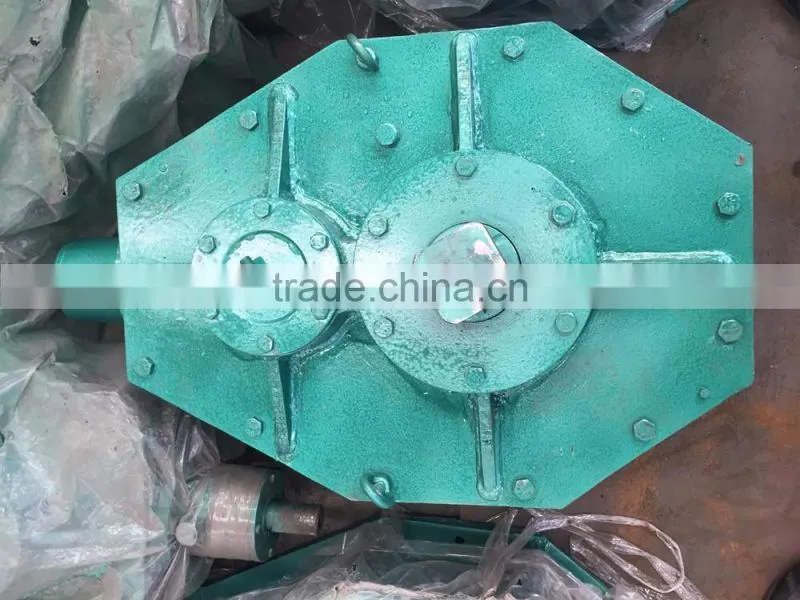

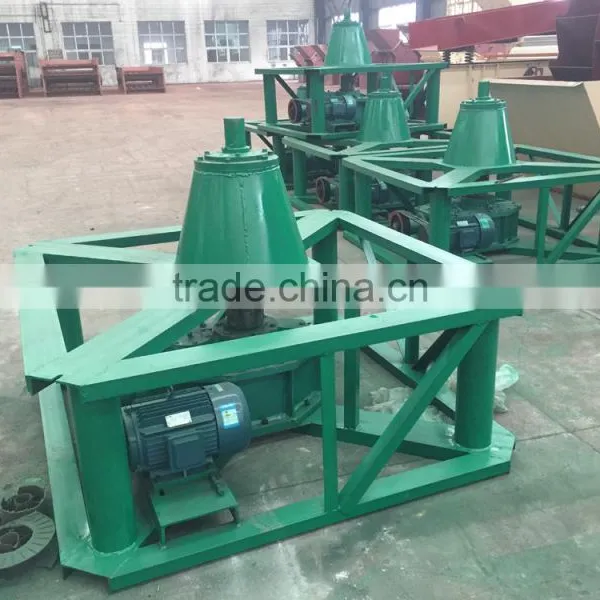

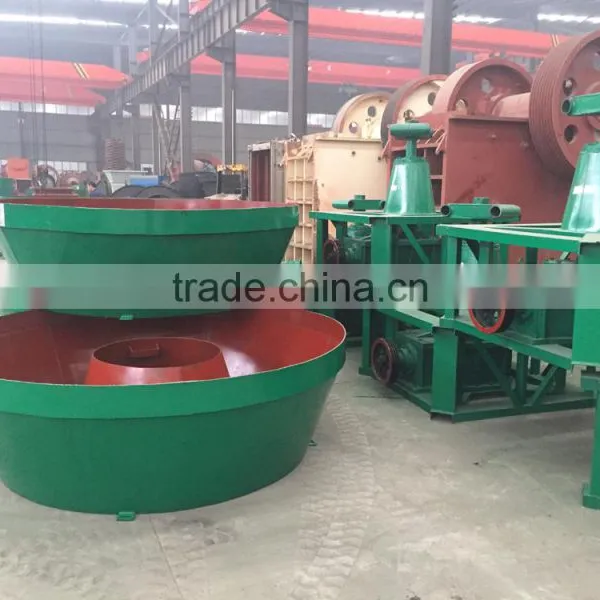

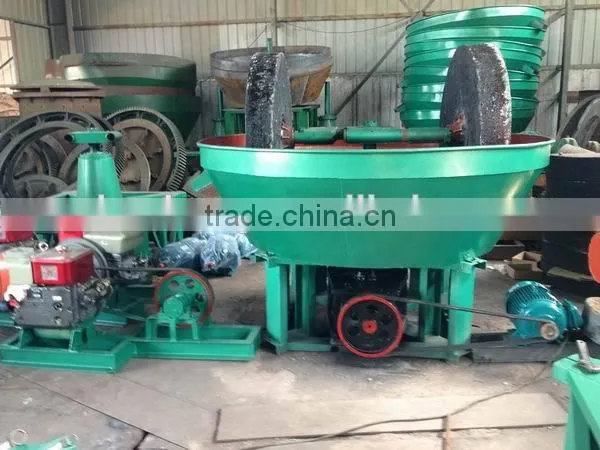

Some detailed pictures of gulch-gold wet grinding machine
Features of gulch-gold wet grinding machine
1.The size of gold sand material has to be blow 30 mm.
2.It's easy to use and energy saving.
3.This way can directly get pure gold
4.It is best suitable for small scale gold mine.

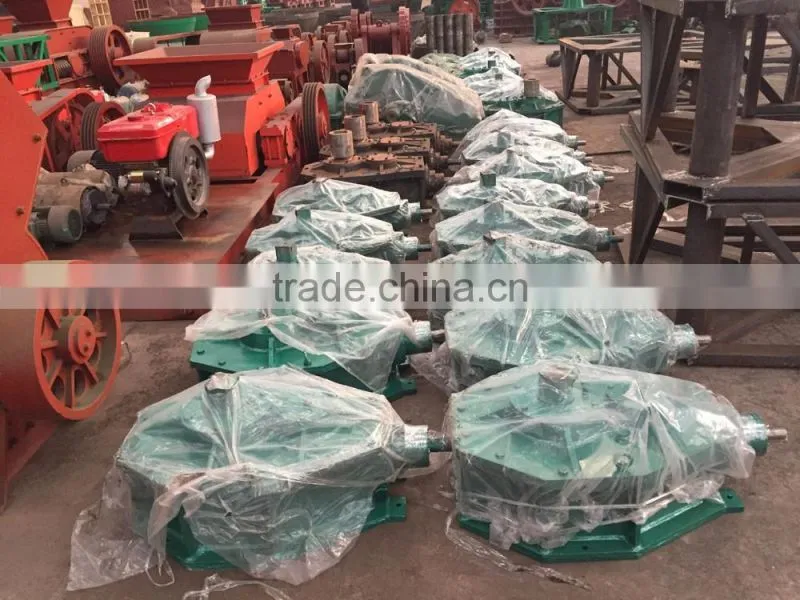

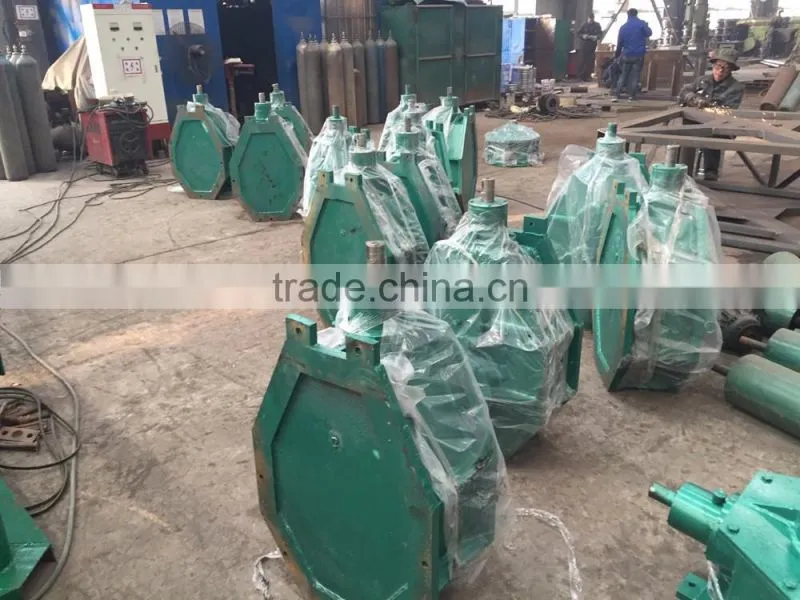

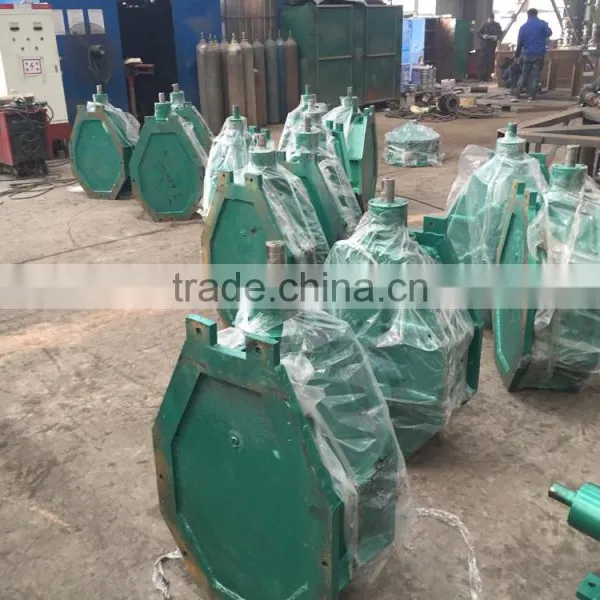

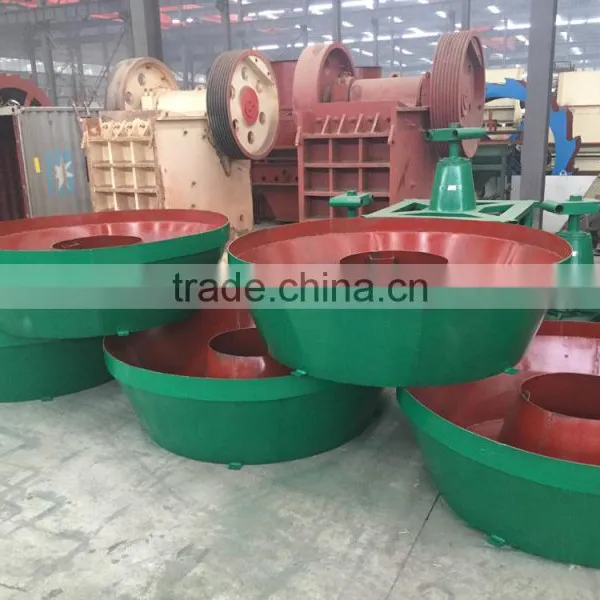

Gulch-gold wet grinding machine in large stock in our factory

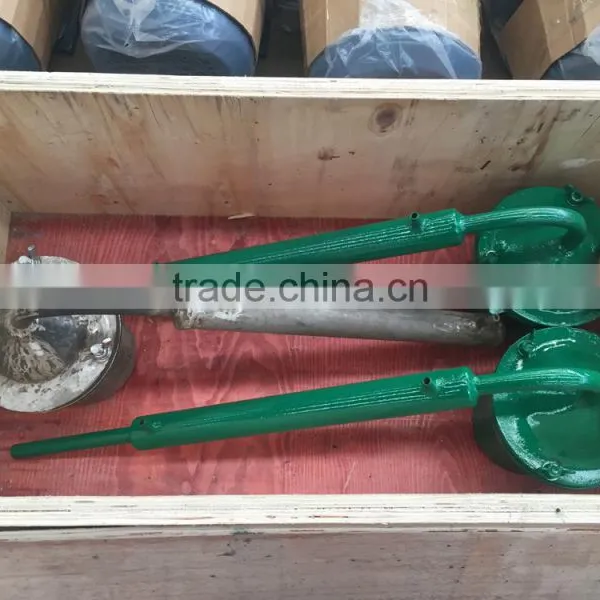

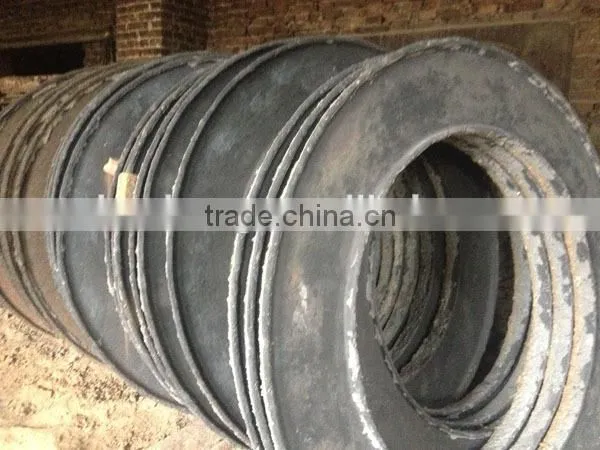

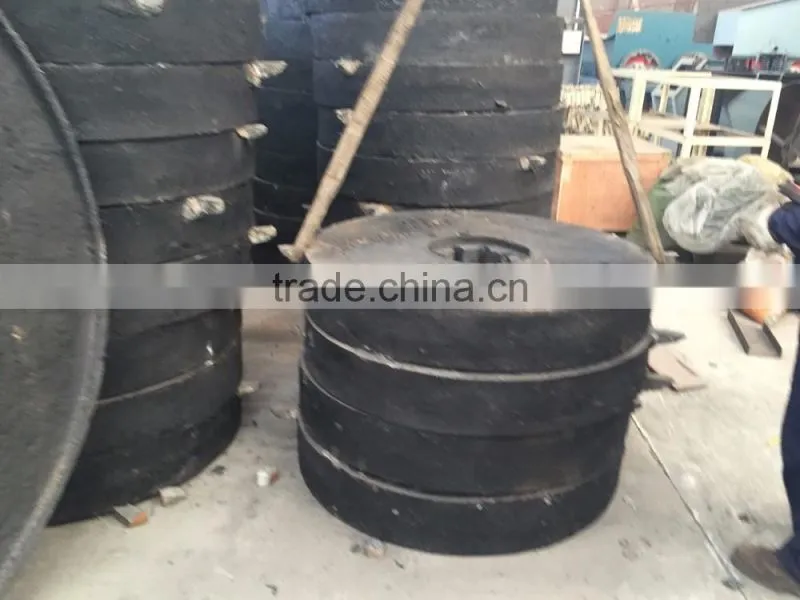

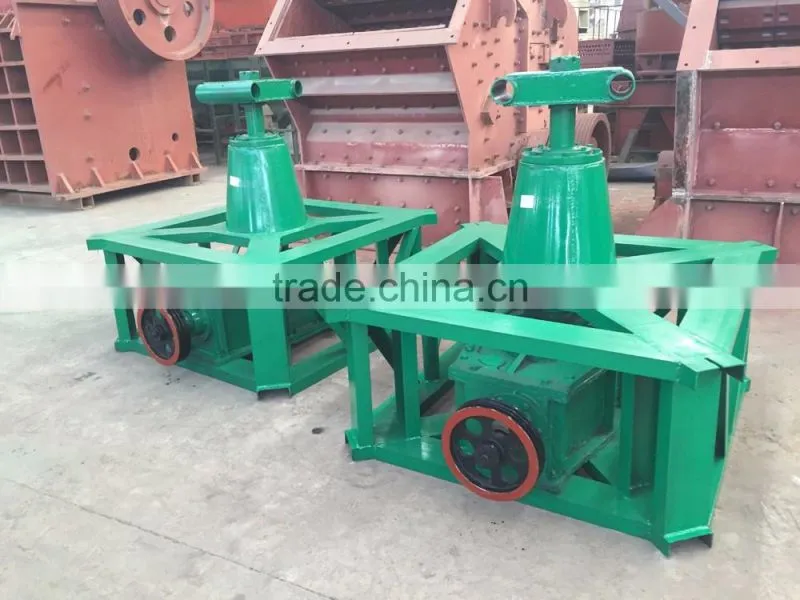

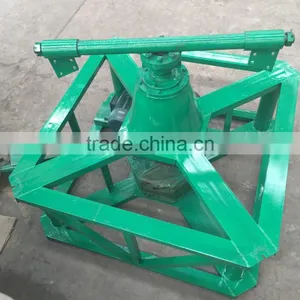

Note: the spare parts of the gold ore separator machine can be sold individually
Foreign Customer in visiting our factory

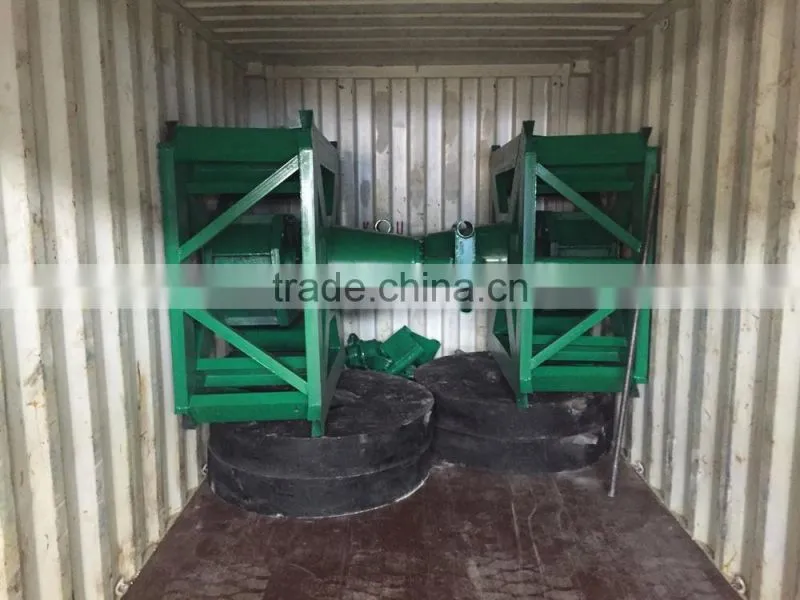

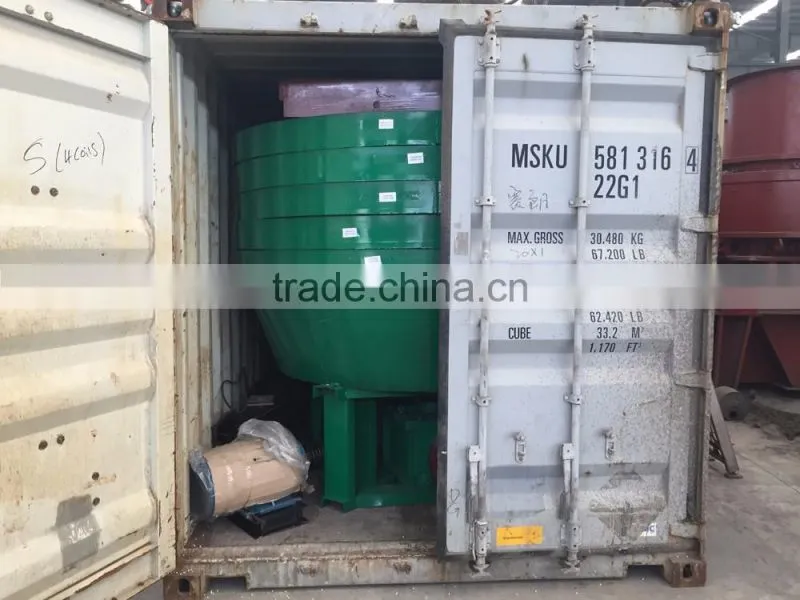

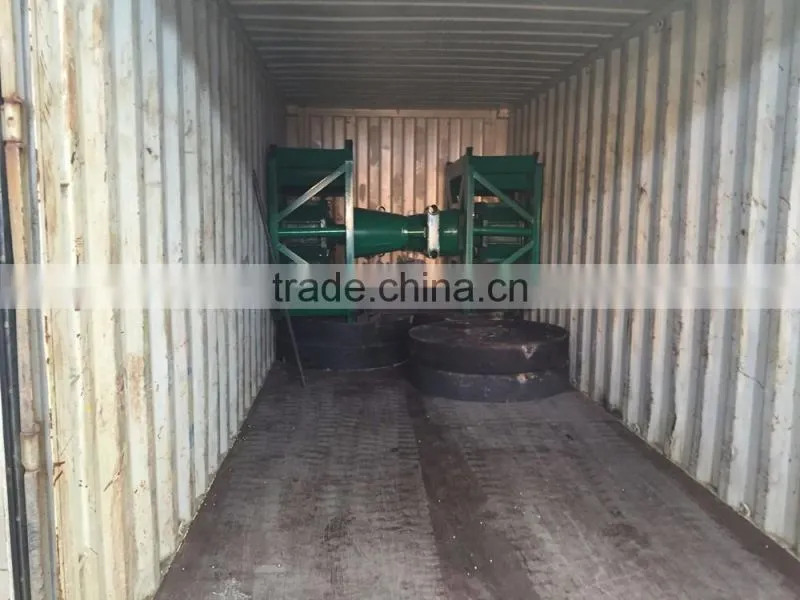

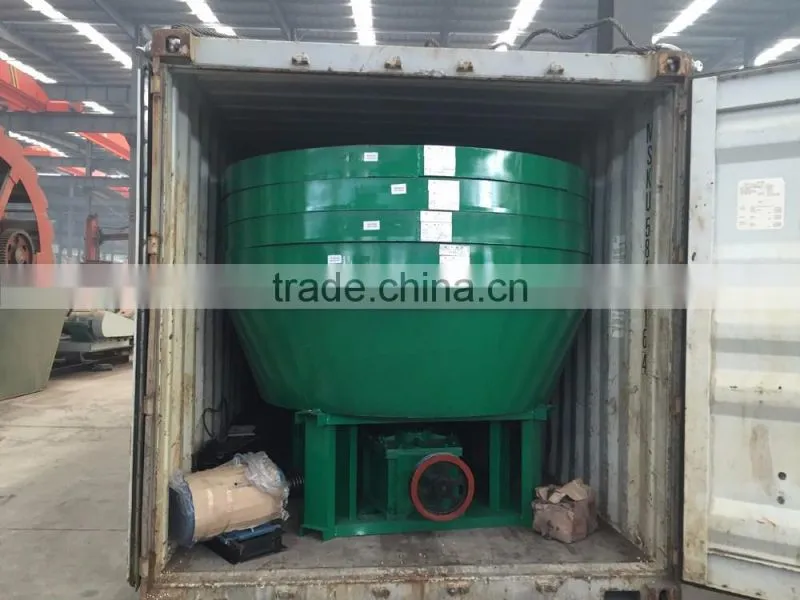

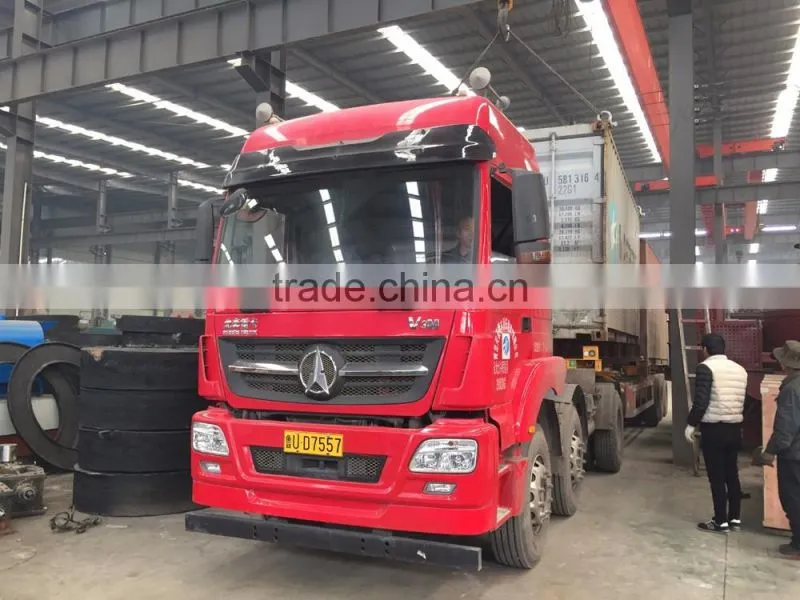

Gulch-gold wet grinding machine in shipment to Ghana
Technical Parameters of gulch-gold wet grinding machine
Model |
Specification |
Input size(mm) |
Process ability (t/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
1600 |
1600×400×±20 |
Less than 30mm |
4 |
20-22 |
6-30 |
17 |
1500A |
1500×400×±20 |
3 |
20-22 |
6-22 |
15 |
|
1500B |
1500×350×±20 |
2.5-3 |
20-22 |
6-22 |
14 |
|
1500C |
1500×300×±20 |
2-2.5 |
20-22 |
6-22 |
12.5 |
|
1400 |
1400×250×±20 |
1.5-2 |
16-18 |
6-18.5 |
9.5 |
|
1300 |
1300×250×±20 |
1.5 |
21-23 |
6-15 |
7.8 |
|
1200A |
1200×220×±20 |
0.9-1.2 |
16-18 |
4-7.5 |
6.0 |
|
1200B |
1200×200×±20 |
0.8-0.1 |
21-23 |
4-7.5 |
5.8 |
|
1100 |
1100×200×±10 |
0.6-0.8 |
16-18 |
4-5.5 |
5.5 |
|
1000 |
1000×200×±10 |
0.5 |
21-23 |
4-5.5 |
4.5 |
|
900 |
900×150×±10 |
0.3 |
17-19 |
3 |
3.2 |
