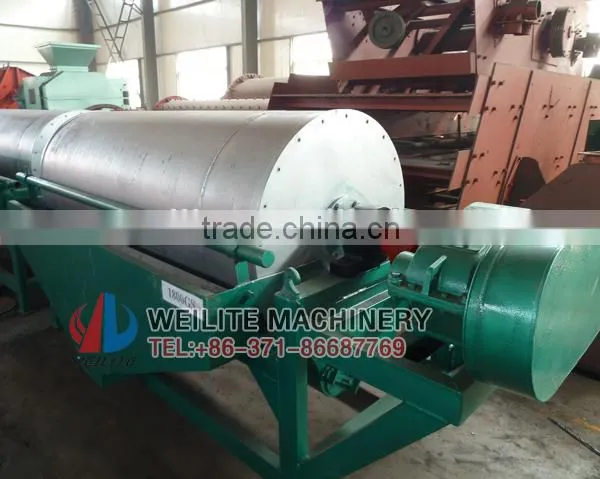

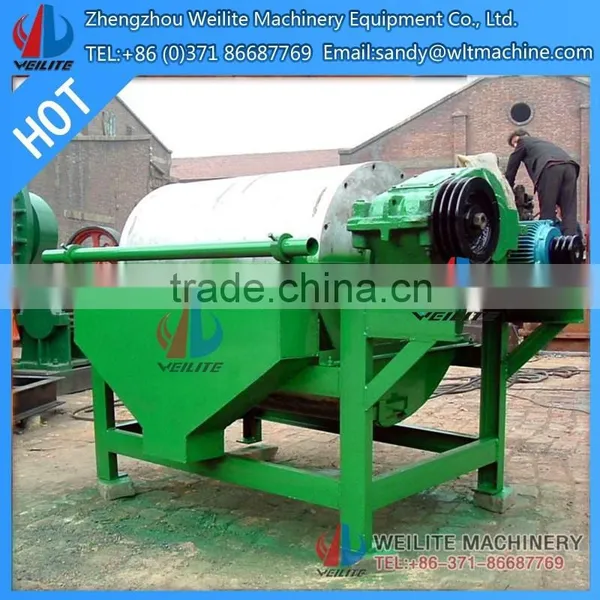

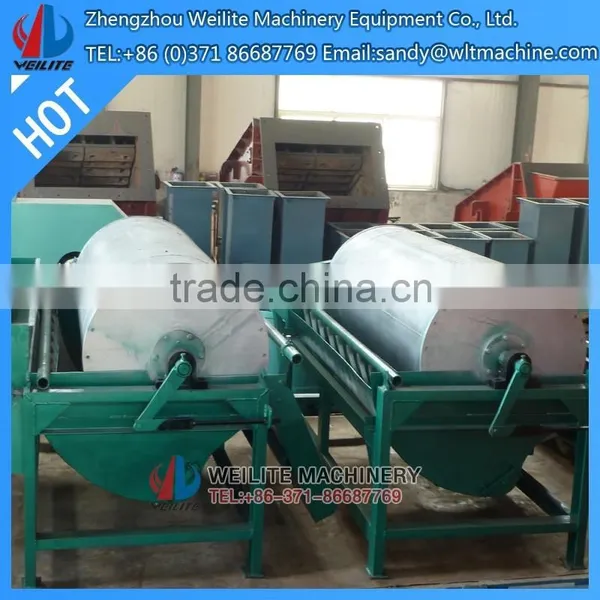

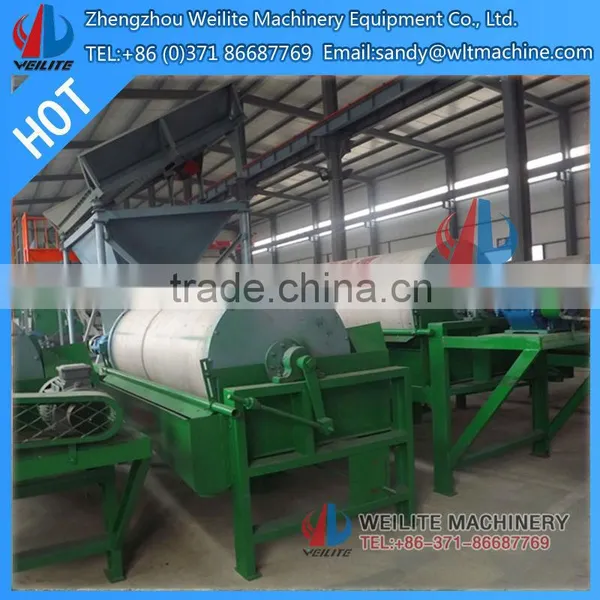

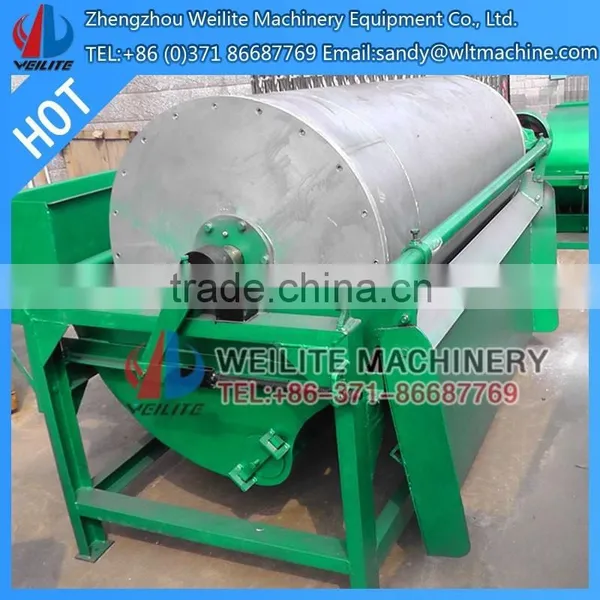

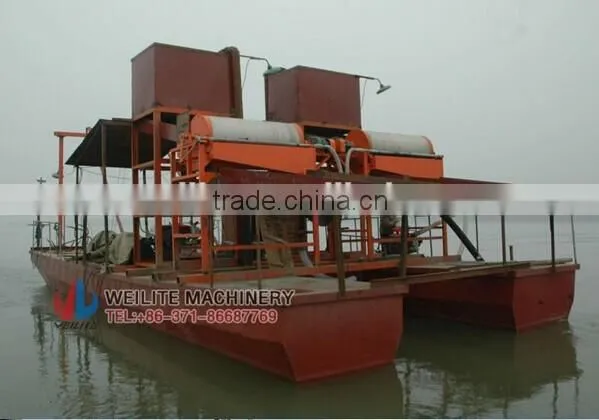

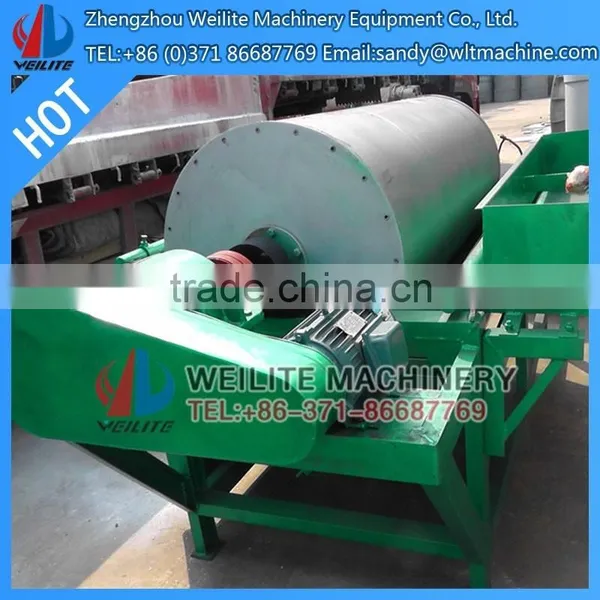

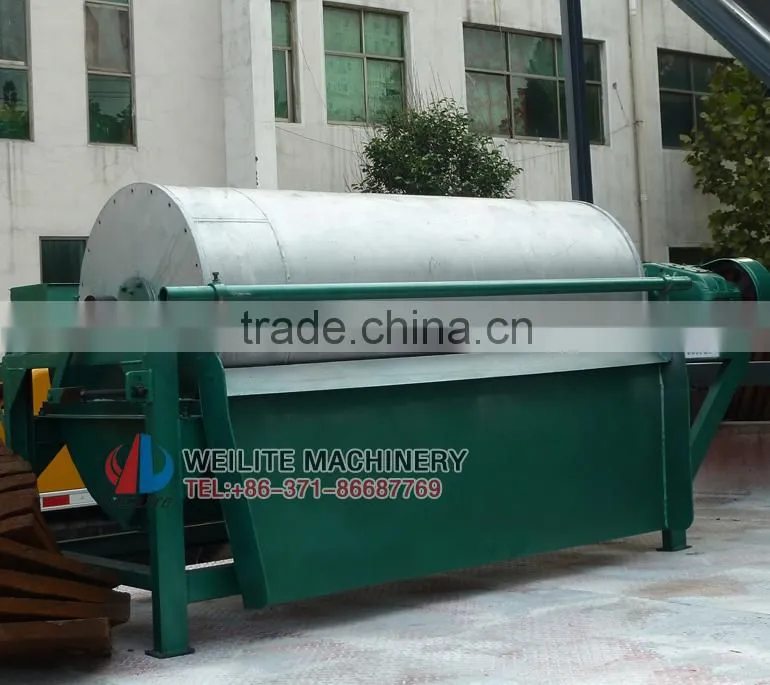

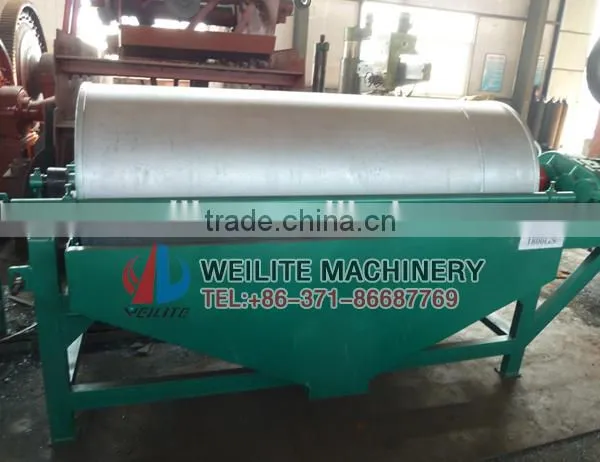

CTB Series Iron Ore Magnetic Separation Machine For Sale
Iron Ore Magnetic Separation Machine
Iron Ore Magnetic Separation machine is suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. And it can remove the iron in the coal, non-metal and construction industries. The magnetic system is made from high quality ferrite magnetic materials and /or rare earth magnet steel. On the shell surface, the magnet intensity is 100-600mt. The wet type permanent magnet cylindrical separator is commonly used for iron ore separation. It is suitable for separating materials with high magnetism. In recent years, it has been used as concentrating equipment in place of magnetic dewatering cell.
Iron Ore Magnetic Separator Machine Operating Principle

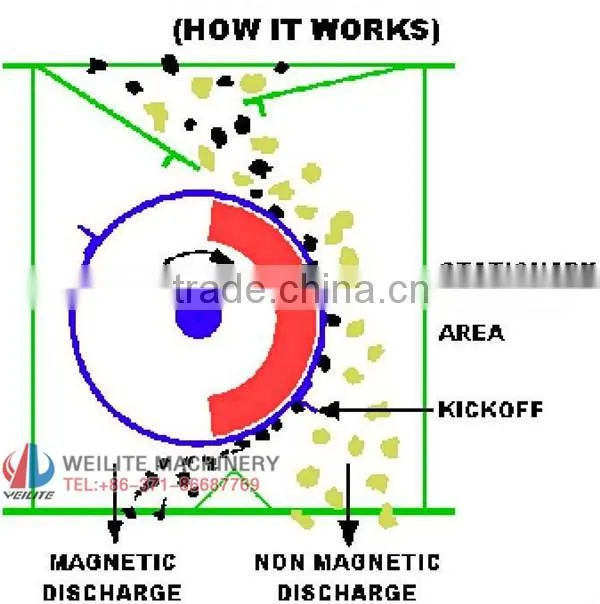

When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
Main technical parameters
| Model | Magnetic intensity | Capacity(t/h) | Motor power(kw) | Weight(kg) |
| CTB600X1200 | 1450 | 8-15 | 1.1 | 910 |
| CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500X3000 | 1650 | 120-200 | 11 |
9600 |
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
Note:
If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
Tel:+86-371-86687769
Contact Name:Ms Sandy Shi
Send Inquiry to This Supplier
