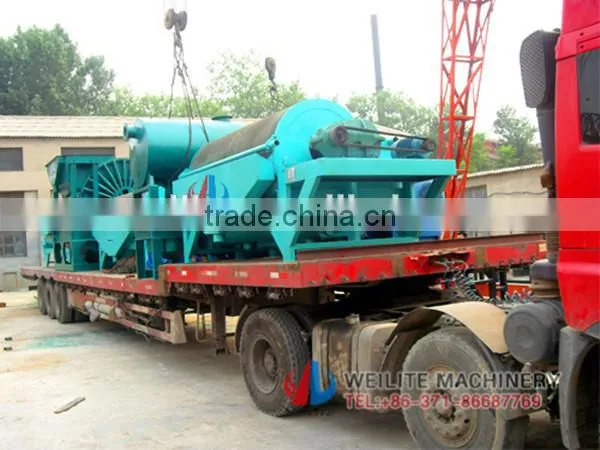

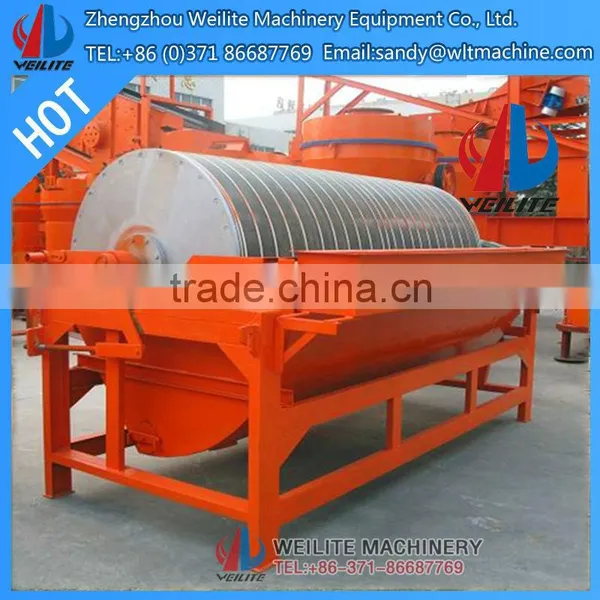

Iron Sand Permanent Magnetic Separator
Wet drum iron sand magnetic separator is usually used for sorting the fine-grained strong magnetic minerals, or removing strong magnetic minerals from non-magnetic minerals. With a deep magnetic field, the machine can make a continuous row of ore feeding and discharge. It also has enough working clearance and high processing capabilities.
Iron sand permanent magnetic separator operating principle
When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
Features of magnetic separator
1. Reasonable structure, easy installation and operation,
2. Applicable to both wet and dry process
3. Permanent magnetic shell, the magnetic intensity on the shell surface can be designed according to actual application, with strong processing capacity and low maintenance cost.
Main technical parameters
| Model | Magnetic intensity | Capacity(t/h) | Motor power(kw) | Weight(kg) |
| CTB600X1200 | 1450 | 8-15 | 1.1 | 910 |
| CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500X3000 | 1650 | 120-200 | 11 |
9600 |
1>Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4>We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1>How is the quality of your products?
- Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
2>What guarantee do you provide?
- If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3>How about price?
- Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
Note:
If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
