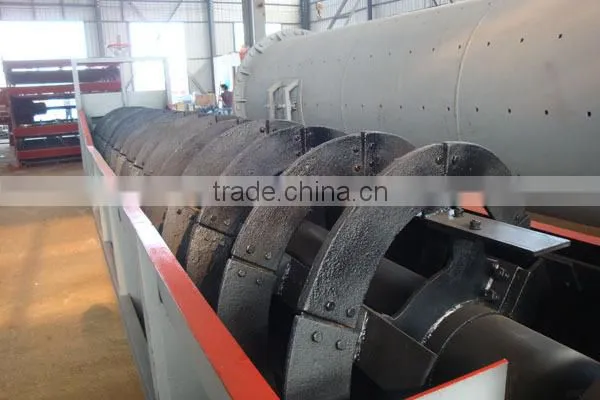

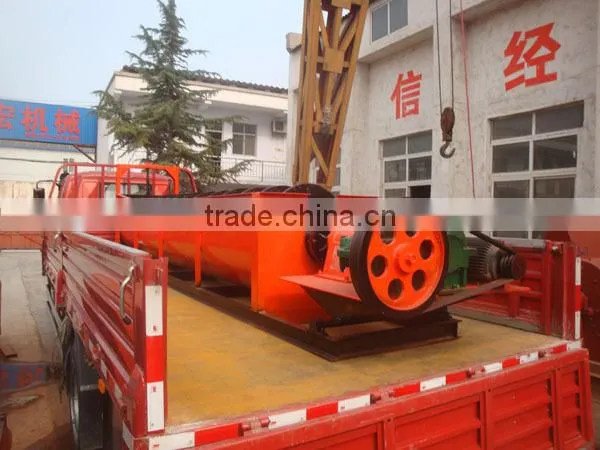

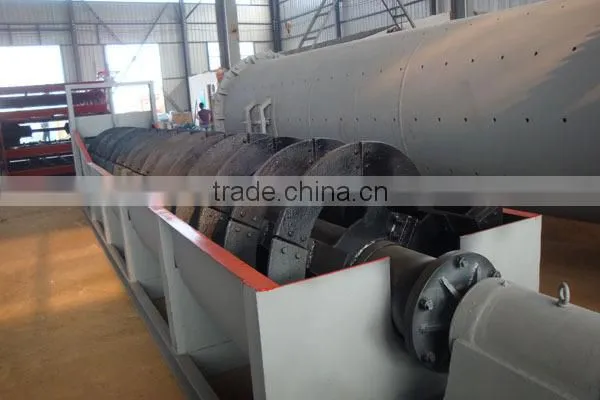

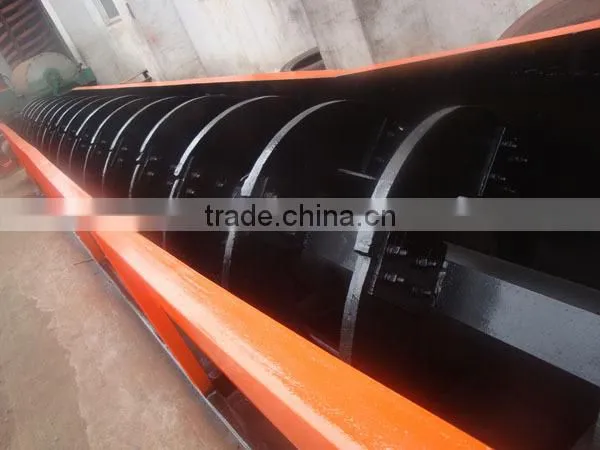

Help CenterNew Improved Best Performance Mineral Processing Screw Classifier/mining Spiral Classifier Machine
Related Products
-
Gold Processing Plant Spiral Separator,spiral Separator Machine PriceUS$ 3,500 - 4,200MOQ: 1 Set -
Mining Equipment Spiral Classifier,spiral Separator for SaleUS$ 3,500 - 4,200MOQ: 1 Set
-
Mineral Processing Spiral Classifier,spiral Classifier MachineUS$ 3,500 - 4,200MOQ: 1 Set
-
Huahong Screw Classifier,screw Separator Made in ChinaUS$ 3,500 - 4,200MOQ: 1 Set
-
Sand Spiral Classifier/Screw Classifier/Spiral Upgrader MachineUS$ 1,000 - 80,000MOQ: 1 Set

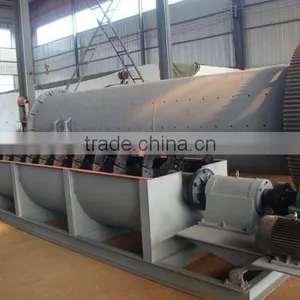

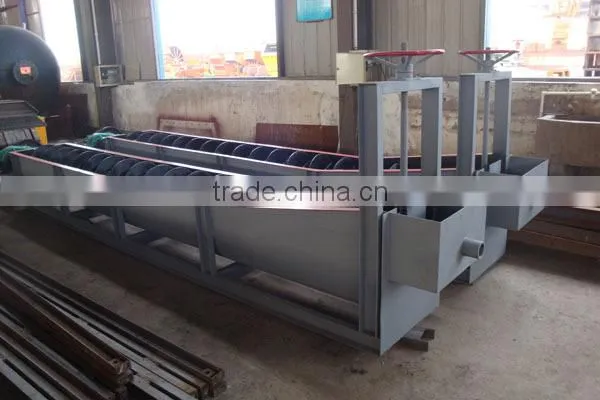

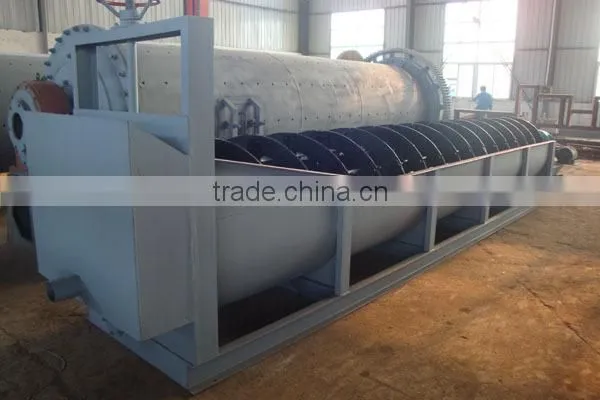

Description of spiral classifier
Classifier machine is widely applied to the concentrating mill and make up closed circuits process with ball mills to separate mineral sand, or in the gravity concentrating mill to classify ore sand and mud, and in the metal process to classify particle size for ore pulp, as well as desliming, dehydration, etc. job in washing operation, dehydration and other operations, the classifier is of simple structure , reliable working, and easy operation etc. characteristics.
Working principle of spiral classifier
Spiral Classifier by means of the theory of different solid particles sizes, different specific gravity, thus settling velocity of the liquid is different, fine mineral particles floating in the water and overflow ,coarse mineral particles sinking to bottom , into the upper by screw and discharge, is a classifier equipment to classify , able to filter feed powder grinded from grinding mill , and then using a spiral piece screw the coarse material into the feed inlet of mill , to filter out the fine material discharged from the overflow tube. The machine base is made of channel steel, body is welded by steel plate.

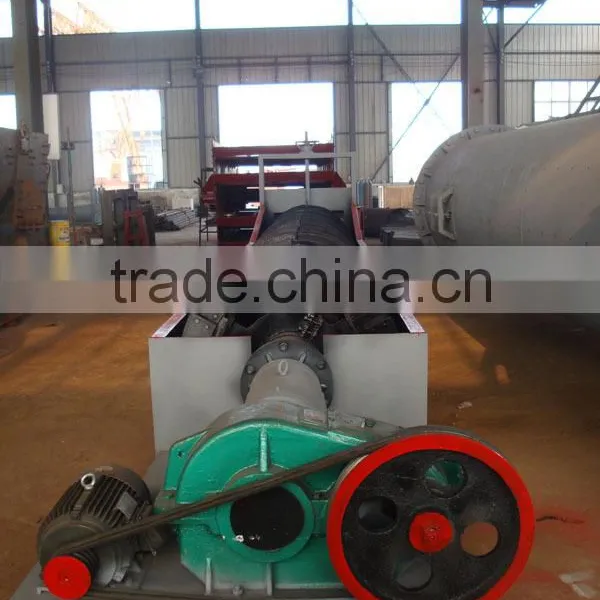

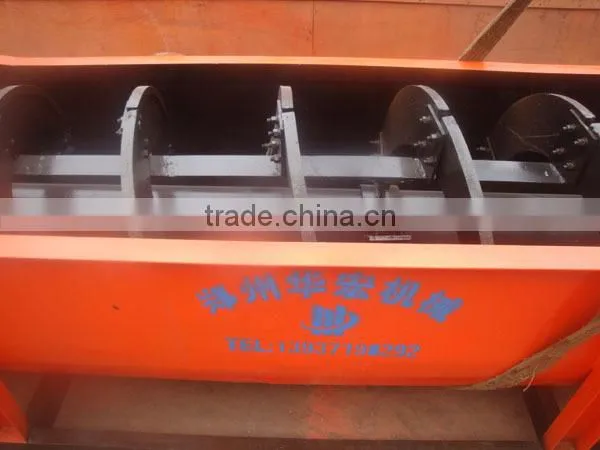

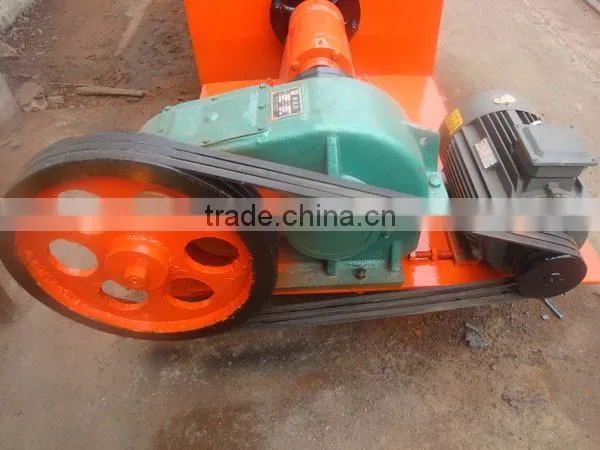

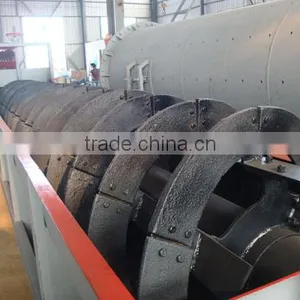

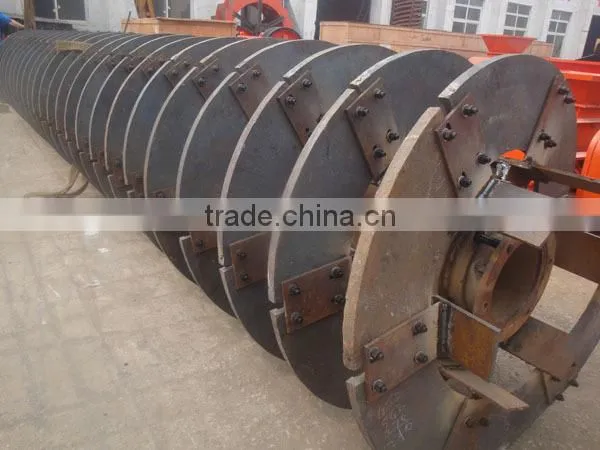

The Structure of spiral classifier Spiral Classifier is mainly equipment by transmission, spirochetes, tank, lifting mechanism, lower seat (bush) and valve gate , hoisting plant include power operation and manual operation two parts.

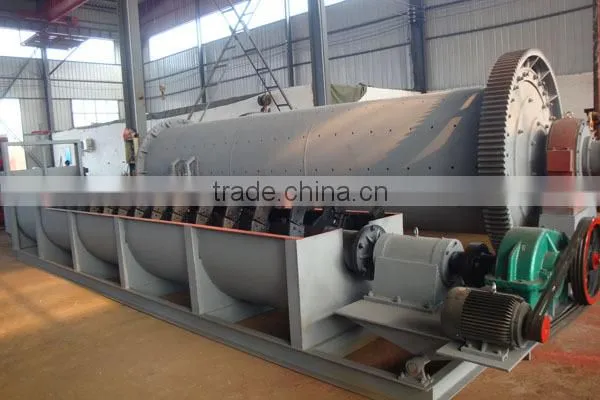

Relative equipment of spiral classifier
Technical Parameters of spiral classifier
| Model | Spiral Diameter(mm) | Tank Length(mm) | Screw Speed(r/min) | Production Capacity | Motor Power | Weight(t) | ||
| Sand Return | Overflow | Drive | Lifting | |||||
| FG7.5 | 750 | 5500 | 6-10 | 340-70 | 65 | 3.0 | manual operation | 2.7 |
| FG10 | 1000 | 6500 | 5.0-8.0 | 675-080 | 110 | 5.5 | manual operation | 4.43 |
| FG12 | 1200 | 6500 | 5.0-8.0 | 1170-870 | 155 | 5.5 | 1.5 | 8.7 |
| FG15 | 1500 | 8400 | 4.0-6.0 | 1830-2740 | 235 | 7.5 | 2.2 | 12.5 |
| FG20 | 2000 | 8400 | 4.0-6.0 | 3240-5400 | 400 | 11 | 2.8 | 20.5 |
| FG24 | 2400 | 9210 | 3.6 | 3240-5400 | 580 | 15 | 3.0 | 25.6 |
| FG30 | 3000 | 1250 | 3.2 | 11625 | 890 | 22 | 4.0 | 37.7 |
| 2FG12 | 1200 | 6500 | 5.0-8.0 | 2340-3740 | 310 | 5.5*2 | 1.5*2 | 14.0 |
| 2FG15 | 1500 | 8400 | 4-6.0 | 3660-5480 | 470 | 7.5*2 | 1.5*2 | 21.1 |
| 2FG20 | 2000 | 8400 | 3.0-5.5 | 7780-11880 | 800 | 11*2 | 2.8*2 | 36.5 |
| 2FG24 | 2400 | 9210 | 3.6 | 13600 | 1160 | 15*2 | 3*2 | 46.8 |
| 2FG30 | 3000 | 12500 | 2.0-3.0 | 14600-23400 | 1785 | 22*2 | 4*2 | 73.0 |
| FC12 | 1200 | 8400 | 5-8 | 1170-1870 | 120 | 7.5 | 2.2 | 10.4 |
| FC15 | 1500 | 10500 | 4.0-6.0 | 1830-2740 | 185 | 7.5 | 2.2 | 16.8 |
| FC20 | 2000 | 12900 | 2.0-5.5 | 3895-5940 | 320 | 15 | 2.8 | 29.1 |
| FC24 | 2400 | 14200 | 2.5-4.0 | 4650-7450 | 455 | 18.5 | 4 | 41.0 |
| FC30 | 3000 | 14200 | 3.2 | 11625 | 705 | 30 | 4 | 56.8 |
| 2FC15 | 1500 | 10500 | 4.0-6.0 | 2280-5480 | 370 | 7.5*2 | 1.5*2 | 30.7 |
| 2FC20 | 2000 | 12900 | 3.0-5.5 | 6480-11800 | 640 | 11*2 | 3*2 | 50.0 |
| 2FC24 | 2400 | 14200 | 3.67 | 9300-14900 | 910 | 18.5*2 | 4*2 | 67.9 |
| 2FC30 | 3000 | 14300 | 3.2 | 23300 | 1400 | 30*2 | 4*2 | 85.3 |
Our company and certificates:
1.Zhengzhou Huahong Machinery&Equipment Co., Ltd is a famous manufacturer of mining and sandstone production equipment in China. The main products include mineral-processing equipment such as crusher, ball mill, magnetic separator, flotation machine, rotary kiln and sandstone production equipment such as vibrating screen, sand making machine etc.
2.We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3.We attach the development of scientific research, and form strategic partnership with the major research institutions.
4.Honesty and credit is our bussiness value , customer first.First-class quality and first-class service is the business life.
Crushers: jaw crusher, hammer crusher, ring hammer crusher, cone crusher, impact crusher, fine crusher, compound crusher, roll crusher ,etc.
Stone production line: vibrating feeder, crusher, vibrating screen, belt conveyor, sand washing machine.
Beneficiation production line: vibrating feeder, crusher, ball mill, classifier, magnetic separator, mixing tank, flotation machine, rotary dryer.
Other equipments: rod mill, chute feeder, swing feeder, linear vibrating screen, trommel screen, spiral chute, shaking table and large angle belt conveyor.
Back to home to view more products: https://img13.fr-trading.com/
Learn more further detail product information,please don't forget to leave a massage for me .
