Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Mineral Processing Spiral Classifier,spiral Classifier Machine

Mineral Processing Spiral Classifier,spiral Classifier Machine

Name: Mineral Processing Spiral Classifier,spiral Classifier Machine
Brand: Huahong
SKU: 101734243
Availability: InStock

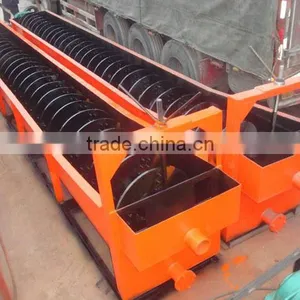

Mineral Processing Spiral Classifier,spiral Classifier Machine thumbnail-1

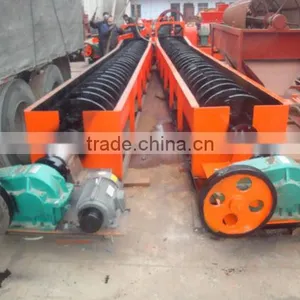

Mineral Processing Spiral Classifier,spiral Classifier Machine thumbnail-2

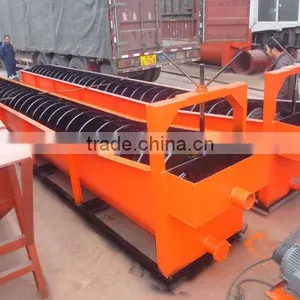

Mineral Processing Spiral Classifier,spiral Classifier Machine thumbnail-3

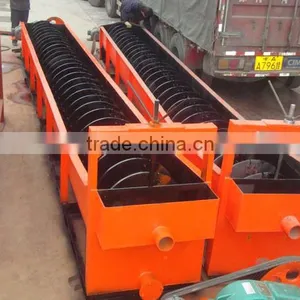

Mineral Processing Spiral Classifier,spiral Classifier Machine thumbnail-4

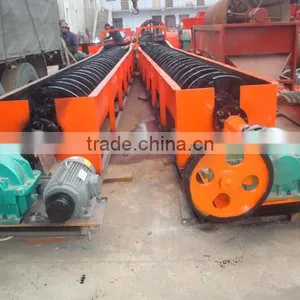

Mineral Processing Spiral Classifier,spiral Classifier Machine thumbnail-5

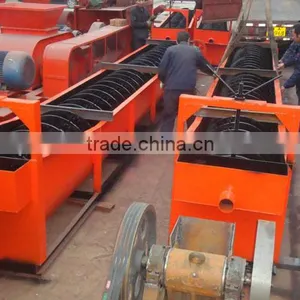

Mineral Processing Spiral Classifier,spiral Classifier Machine thumbnail-6

Mineral Processing Spiral Classifier,spiral Classifier Machine photo-1

Mineral Processing Spiral Classifier,spiral Classifier Machine photo-2

Mineral Processing Spiral Classifier,spiral Classifier Machine photo-3

Mineral Processing Spiral Classifier,spiral Classifier Machine photo-4

Mineral Processing Spiral Classifier,spiral Classifier Machine photo-5

Mineral Processing Spiral Classifier,spiral Classifier Machine photo-6

US$ 3,500 - 4,200 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Sprial Separator

Production Capacity:

High ratio

Contact Supplier Request Quote Chat Now

Zhengzhou Huahong Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Tianjin Dalian or as required

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Sprial Separator

Production Capacity High ratio

Place of Origin Henan, China

Brand Name Huahong

Model Number FG10

Voltage as your actual situation

Power(W) 5.5kw

Dimension(L*W*H) According to the detailed information

Weight 4.43t

Certification ISO9001,2008

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

spiral classifier:
It is used for excessive powder separation in dry type sand production line, and it is very convenient

Introduction of mineral processing spiral classifier,spiral classifier machine:

Washer is ideal for scrubbing difficult washing minerals, Tough insoluble clays, conglomerates and soft stone, and certain cemented aggregates are too difficult to clean properly in normal screw machines. The log washer thoroughly scouring, breaks down, and cleans the toughest materials. These high quality, highly durable machines perform well under the toughest clay conditions with minimum power, water and downtime.

Working principle of mineral processing spiral classifier,spiral classifier machine:

Feed material is normally delivered between two to four feet from the feed end of the box and is subjected to an aggressive washing action resulting from the intermeshing paddle design. The impellers perform two functions: they help convey material and are the catalyst during material scrubbing. The clean material works uphill, between the shafts, and is discharged out from the bottom of the box. Useless materials are absorbed into water and carried over a weir on either side of the box.

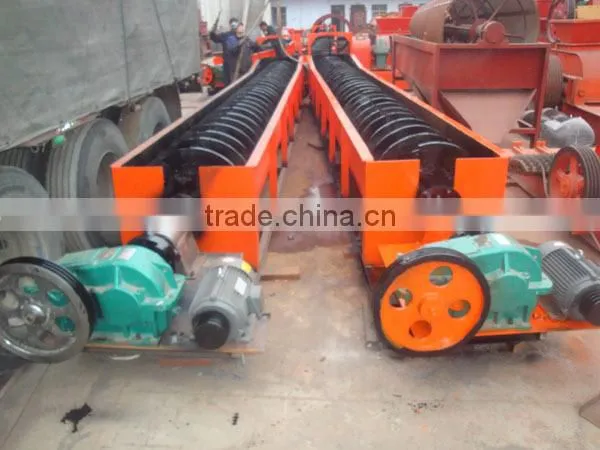

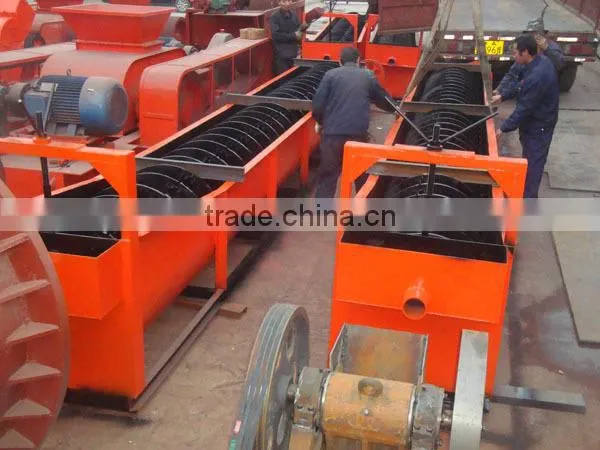

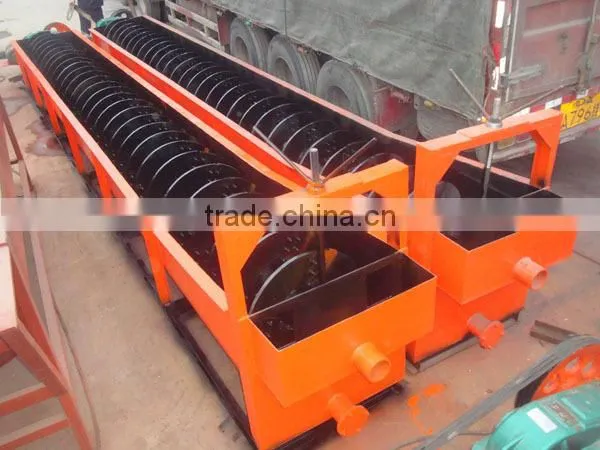

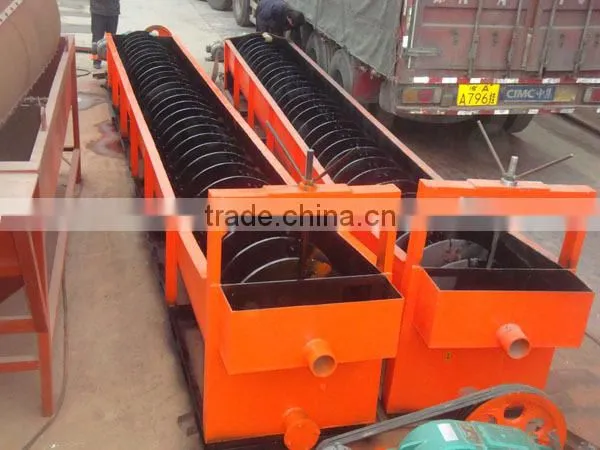

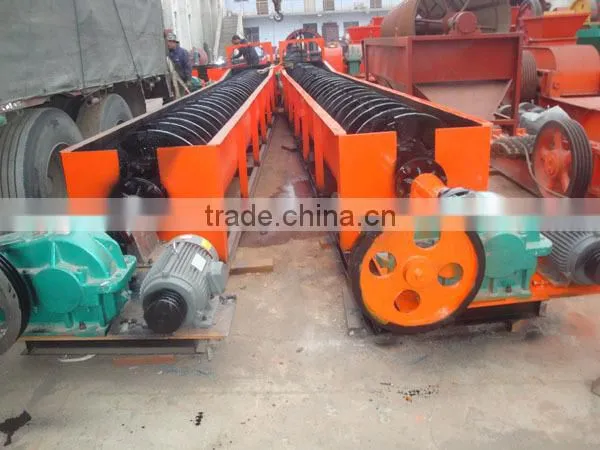

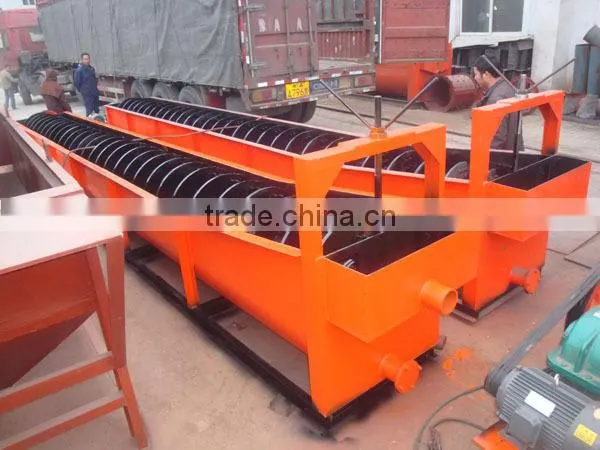

View of Mineral processing spiral classifier,spiral classifier machine:

Main technical parameters:

Model	Spiral Diameter	Length of pool	Rotation Speed (r/min)	Motor Power(kw)		Dimensions(mm)			Weight (t)
Model	Spiral Diameter	Length of pool	Rotation Speed (r/min)	Drive	Lift	L	W	H	Weight (t)
FG-3	300	3000	12-30	1.1	--	3850	490	1140	0.7
FG-5	500	4500	8-12.5	1.1	--	5430	680	1480	1.6
FG-7	750	5500	6-10	3	--	6270	980	1820	2.7
FG-10	1000	6500	5-8	5.5	--	7590	1240	2380	4.43
FC-10	1000	8400	5-8	7.5	--	9600	1240	2680	6
FG-12	1200	6500	4-6	7.5	2.2	8180	1570	3110	8.5
FC-12		8400		7.5	2.2	10370	1540	3920	11
2FG-12		6500		15	4.4	8230	2790	3110	15.8
2FC-12		8400		15	4.4	10370	2790	3920	17.6
FG-15	1500	8300	4-6	7.5	2.2	10410	1880	4080	12.5
FC-15		10500		7.5	2.2	12670	1820	4890	16.8
2FG-15		8300		15	4.4	10410	3390	4080	22.1
2FC-15		10500		15	4.4	12670	3370	4890	30.7
FG-20	2000	8400	3.6-5.5	11-15	3	10790	2530	4490	20.5
FC-20		12900		11-15	3	15610	2530	5340	28.5
2FG-20		8400		22-30	6	11000	4600	4490	35.5
2FC-20		12900		22-30	6	15760	4600	5640	48.7
FG-24	2400	9130	3.67	15	3	11650	2910	4970	25.7
FC-24		14130		18.5	4	16580	2930	7190	41
2FG-24		9130		30	6	12710	5430	5690	45.8
2FC-24		14130		37	8	17710	5430	8000	67.9
