Specifications
Spiral separator:1.High capcity
2.Four types available
3.For mineral classification
4.For various particle size
Introduction of gold processing plant spiral separator,spiral separator machine price:
Spiral classifier also named spiral separator.Spiral classifier is one of mineral processing equipment.Classifier mainly have four types:high-grading single-screw and double-screw, sinking type single-screw and double-screw classifier.
Working principle of gold processing plant spiral separator,spiral separator machine price:
Sprial classifier is equipment using the theory that different gravels have different specific gravity and sedimentation rates in liquid to do the classifying work. The equipment allows the fine ore to float in the water, while coarse ore sinks to the bottom, then the coarse materials are sent to the feeding mouth, and the fine materials are discharged from overflow pipe.
Classifier often used after ball mill. It can filter the output grinded by ball mill hierarchically, and send the rough material into the ball mill by spiral and discharge the fine one from the overflow tube.
Classifier often used after ball mill. It can filter the output grinded by ball mill hierarchically, and send the rough material into the ball mill by spiral and discharge the fine one from the overflow tube.

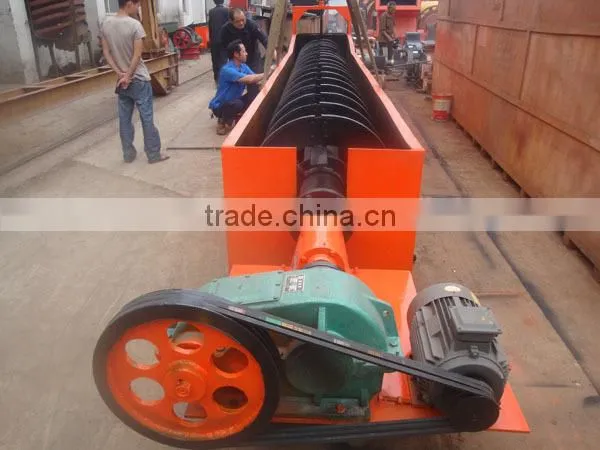

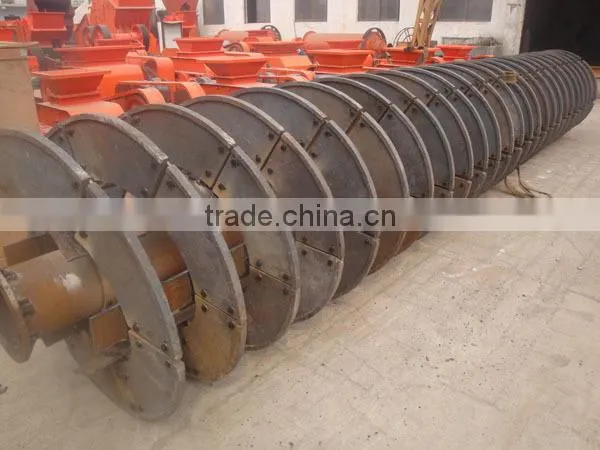

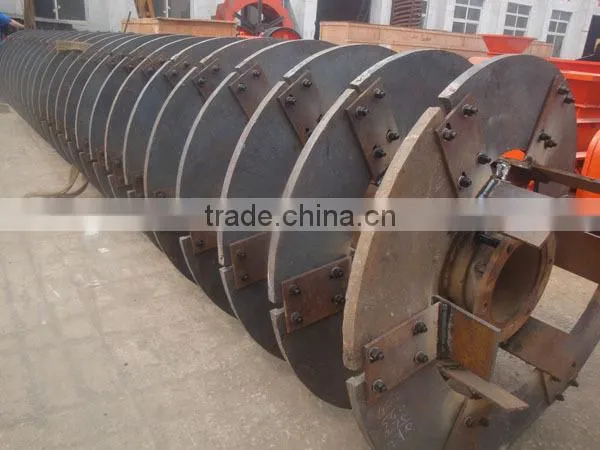

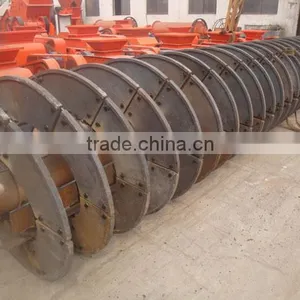

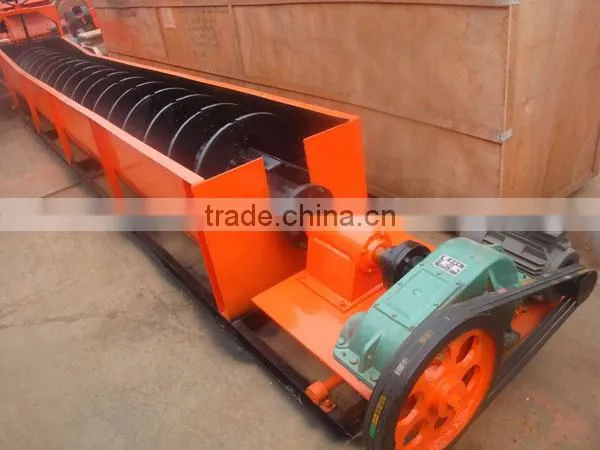

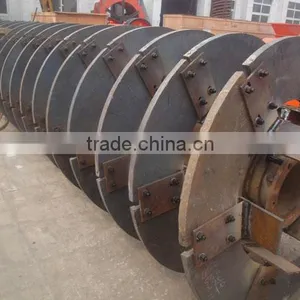

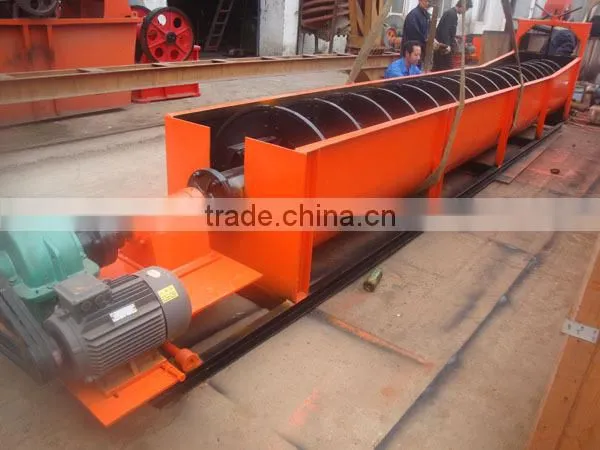

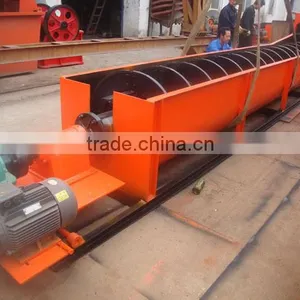

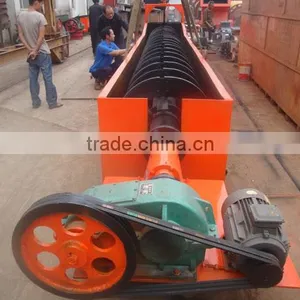

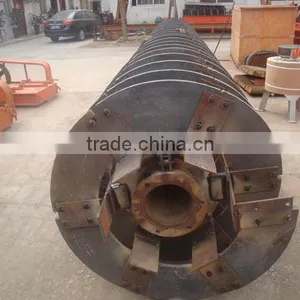

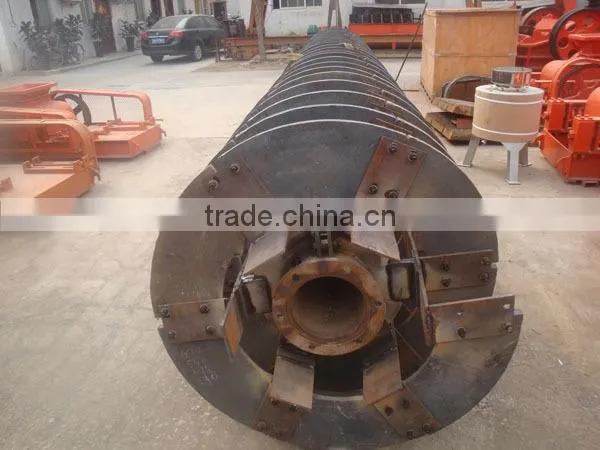

View of gold processing plant spiral separator,spiral separator machine price:
Main technical parameters:
Model |
Spiral Diameter
|
Length of pool |
Rotation Speed (r/min) |
Motor Power(kw) |
Dimensions(mm) |
Weight (t) |
|||
Drive |
Lift |
L |
W |
H |
|||||
FG-3 |
300 |
3000 |
12-30 |
1.1 |
-- |
3850 |
490 |
1140 |
0.7 |
FG-5 |
500 |
4500 |
8-12.5 |
1.1 |
-- |
5430 |
680 |
1480 |
1.6 |
FG-7 |
750 |
5500 |
6-10 |
3 |
-- |
6270 |
980 |
1820 |
2.7 |
FG-10 |
1000 |
6500 |
5-8 |
5.5 |
-- |
7590 |
1240 |
2380 |
4.43 |
FC-10 |
8400 |
7.5 |
9600 |
1240 |
2680 |
6 |
|||
FG-12 |
1200 |
6500 |
4-6 |
7.5 |
2.2 |
8180 |
1570 |
3110 |
8.5 |
FC-12 |
8400 |
7.5 |
2.2 |
10370 |
1540 |
3920 |
11 |
||
2FG-12 |
6500 |
15 |
4.4 |
8230 |
2790 |
3110 |
15.8 |
||
2FC-12 |
8400 |
15 |
4.4 |
10370 |
2790 |
3920 |
17.6 |
||
FG-15 |
1500 |
8300 |
4-6 |
7.5 |
2.2 |
10410 |
1880 |
4080 |
12.5 |
FC-15 |
10500 |
7.5 |
2.2 |
12670 |
1820 |
4890 |
16.8 |
||
2FG-15 |
8300 |
15 |
4.4 |
10410 |
3390 |
4080 |
22.1 |
||
2FC-15 |
10500 |
15 |
4.4 |
12670 |
3370 |
4890 |
30.7 |
||
FG-20 |
2000 |
8400 |
3.6-5.5 |
11-15 |
3 |
10790 |
2530 |
4490 |
20.5 |
FC-20 |
12900 |
11-15 |
3 |
15610 |
2530 |
5340 |
28.5 |
||
2FG-20 |
8400 |
22-30 |
6 |
11000 |
4600 |
4490 |
35.5 |
||
2FC-20 |
12900 |
22-30 |
6 |
15760 |
4600 |
5640 |
48.7 |
||
FG-24 |
2400 |
9130 |
3.67 |
15 |
3 |
11650 |
2910 |
4970 |
25.7 |
FC-24 |
14130 |
18.5 |
4 |
16580 |
2930 |
7190 |
41 |
||
2FG-24 |
9130 |
30 |
6 |
12710 |
5430 |
5690 |
45.8 |
||
2FC-24 |
14130 |
37 |
8 |
17710 |
5430 |
8000 |
67.9 |
||
