Huahong Screw Classifier,screw Separator Made in China

Huahong Screw Classifier,screw Separator Made in China thumbnail-1

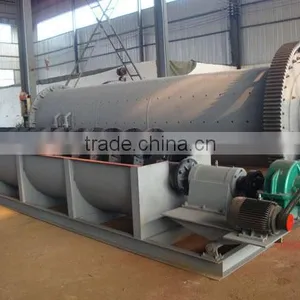

Huahong Screw Classifier,screw Separator Made in China thumbnail-2
Huahong Screw Classifier,screw Separator Made in China thumbnail-3
Huahong Screw Classifier,screw Separator Made in China thumbnail-4
Huahong Screw Classifier,screw Separator Made in China thumbnail-5
Huahong Screw Classifier,screw Separator Made in China thumbnail-6
Huahong Screw Classifier,screw Separator Made in China photo-1
Huahong Screw Classifier,screw Separator Made in China photo-2
Huahong Screw Classifier,screw Separator Made in China photo-3
Huahong Screw Classifier,screw Separator Made in China photo-4
Huahong Screw Classifier,screw Separator Made in China photo-5
Huahong Screw Classifier,screw Separator Made in China photo-6
US$ 3,500 - 4,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sprial Separator
Production Capacity:
High ratio
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin Dalian or as required
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Sprial Separator
Production Capacity High ratio
Place of Origin Henan, China
Brand Name Huahong
Model Number FG10
Voltage as your actual situation
Power(W) 5.5kw
Dimension(L*W*H) According to the detailed information
Weight 4.43t
Certification ISO9001,2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

screw separator:
1. low price and hot sale
2. rolling bearing
3. making lubrication more reliable
4. firm and reliable

Description of Huahong screw classifier,screw separator made in China:

Screw Classifier is widely used in mineral processing plant to match with the ball mill and form a closed-circuit circulation to process mining sand. or used in gravity mine-selection plant for classifying sand and mine mud, and grading sand according to the particle size, desliming, dewatering in the mine washing process.This machine has simple structure, reliable operation, convenient operation, etc.



Structure of Huahong screw classifier,screw separator made in China:

The classifying machine is mainly composed of the transmission device, the helicoid, tub, lifting mechanism and lower bearings (bearings) and raw ore discharge valve.The bottom seat adopts V-iron, and the machine frame is welded and connected steel board. The water inlet and axis of the screw axle adopt durable pig iron cover



Features of Huahong screw classifier,screw separator made in China:

1. It is used for excessive powder separation in dry type sand production line, and it is very convenient to control powder content to meet users' requirements.

2. It is suitable for medium-sized dry type sand making production line.

3. The powder (0.00-0.75 mm) content can be adjusted between 2% -15%.

4. Powder quality is easy to control, and fine adjustment is convenient, flexible and reliable.

5. It uses tile lining, so repair rate is very low.

6. The inverter control technology makes operation more concise.

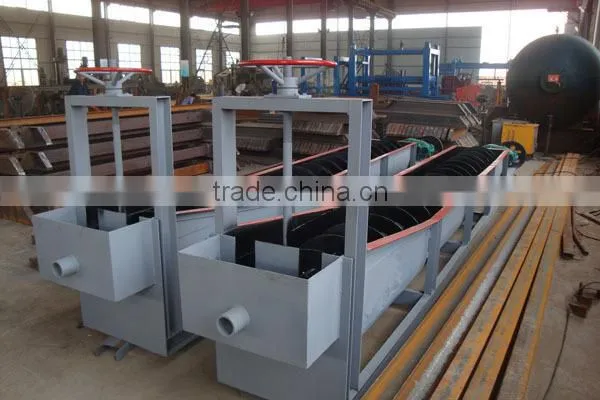

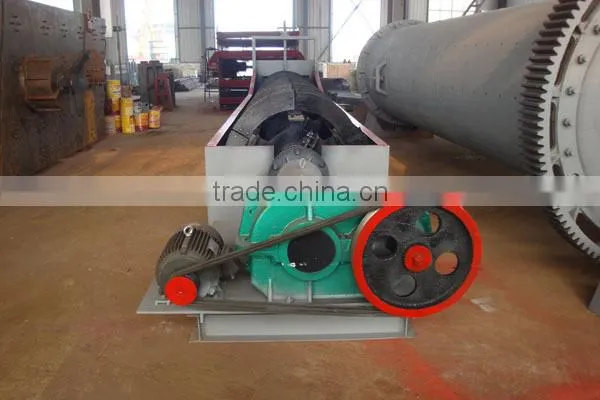

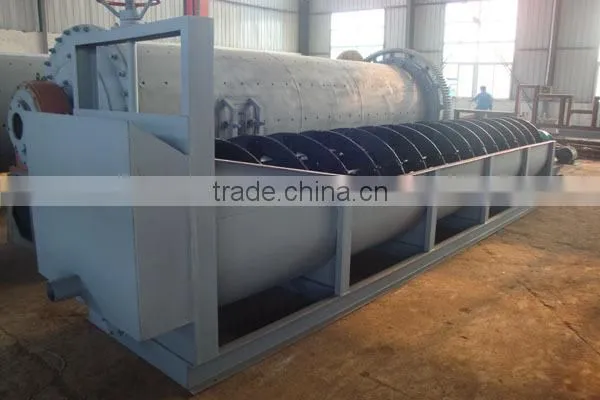

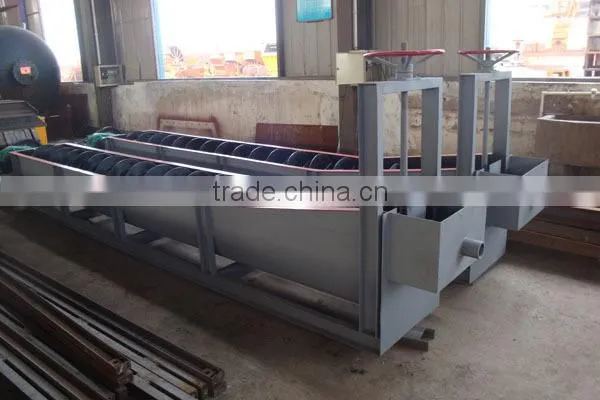

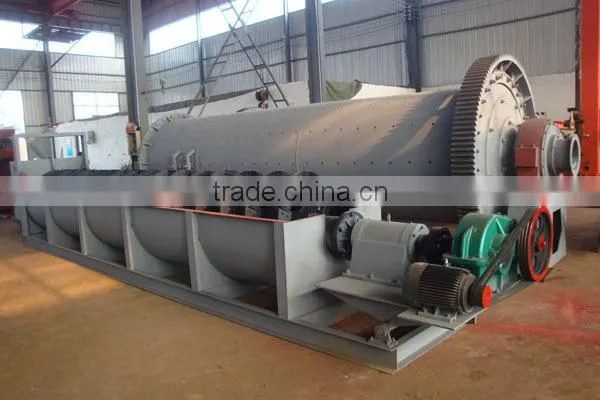

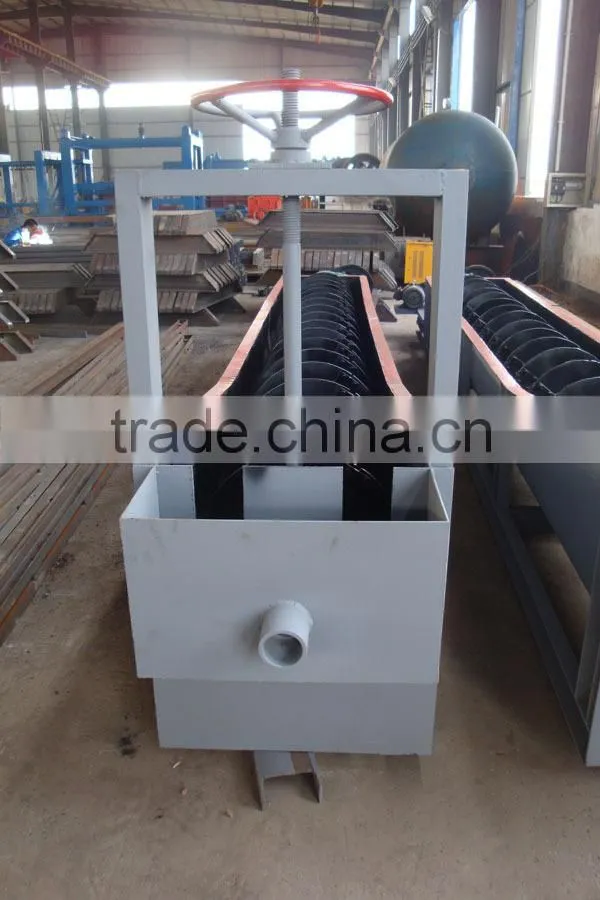

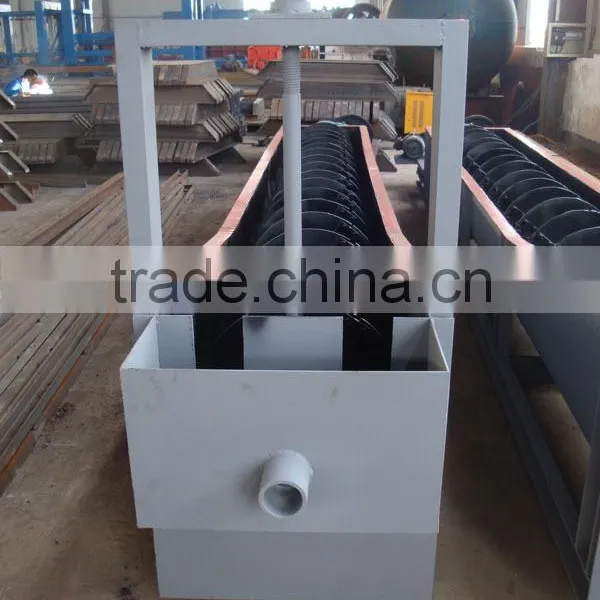

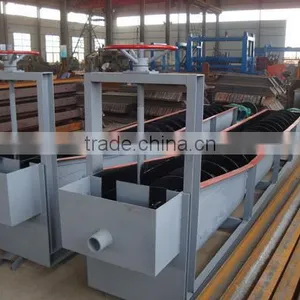

View of Huahong screw classifier,screw separator made in China:

Huahong screw classifier,screw separator made in ChinaHuahong screw classifier,screw separator made in ChinaHuahong screw classifier,screw separator made in ChinaHuahong screw classifier,screw separator made in ChinaHuahong screw classifier,screw separator made in ChinaHuahong screw classifier,screw separator made in China



Main technical parameters:

Model

Spiral Diameter



Length

of pool

Rotation

Speed

(r/min)

Motor

Power(kw)

Dimensions(mm)

Weight

(t)

Drive

Lift

L

W

H

FG-3

300

3000

12-30

1.1

--

3850

490

1140

0.7

FG-5

500

4500

8-12.5

1.1

--

5430

680

1480

1.6

FG-7

750

5500

6-10

3

--

6270

980

1820

2.7

FG-10

1000

6500

5-8

5.5

--

7590

1240

2380

4.43

FC-10

8400

7.5

9600

1240

2680

6

FG-12

1200

6500

4-6

7.5

2.2

8180

1570

3110

8.5

FC-12

8400

7.5

2.2

10370

1540

3920

11

2FG-12

6500

15

4.4

8230

2790

3110

15.8

2FC-12

8400

15

4.4

10370

2790

3920

17.6

FG-15

1500

8300

4-6

7.5

2.2

10410

1880

4080

12.5

FC-15

10500

7.5

2.2

12670

1820

4890

16.8

2FG-15

8300

15

4.4

10410

3390

4080

22.1

2FC-15

10500

15

4.4

12670

3370

4890

30.7

FG-20

2000

8400

3.6-5.5

11-15

3

10790

2530

4490

20.5

FC-20

12900

11-15

3

15610

2530

5340

28.5

2FG-20

8400

22-30

6

11000

4600

4490

35.5

2FC-20

12900

22-30

6

15760

4600

5640

48.7

FG-24

2400

9130

3.67

15

3

11650

2910

4970

25.7

FC-24

14130

18.5

4

16580

2930

7190

41

2FG-24

9130

30

6

12710

5430

5690

45.8

2FC-24

14130

37

8

17710

5430

8000

67.9
