High Efficiency Manufacture Price Sand Washer Machine With Capacity of 50-120t/h
US$ 1,000 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
4-11 kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Hot Sale ZSW Type Vibrating Feeder Machine With Capacity of 120-240t/hUS$ 1,000 - 1,000MOQ: 1 Set -
Mining Feeder MachineUS$ 1,000 - 1,000MOQ: 1 Set
-
China Top Quality Fine Sand Vibrating Feeder Machine Manufacture SupplierUS$ 1,000 - 1,000MOQ: 1 Set
-
Model 1700 Large Wood Crusher Tree Stump Crushing Machine for SaleUS$ 1,000 - 1,000MOQ: 1 Set
-
With Capacity of 5t/h Metal Crusher Machine With Factory PriceUS$ 100 - 9,999MOQ: 1 Piece
Condition
New
Motor Type
AC Motor
Power(W)
4-11 kw
Capacity(t/h)
15-200TPH
Place of Origin
Henan, China
Brand Name
Henan Hongke
Model Number
XSD series
Dimension(L*W*H)
3150*1910*2280--4420*2930*3
Weight
Based on the type
Certification
CE ISO BV CCC
Warranty
2 Years, 2 years
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Henan XSD series sand washing machine
1.Widely accepted by our customers
2.Quality gurantee
3.who
sand washing machine with high performance
1.Characteristics of Sand Washing Machine:
Reasonable structure,
Large capacity,
Low consumption,
Little loss of the sand during the washing process,
Low failure rate.
Large capacity,
Low consumption,
Little loss of the sand during the washing process,
Low failure rate.
2.Sand Washing Machine Introduction:
GX series sand washing machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands. So that it has lower failure rate than the usual sand washing machine.

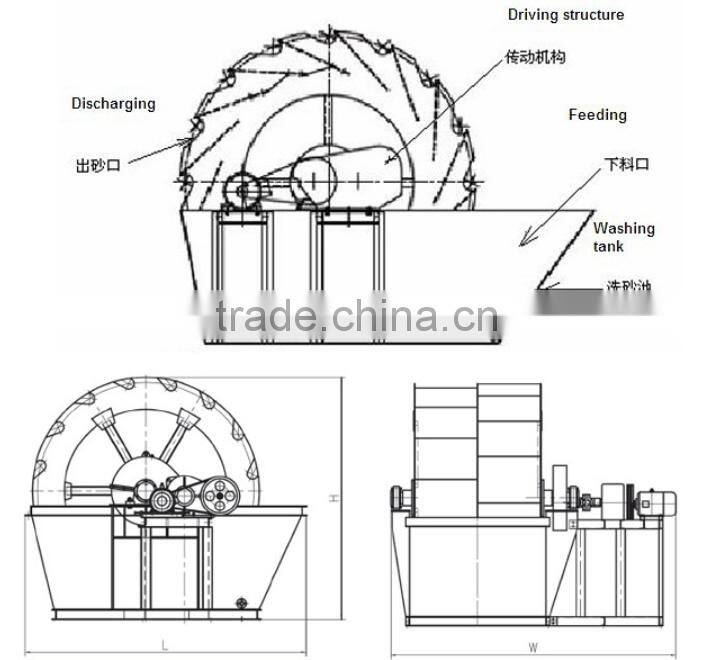

3.Sand Washing Machine Working Principle:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Main Technical Parameter of Sand Washer:
| Model | Impeller diameter(mm) | Impeller rotationg speed(r/min) | Capacity(t/h) | Feed size(mm) | Power(KW) | Weight(t) |
| XSD2212 | 2200 | 1-1.5 | 15-35 | ≤10 | 5.5 | 2 |
| XSD2612 | 2600 | 1-1.5 | 20-25 | ≤10 | 5.5 | 2.68 |
| XSD2812 | 2800 | 1-1.5 | 30-65 | ≤10 | 7.5 | 3 |
| XSD3015 | 3000 | 1-1.5 | 50-80 | ≤10 | 11 | 3.4 |
| XSD3215 | 3200 | 1-1.5 | 120-180 | ≤10 | 11 | 3.9 |
| XSD3615 | 3600 | 1-1.5 | 80-120 | ≤10 | 15 | 4.5 |
