Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Sand Spiral Classifier/Screw Classifier/Spiral Upgrader Machine

Sand Spiral Classifier/Screw Classifier/Spiral Upgrader Machine

Name: Sand Spiral Classifier/Screw Classifier/Spiral Upgrader Machine
Brand: Huahong
SKU: 101734303
Availability: InStock

Sand Spiral Classifier/Screw Classifier/Spiral Upgrader Machine thumbnail-1

Sand Spiral Classifier/Screw Classifier/Spiral Upgrader Machine thumbnail-2

Sand Spiral Classifier/Screw Classifier/Spiral Upgrader Machine photo-1

Sand Spiral Classifier/Screw Classifier/Spiral Upgrader Machine photo-2

US$ 1,000 - 80,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Screw Classifier

Production Capacity:

1170-1870

Contact Supplier Request Quote Chat Now

Zhengzhou Huahong Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Screw Classifier

Production Capacity 1170-1870

Place of Origin Henan, China

Brand Name Huahong

Model Number FG12

Power(W) 7.5kw+0.4kw

Dimension(L*W*H) Reference Model

Weight 8000kg

Certification ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

spiral stone washing machine:

1.various models, single and double spiral;

2.good quality with considerable price

Sand Spiral Classifier/Screw Classifier/Spiral Upgrader Machine

Features

This product features simple structure,reliable working conditions and convenient operation.

Overview

We produce high weir type, single and double spiral, and immersed single and double spiral classifiers. Our spiral classifiers are widely used in the distribution of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing.

Application

Spiral classifier are widely used in the distribution of ore in closed-circuit with ball mill in mining processing,in order to get a certain degree fineness of ore particles,meanwhile increasing the efficiency of grinding.This machine can also be used to washed sand classify ore sand and play other functions.

Working principle

Spiral classifier machine is according to the principle that different solid grain size and proportion have the different settling velocity in fluid, fine magnetic particles in the water overflow, the coarse ore grain drowned in the bottom of the tank which educted by the upper spiral, The spiral machine can filter the powder materials from grinding mill machines, and then put the coarse material into the grinding machine through spiral of spin and screwed feeding port, the fine materials overflow from the eduction pipe.

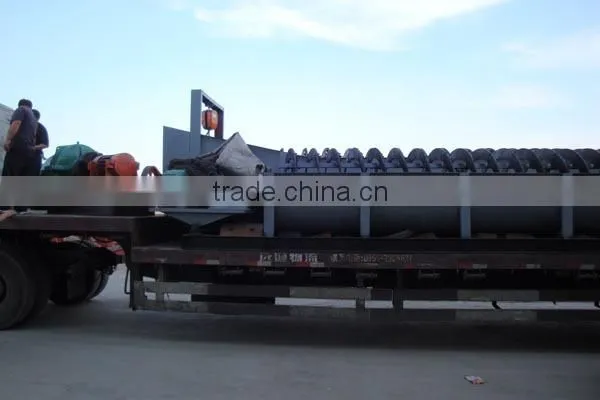

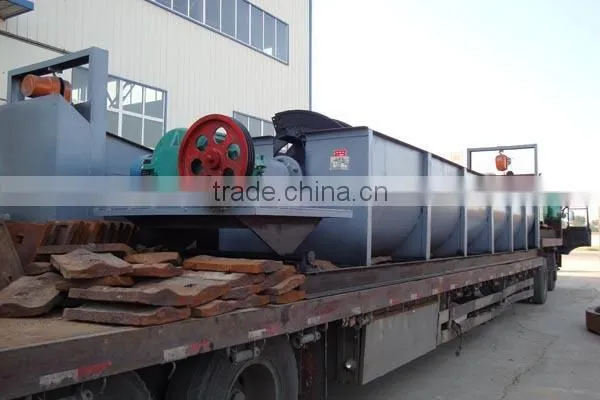

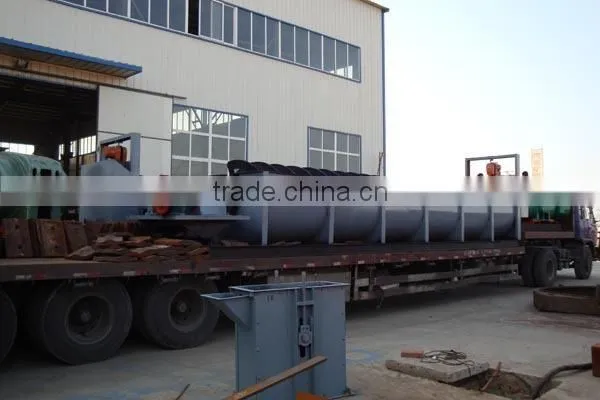

Products Delivery

technical parameter

Model	Screw Dia. (mm)	Screw Speed (r/min)	Trough Length (mm)	Capacity (t/h)		Power (kw)		Weight (kg)
Model	Screw Dia. (mm)	Screw Speed (r/min)	Trough Length (mm)	Return sand	Overflow	Transmission	Lift	Weight (kg)
FG-3	300	8.3-22	3000	30-80	10-30	1.1	----	668
FG-5	500	8-12.5	4500	135-210	32	1.5	----	1980
FG-7.5	750	6-10	5500	340-570	65	3	----	3005
FG-10	1000	5-8	6500	675-1080	110	7.5	----	5310
FC-10	1000	5-8	7600	675-1080	85	7.5	0.4	6000
FG-12	1200	5-8	6500	1170-1870	155	7.5	0.4	8000
FC-12			8400	1170-1870	120	7.5	0.4	9280
2FG-12			6500	2340-3740	310	5.5*2	0.4*2	13300
2Fc-12			8400	2340-3740	240	7.5*2	0.4*2	19600
FG-15	1500	4-6	8300	1830-2740	235	11	0.4	9800
FC-15			10500	1830-2740	185	11	0.8	12570
2FG-15			8300	3660-5480	470	7.5*2	0.4*2	22100
2FC-15			10500	3660-5480	370	7.5*2	0.8*2	30700
FG-20	2000	3.0-5.5	8400	3240-5400	400	11	2.8	20500
FC-20			12900	3240-5940	320	11-15	2.8	29100
2FG-20			8400	6480-10800	800	11*2	2.8*2	36500
2FC-20			12900	6480-11800	640	15*2	2.8*2	50000
FG-24	2400	2.5-4.0	9200	4650-7450	580	11-15	2.8	25700
FC-24			14200	4650-7450	455	11-18.5	4	41000
2FG-24			9200	9300-14900	1160	15*2	2.8*2	45800
2FC-24			14200	9300-14900	910	18.5*2	4*2	67900
2FG-30	3000	2.0-3.2	14300	14600-23400	1785	18.5*2	4*2	73000
2FC-30	3000	2.0-3.2	14300	14600-23400		22*2	4*2	84900
