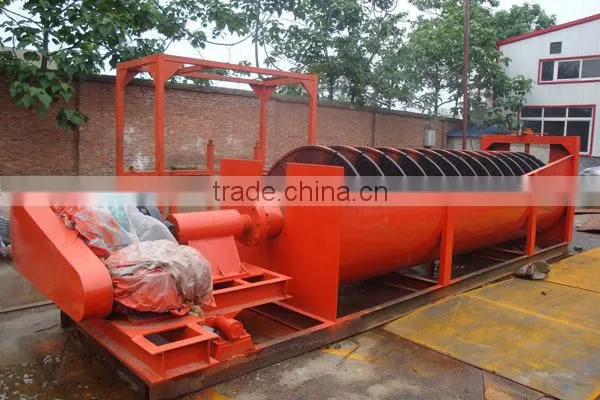

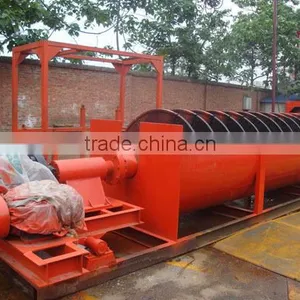

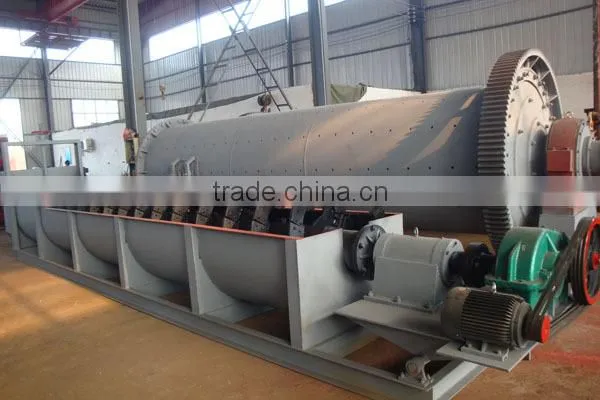

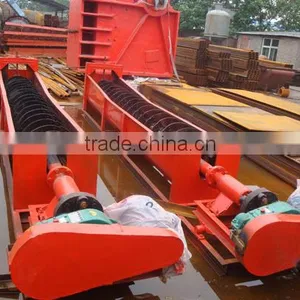

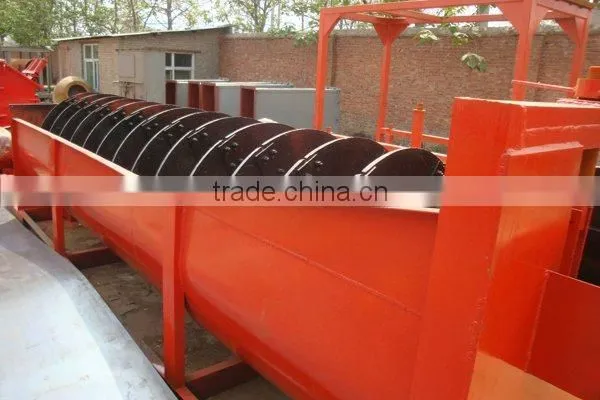

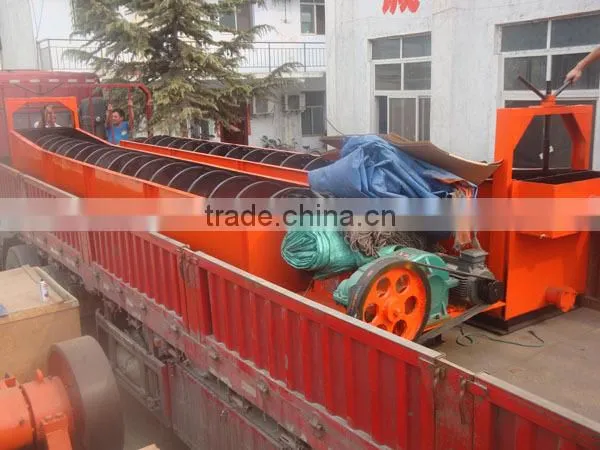

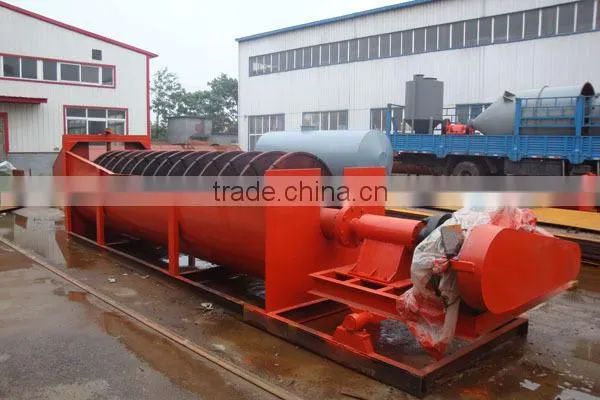

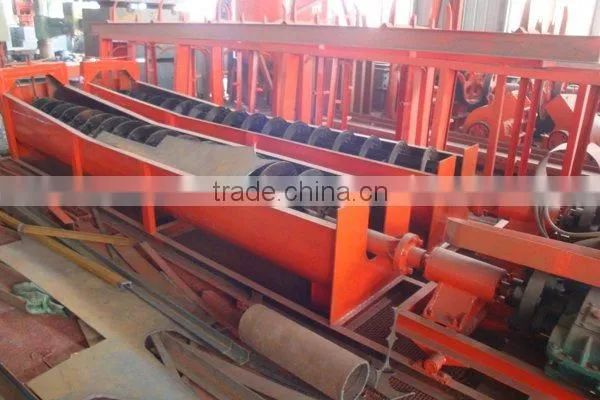

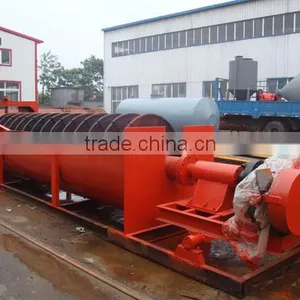

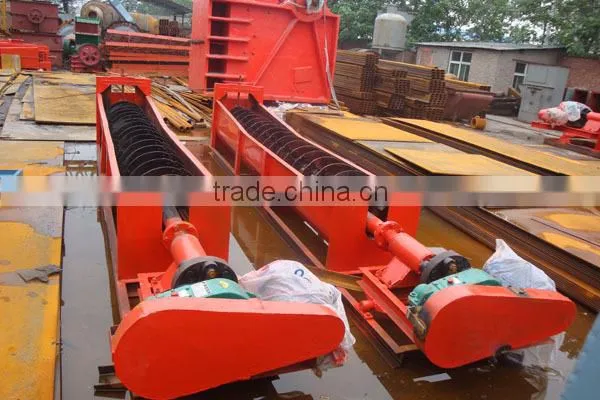

Screw classifier description:
We are perfessional manufacturer for mining machine.
Screw classifier is widely used to control material size from ball mill in the beneficiation process, separate mineral sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process.
Screw classifier features:
1.Screw classifier has simple structure, reliable working conditions and convenient operation. Because different grains have different specific gravity and sedimentation rates in liquid, this product allows the fine ore to flow in the water, while coarse ore sinks to the bottom.
2.Screw classifier can filter materials and send coarse materials to the feeding mouth and discharge fine materials from the pipe.

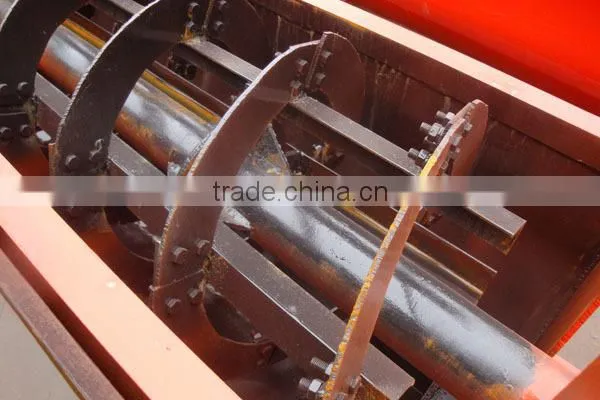

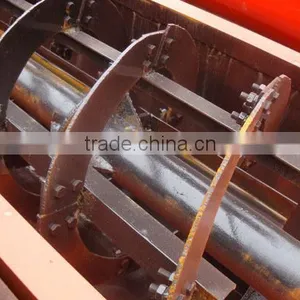

3.The seat of the machine is channel steel material, while the body is armor plated and the screw blade is made of cast iron for durability.

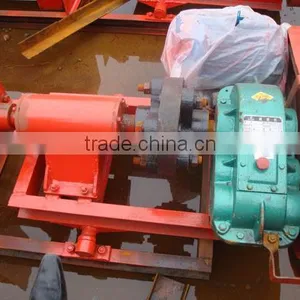

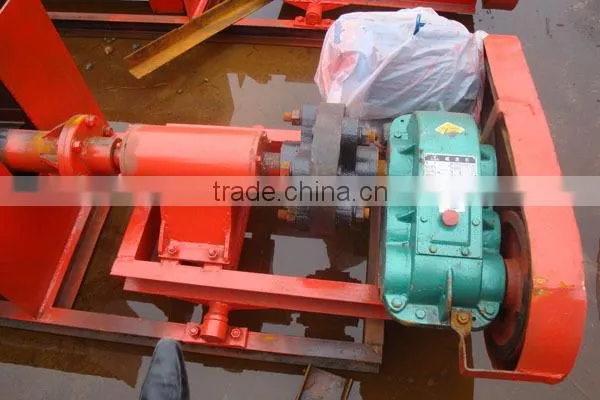

4.The machine's lifting equipment can be used manually or electronically.
Specifications of screw classifier:
Model |
rotation speed (r/min) |
Output (t/24h) |
Water obliquity (°) |
Motor |
||
Circulating Load |
Overflow Quantity |
Model |
Power (KW) |
|||
FG-500 |
8-12.5 |
135-210 |
32 |
14-18.5 |
Y90L-6 |
1.1 |
FG-750 |
6-10 |
340-570 |
65 |
14-18.5 |
Y132S-6 |
3 |
FG-1000 |
5-8 |
675-1080 |
110 |
14-18.5 |
Y132M-6 |
5.5 |
FG-1200 |
5-8 |
1170-1870 |
115 |
14-18.5 |
Y160M-6 |
5.5 |
FG-1500 |
4-6 |
1830-2740 |
235 |
14-18.5 |
Y160M-6 |
7.5 |
FG-2000 |
3-5 |
3240-5400 |
400 |
14-18.5 |
Y160M-6 |
11 |
FG-2400 |
3.6 |
4650-7450 |
580 |
14-18.5 |
Y160M-6 |
15 |
2FG-1200 |
5.0-8.0 |
2340-3740 |
310 |
14-18.5 |
Y132M-6 |
5.5×2 |
2FG-1500 |
4.0-6.0 |
3660-5480 |
470 |
14-18.5 |
Y160M-6 |
7.5×2 |
2FG-2000 |
3.0-5.5 |
7780-11880 |
800 |
14-18.5 |
Y160M-6 |
11×2 |
2FG-2400 |
3.6 |
13600 |
1160 |
14-18.5 |
Y160M-6 |
15×2 |

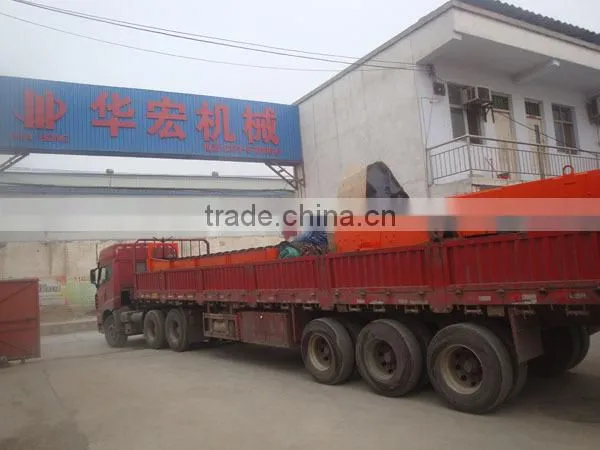

Our company and certificates:

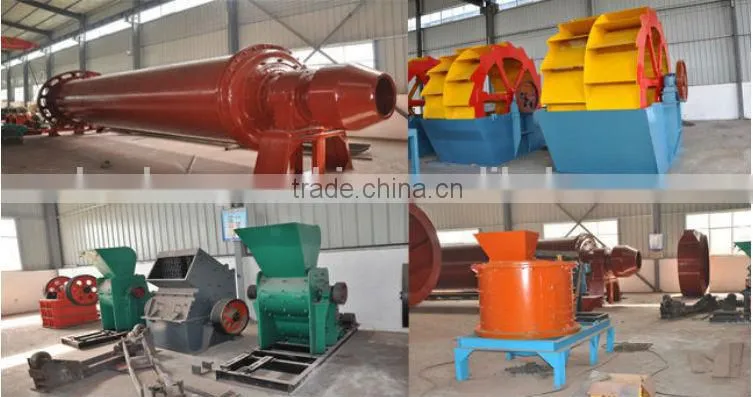

1.Zhengzhou Huahong Machinery&Equipment Co., Ltd is a famous manufacturer of mining and sandstone production equipment in China. The main products include mineral-processing equipment such as crusher, ball mill, magnetic separator, flotation machine, rotary kiln and sandstone production equipment such as vibrating screen, sand making machine etc.
2.We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3.We attach the development of scientific research, and form strategic partnership with the major research institutions.
4.Honesty and credit is our bussiness value , customer first.First-class quality and first-class service is the business life.
Crushers: jaw crusher, hammer crusher, ring hammer crusher, cone crusher, impact crusher, fine crusher, compound crusher, roll crusher ,etc.
Stone production line: vibrating feeder, crusher, vibrating screen, belt conveyor, sand washing machine.
Beneficiation production line: vibrating feeder, crusher, ball mill, classifier, magnetic separator, mixing tank, flotation machine, rotary dryer.

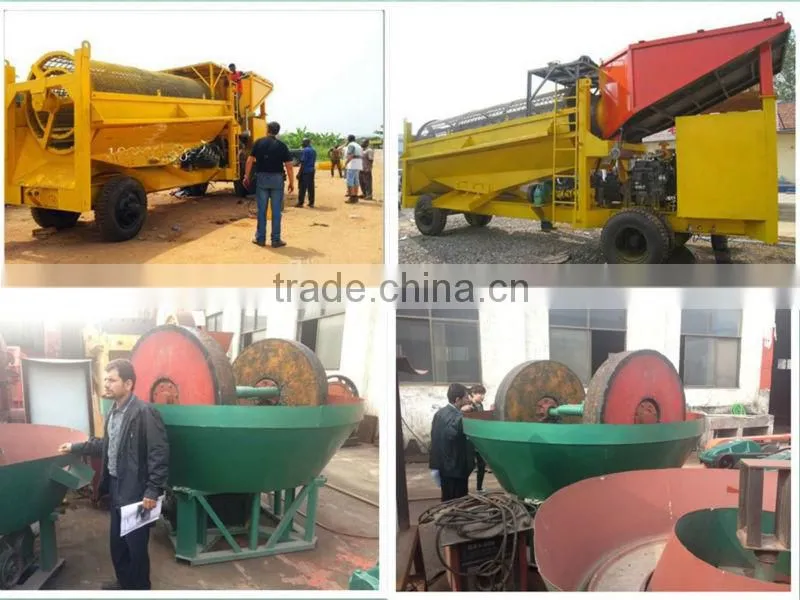

Other equipments: rod mill, chute feeder, swing feeder, linear vibrating screen, trommel screen, spiral chute, shaking table and large angle belt conveyor.
