Mini Spiral Classifier,Small Spiral Classifier,Lab Spiral Classifier
US$ 500 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sprial Separator
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/shanghai/tianjin/guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sand Separator Machine China DistributorUS$ 1 - 20,000MOQ: 1 Set -
Super Design Screw Classifier for SaleUS$ 1,000 - 200,000MOQ: 1 Set
-
New Improved Best Performance Mineral Processing Screw Classifier/mining Spiral Classifier MachineUS$ 1,000 - 200,000MOQ: 1 Set
-
Gold Processing Plant Spiral Separator,spiral Separator Machine PriceUS$ 3,500 - 4,200MOQ: 1 Set
-
Mining Equipment Spiral Classifier,spiral Separator for SaleUS$ 3,500 - 4,200MOQ: 1 Set
Condition
New
Type
Sprial Separator
Place of Origin
Henan, China
Brand Name
HUAHONG
Model Number
FG20
Voltage
220V(as your country)
Weight
20.5t
Certification
ISO&CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Hot sale in Africa, East Asia,etc2.Spiral diameter:500-3000mm
3.Spiral speed:3.2-12.5r/min
4.Mix stongly
Mini spiral classifier,Small spiral classifier,Lab spiral classifier
Spiral classifier,working with ore mills to form close circulation in the concentrating plant,whose classification process depends on the sedimentation velocity of the particles. Its external appearance is a rectangular oblique chute, whose bottom is semi-circular.There is 1 or 2 vertical axles installed in the chute, spiral blades are installed along the axle one after another.
Technical parameter:
Model |
Spiral diameter(mm) |
Trough length(mm) |
Spiral rotation speed(r/min) |
Capacity(t/d) |
Power(kw) |
Weight
(t)
|
||
Return sand |
Overflow |
Driving |
Flifting |
|||||
FG7.5 |
750 |
5500 |
6-10 |
340-570 |
65 |
3.0 |
Manual |
2.7 |
FG10 |
1000 |
6500 |
5.0-8.0 |
675-1080 |
110 |
5.5 |
Manual |
4.43 |
FG12 |
1200 |
6500 |
5.0-8.0 |
1170-1870 |
155 |
5.5 |
1.5 |
8.7 |
FG15 |
1500 |
8400 |
4.0-6.0 |
1830-2740 |
235 |
7.5 |
2.2 |
12.5 |
FG20 |
2000 |
8400 |
4.0-6.0 |
3240-5400 |
400 |
11 |
2.8 |
20.5 |
FG24 |
2400 |
9210 |
3.6 |
4650-7450 |
580 |
15 |
3.0 |
25.6 |
FG30 |
3000 |
1250 |
3.2 |
11625 |
890 |
22 |
4.0 |
37.7 |
2FG12 |
1200 |
6500 |
5.0-8.0 |
2340-3740 |
310 |
5.5x2 |
1.5x2 |
14.0 |
2FG15 |
1500 |
8400 |
4-6.0 |
3660-5480 |
470 |
7.5x2 |
1.5x2 |
21.1 |
2FG20 |
2000 |
8400 |
3.0-5.5 |
7780-11880 |
800 |
11x2 |
2.8x2 |
36.5 |
2FG24 |
2400 |
9210 |
3.6 |
13600 |
1160 |
15x2 |
3x2 |
46.8 |
2FG30 |
3000 |
12500 |
2.0-3.2 |
14600-23400 |
1785 |
22x2 |
4x2 |
73.0 |

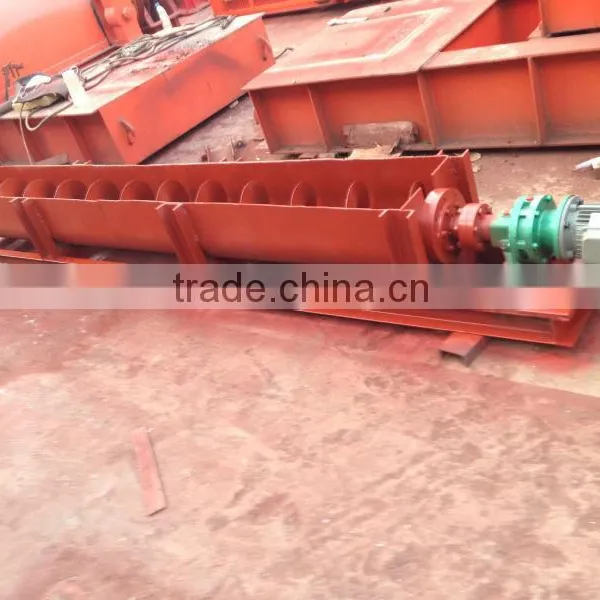

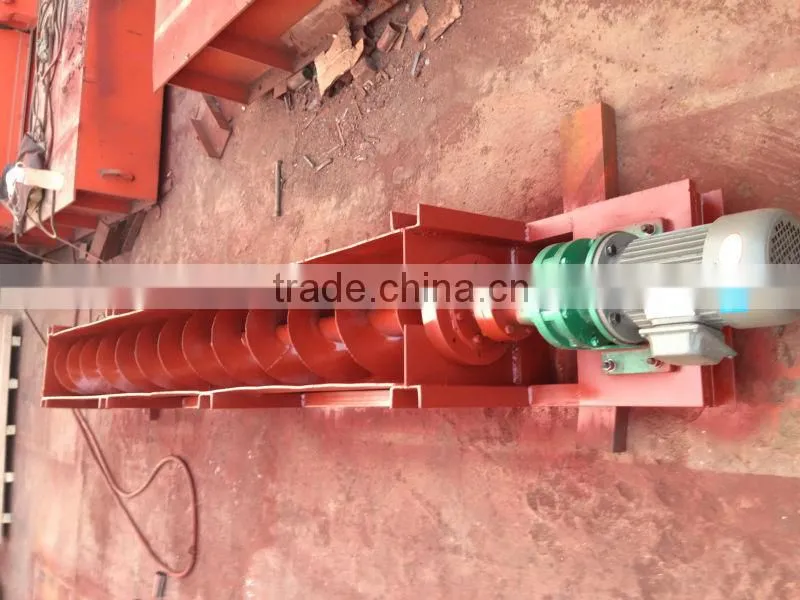

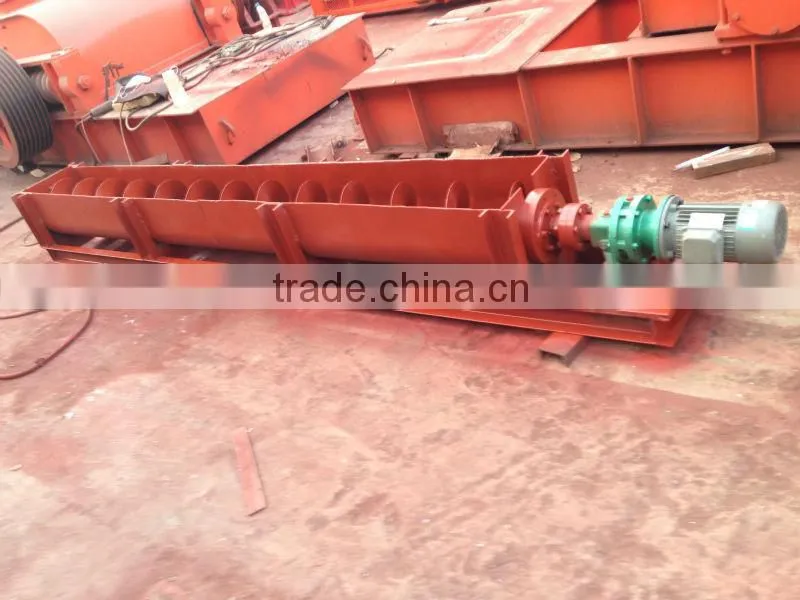

Single mini spiral classifier:
Double screw classifier:
