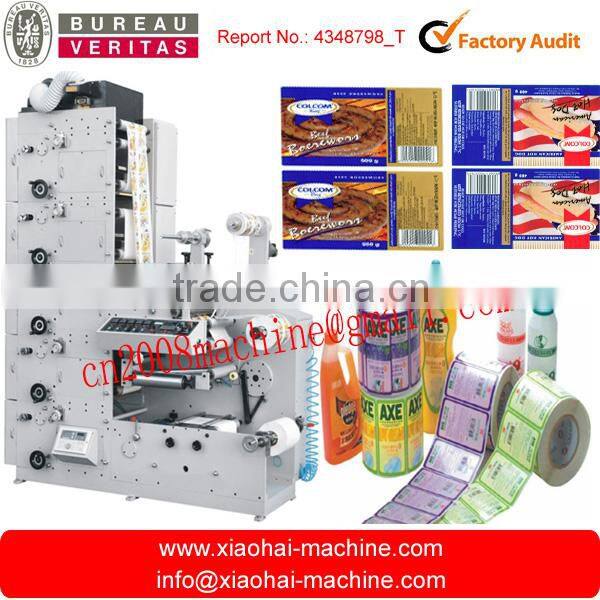

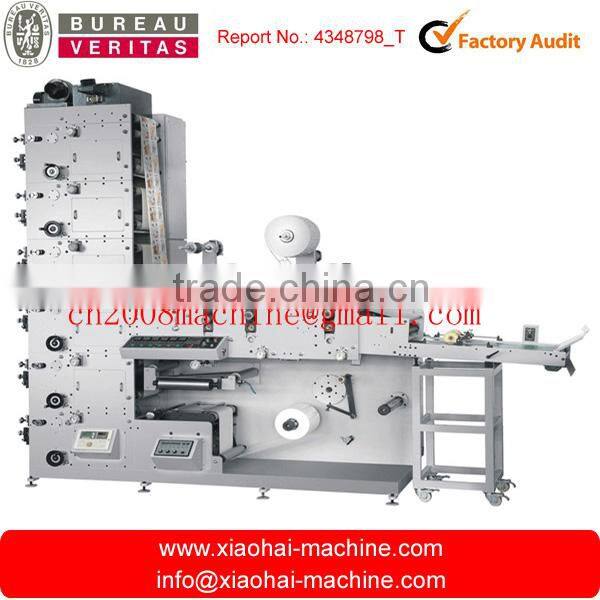

ZBS-320G 5 colors label flexo printing machine:
label flexo printing machine is used for printing roll paper,roll coated paper and plastic film etc material.
It is idea equipment for printing the label.
Features:
ZBS-G type contains ZBS-320G, ZBS-450G
This machine features:
1.Adopt the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 3600 plate-adjustment.
3.Three die-cutting stations, the first and second die-cutting station can do double sides working,the third die-cutting station can be used as sheeter.
4.Computerized web-guiding system is installed in the front of print-ing unit, it ensures the material always in the right position.(standard configuration)
5.After sheeting in the third die-cutting station, conveyor belt can output the products orderly.(option)
6.Unwinding and rewinding tension are auto-controlled by magnetic power,two rewinders is possible in this machine.
7.Video inspecting system is an option, it can watch the printing quality when in high speed.
8.The ink rollers will be separated from the printing roller, and keep running when the machine stops.
9.Main machine inverter is imported.
10.The machine can finish material-feeding, printing, varmishing, drying, laminating, die-cutting, rewinding and sheeter in a lump. It is an ideal machine for printing note and top-grade adhesive label.
Main parameters:
Model |
ZBS-320G |
Printing speed |
55m/min |
Printing color |
4colours |
Max. width of paper |
320mm |
Max .printing width |
310mm |
Max. unwinder/rewinder diameter |
650mm |
Printing length |
Z56-Z112(177.8-355.5mm) |
Thickness of flexo plate |
1.7mm or 1.14mm |
Precision of chromatography |
±0.1mm |
Dimensions |
2.6mX1.2m X2.6m |
Machine weight |
About 2600kg |
OPTIONAL PARTS:
1, Sheeter conveyer
2, UV dryer
3, Separate unwinder shelf (diameter up to 900mm)
4, Corona treater
5, Cold stamping unit
6, Video inspecting system
7, Safe cover for printing unit
8, Slitting unit with single rewinder or double rewinder
9, elctric hoist
Sticker Label Production Line:
- 1. Sticker Label Flexo printing machine
- 2. Label Die cutting machine to be sheet or to be roll Flat bed
- 3. Rotary Label Die Cutting Machine
- 4. Label roll to roll slitting and rewinding machine
- 5. Label Slitting and rewinding machine with die cut funcation
- 6. Label Inspection Machine
- 5. Flexo Plate Making Machine For Printing Machine
- 6. Flexo Cylinder Plate Mounter Machine
- 7. Anilox Roller Ultrasonic Cleaning Machine
- 10. Label adhesive Coating Machine
- 11. IML Label Die Cutting Machine
- 12. PS Label Printing Machine
