Six Color Flexographic Printers for Plastic Bag ,film , Paper Bag

Six Color Flexographic Printers for Plastic Bag ,film , Paper Bag thumbnail-1
Six Color Flexographic Printers for Plastic Bag ,film , Paper Bag photo-1
US$ 1 - 1,111 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, flexo
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Wenzhou Xiaohai I/E Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, flexo
Place of Origin Zhejiang, China
Brand Name XIAOHAI
Model Number YT
Usage Other, printing
Automatic Grade Automatic
Voltage 220V/380V
Gross Power 11kw
Dimensions(L*W*H) 4200*1600*2400mm
Weight 3500kg
Certification ISO9001 CE
After-sales Service Provided Engineers available to service machinery overseas



Contact Us

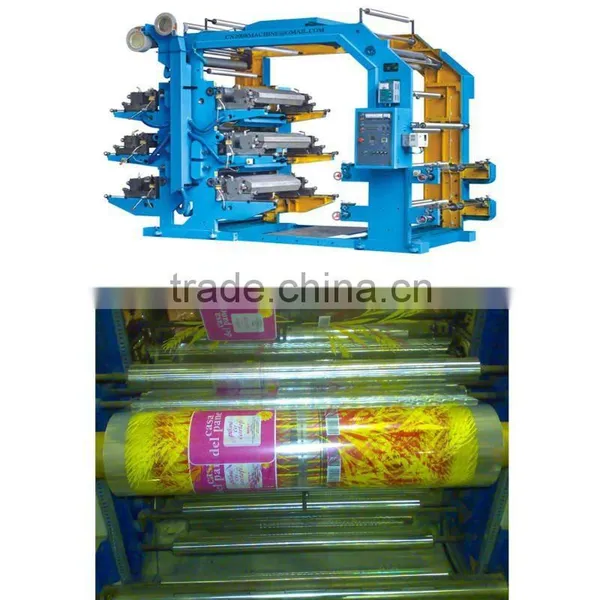

Six color flexographic printers for Plastic Bag ,film , paper bag





MACHINE NAME: SIX COLOR FLEXO PRINTING MACHINE



Usage:
It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and paper in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
It's quite commonly used for small order quantity printing service.

Performance and Features
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.


Specification:



Model No. YT-6600 YT-6800 YT-61000

Max.Web Width 600mm 800mm 1000m

Max.Effective Printing Width 560mm 760mm 960mm

Range of Repeat Printing Length 191~914mm 191~914mm 191~914mm

Max.Diameter of Roll Material 450mm 450mm 450mm

Printing Speed 5-50m/min 5-50m/min 5-50m/min

Plate Thickness(Both side adhesive tape included) 2.38mm 2.38mm 2.38mm

Total Power 15kw 19.5Kw 24Kw

Weight of Machine 3500kg 4200kg 5000kg

Machine Dimension 4300×1700×2950mm 4300×1900×2950mm 4300×2100×2950mm





Remark:

We also have wider width machine,if you want to print wider width film,please feel free to contact us.we will provide you details.thanks.
