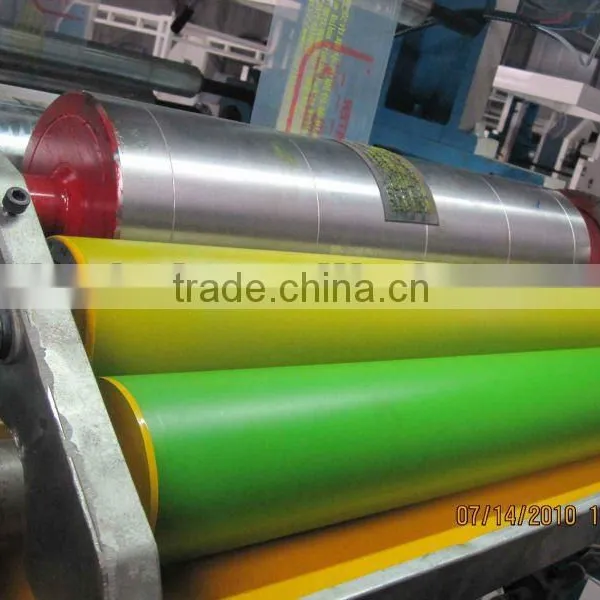

YT Four Colors Flexible Printing Machine
Performance and Characteristics:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,etc. It is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag, vest bag and clothes bag, etc.
1.simple operating, soft starting, accurate color register.
2.meter counter can set printing quantity, automatic shutdown, automatic stop-off material.
3.pneumatic landing plate cylinder, automatic mixing ink after lifting.
4.the knurled cylinder with ink, ink evenly.
5.Reliable drying system coordinated with high-speed operation, automatic shutdown circuit. 6,360 degrees continuous and adjustable longitudinal photo checking device.
7. frequency control, adapt to different printing speeds.
8. the roller seats and rewind shelves are loaded moving and stop buttons, easy to operate when the machine is installed.
Main Technical Variables:
Model of Machine |
YT-4600 |
YT-4800 |
YT-41000 |
Max.Width of Printing Material |
600mm |
800mm |
1000mm |
Max.Printing With |
560mm |
760mm |
960mm |
Length Range of Printed Product |
191-914mm |
191-914mm |
191-914mm |
Max.Diameter of Roll Material |
φ450mm |
φ450mm |
φ450mm |
Printing Speed |
5~50m/min |
5~50m/min |
5~50m/min |
|
Thickness of plate(Including Two-sides Glue Paper) |
2.38mm |
2.38mm |
2.38mm |
Total Power |
10.87kw |
12.5kw |
14.37kw |
Weight of Machine |
3000kg |
3500kg |
4000kg |
Overall Dimensions(mm) |
4200*1600*2400 |
4200*1800*2400 |
4200*2000*2400 |
Send Inquiry to This Supplier
