Specifications
10m Jiefang truck mounted aerial platformengine power 103hp
crew cabin, LHD
ccc, iso approved
articulated boom

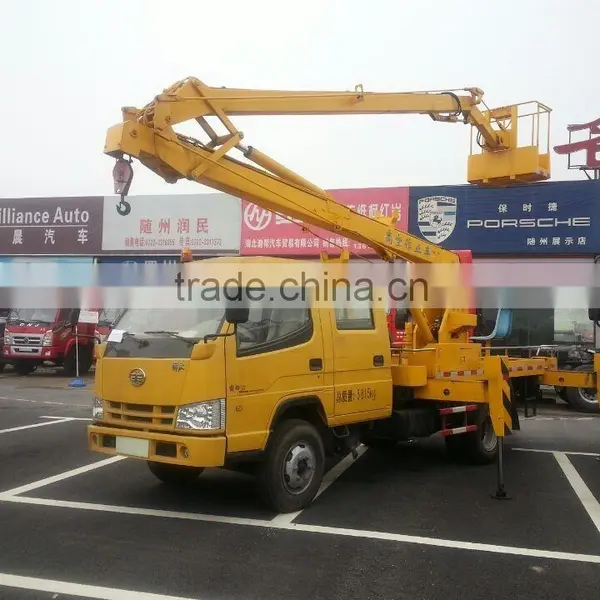

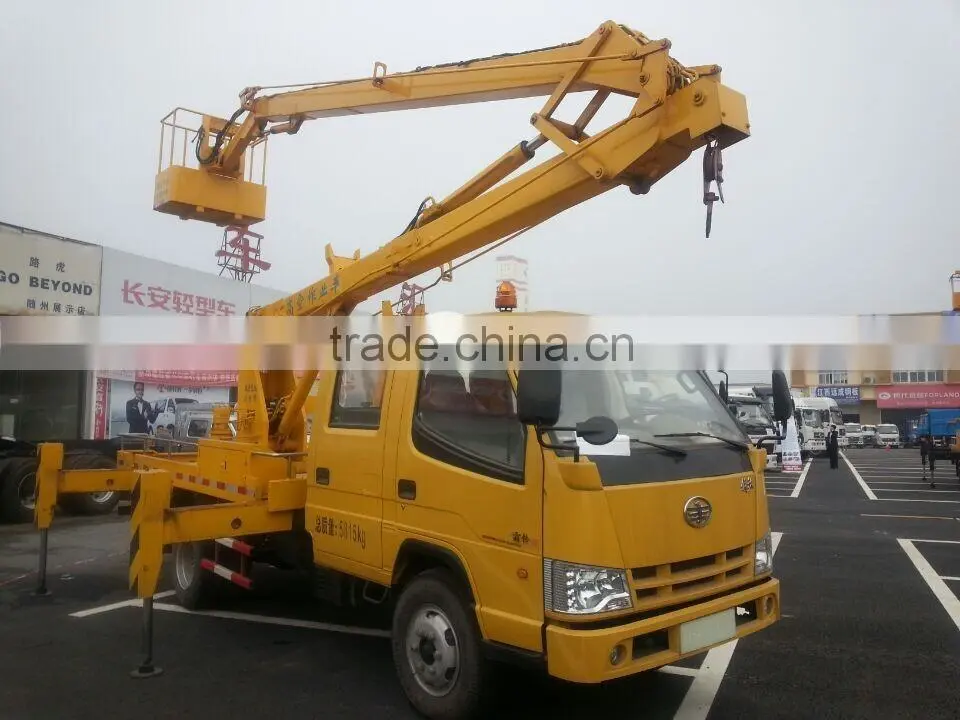

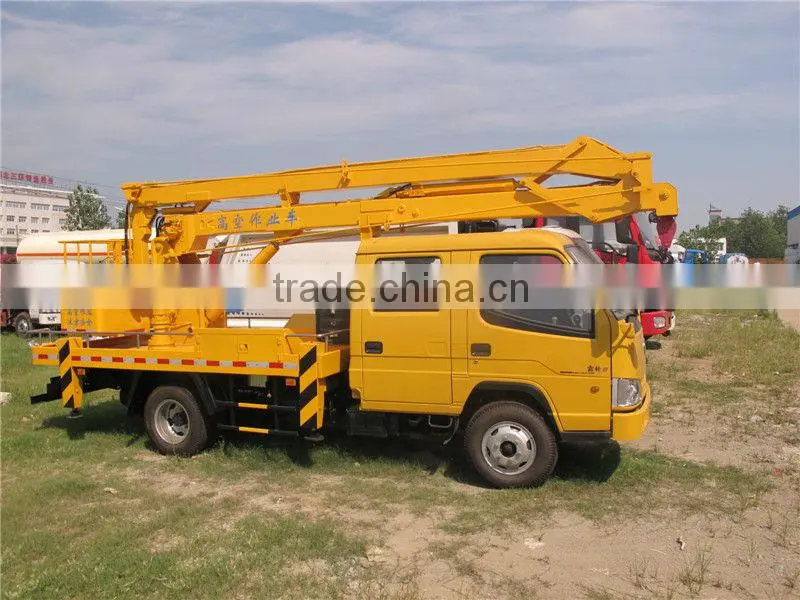

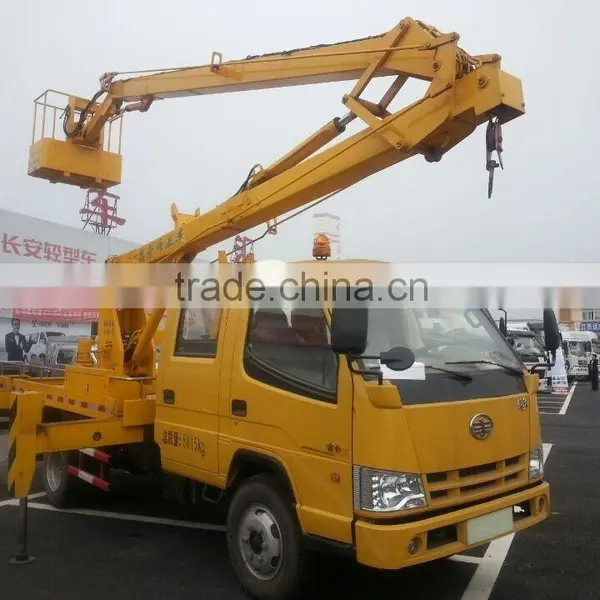

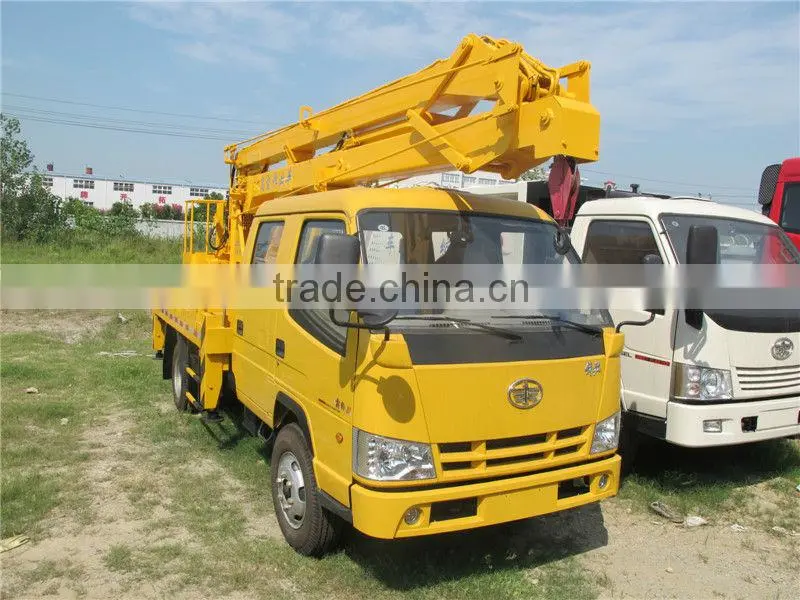

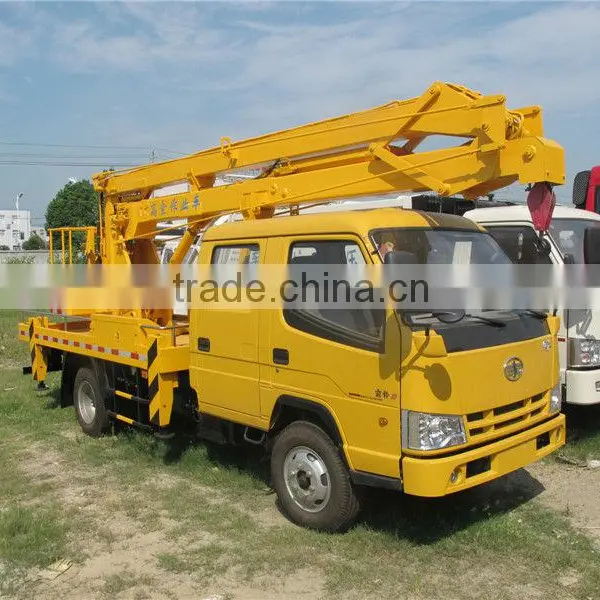

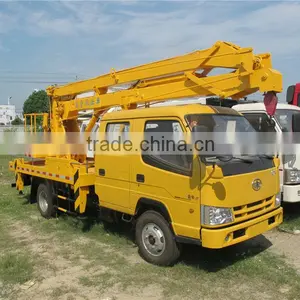

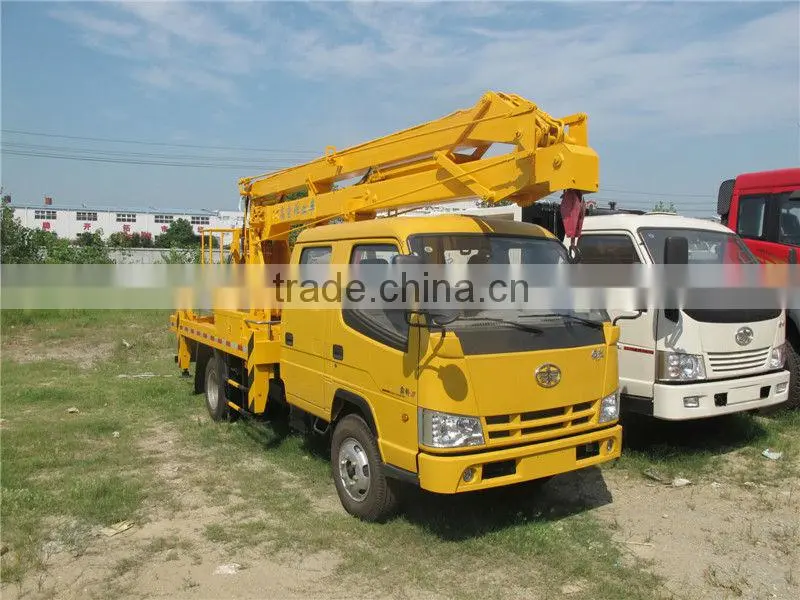

10m Jiefang Truck Mounted Aerial Platform
Truck mounted aerial platform is consisted of Jiefang chassis, 2 section of booms, a basket(bucket) at the boom end and a 1000kg hoisting capacity crane system.
Boom used and their connection fittings are made of St-52 steel.
The platform can reach 10m height and capable to rotate 360 degree around its own axis.
The basket(bucket) mounted at the boom end provides enough space for two persons to work easily.
Vehicle name |
10m Jiefang Truck Mounted Aerial Platform |
|
Model |
JDF5040JGK |
|
Cabin |
crew cabin, 2+3 seats |
|
Overall dimension (L*W*H)(mm) |
5230x1780x3055 |
|
Wheel base |
2850 mm |
|
GVW |
3935 kg |
|
Curb weight |
3610 kg |
|
Engine |
Engine model |
CA4DC2-10E3 |
Rated power / Displacement |
76 kw (103hp) / 3168 cc |
|
Engine make |
FAW |
|
Emission standard |
Euro 2 |
|
Tire type |
6.50-16 |
|
Max working height |
10 m |
|
Max bucket frool height |
8.3 m |
|
Max outreach |
5 m |
|
Bucket rated load |
200 kg |
|
Slewing angle |
360° |
|
Outriggers |
4pcs |
|
Hook rated load capacity |
1000kg |
|
