ISUZU 100P 600P 14M Aerial Work Platform Manlift Vehicle Folding Arm Bucket Truck
US$ 21000 - 21300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
isuzu
Place of Origin:
China
Model Number:
14M Bucket truck
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai,wuhan,horgos,ruili
Delivery Detail:
5 days
Related Products
-
ISUZU GIGA 6X4 16CBM High Pressure Washing Vacuum Combined Jet Sewage Suction TruckUS$ 116000 - 117000MOQ: 1 Piece -
5-6 Tons Small Food Freezer Box Mini Milk Reefer Fridge Van Fish Meat Transport Refrigerator Trucks With Rear Hydraulic TailUS$ 19000 - 20000MOQ: 1 Piece
-
2ton, 3ton 4Ton,5Ton,6.3T,8Ton 10Ton 12 16 Ton Truck-mounted Straight Telescopic Arm Stiff Boom Crane for TruckUS$ 10000 - 20000MOQ: 1 Piece
-
2ton, 3ton 4Ton,5Ton,6.3T,8Ton 10Ton 12 16 Ton Truck-mounted Straight Telescopic Arm Stiff Boom Crane for TruckUS$ 10000 - 20000MOQ: 1 Piece
-
I-SUZU 18m Aerial Platform Truck for Factory Price SaleUS$ 33900 - 36900MOQ: 1 Set
Brand Name
isuzu
Place of Origin
China
Model Number
14M Bucket truck
Condition
New
Transmission Type
Manual
Fuel Type
Diesel
Emission Standard
Euro 4
Product Description

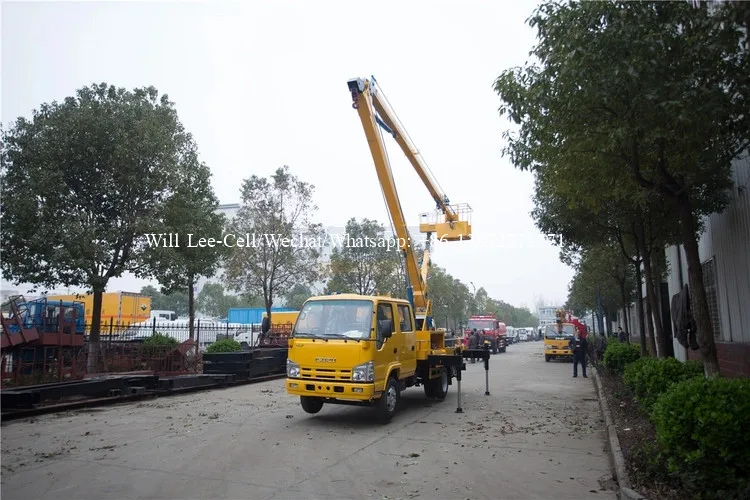

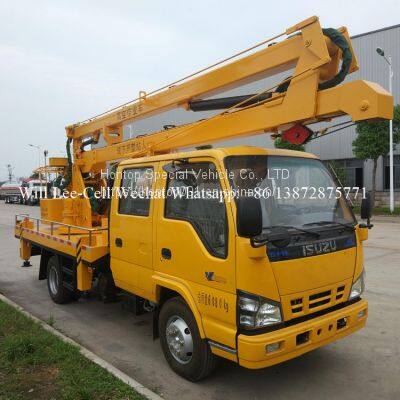

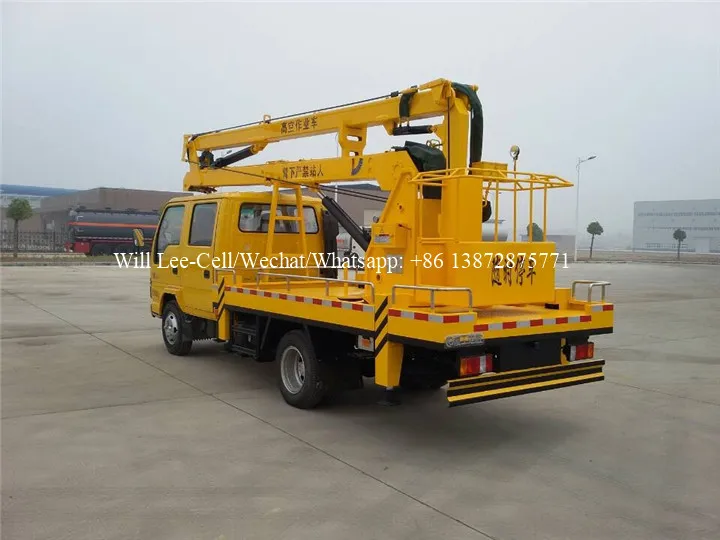

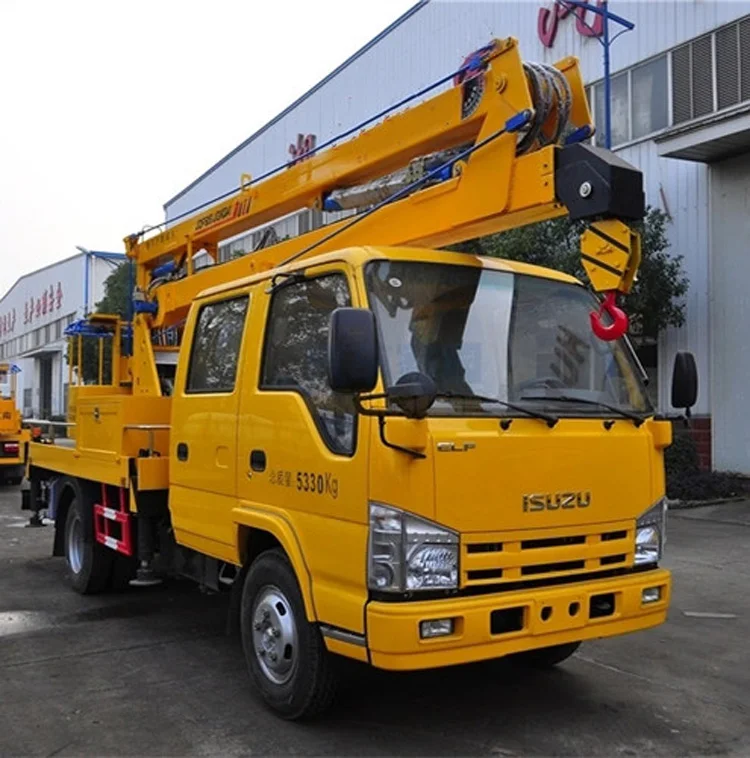

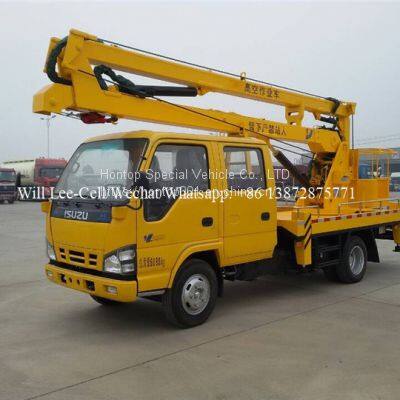

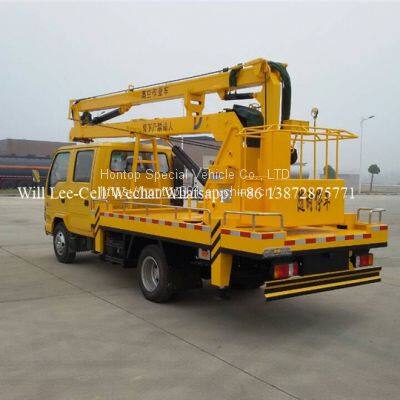

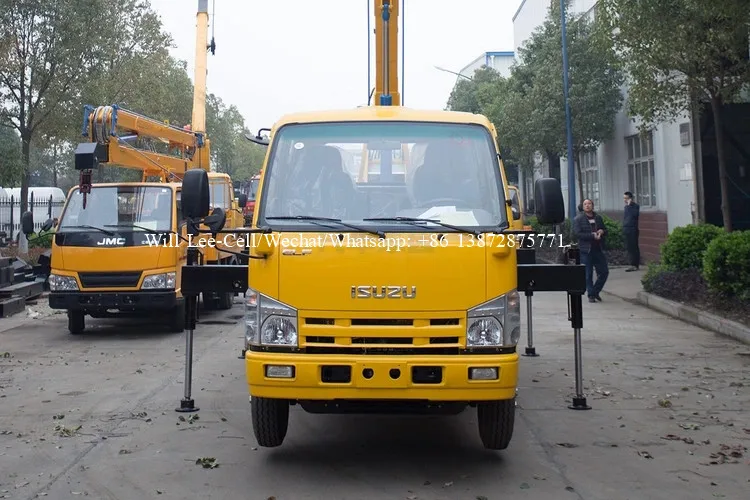

14M ISUZU 100P 600P Bucket Truck Aerial Working Platform Manlift Truck
Welcome to buy the ISUZU 700P 14m high-altitude working vehicle bucket truck produced by our company. Its main features and advantages:
1. Operating system: the operation mode is the combination of manual and electric; the turntable and basket are operated by electric double-position; the basket is equipped with engine starting and stopping (safe and convenient to operate and save fuel).
The throttle cable of the engine is operated manually and the supporting leg is operated manually. Each supporting leg can be adjusted independently and the upper and lower vehicle are interlocked. The operation is safe and reliable.
4,Superstructure: high quality carbon steel and profile, 3 mm non-slip pattern steel plate, toolbox 1200*400*500mm; Mold pressing door,stainless steel door lock, Φ 20 stainless steel pipe fence, side protection is made of high quality carbon steel after cold bending profile; High strength, hand wash tank.
5. Basket: the rated load of the hanging basket is ≤200Kg, the size of the hanging basket is 1080x620x1150, the safety belt is one pair.
6. Hydraulic system: hydraulic tank 65L; With liquid level gauge, with pressure gauge; 16MPa, gear pump quantitative pump, flow rate 50ml/r, 12 cylinders; With two-way balance valve or hydraulic lock for locking, to ensure safety .
7. Paint; Well-known brand paint
8. Logo: customized,clear, eye-catching and fadeless
Welcome to buy the ISUZU 700P 14m high-altitude working vehicle bucket truck produced by our company. Its main features and advantages:
1. Operating system: the operation mode is the combination of manual and electric; the turntable and basket are operated by electric double-position; the basket is equipped with engine starting and stopping (safe and convenient to operate and save fuel).
The throttle cable of the engine is operated manually and the supporting leg is operated manually. Each supporting leg can be adjusted independently and the upper and lower vehicle are interlocked. The operation is safe and reliable.

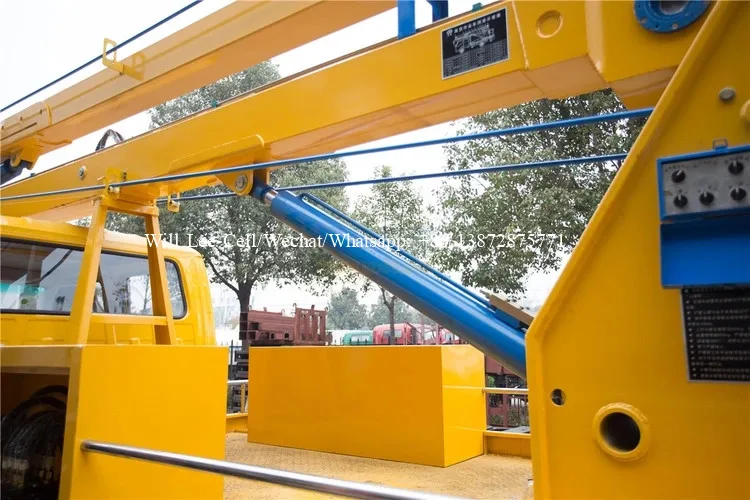

2.14M 3-section folding boom, high-strength steel / 3 mm, 3-section boom, hexagon, boom rolling Angle, 0 ° to 70 °(relative to the horizontal), adopting the advanced turbine worm type retarding mechanism,(with self-lubricating and self-locking function) late maintenance can also be easily by adjusting the bolt location easily reach effect; The rotary mechanism adopts adjustable type, which is convenient for adjustment.

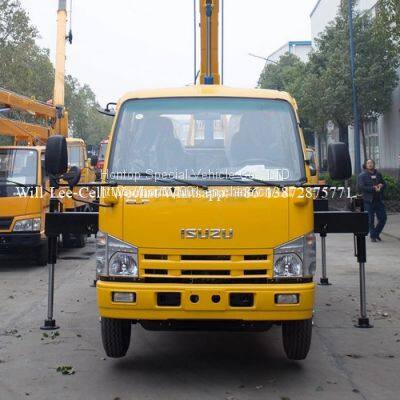

3. Supporting legs: front and rear x-type four hydraulic supporting legs, imported high-strength steel/3mm, supporting leg span longitudinal (mm) : 6500, transverse (mm) : 5950/6150, flexible operation, and can adapt to a variety of working conditions; All four legs are equipped with two-way hydraulic locks, and the rear legs are equipped with two yellow strobe lights.
3. Supporting legs: front and rear x-type four hydraulic supporting legs, imported high-strength steel/3mm, supporting leg span longitudinal (mm) : 6500, transverse (mm) : 5950/6150, flexible operation, and can adapt to a variety of working conditions; All four legs are equipped with two-way hydraulic locks, and the rear legs are equipped with two yellow strobe lights.
4,Superstructure: high quality carbon steel and profile, 3 mm non-slip pattern steel plate, toolbox 1200*400*500mm; Mold pressing door,stainless steel door lock, Φ 20 stainless steel pipe fence, side protection is made of high quality carbon steel after cold bending profile; High strength, hand wash tank.
5. Basket: the rated load of the hanging basket is ≤200Kg, the size of the hanging basket is 1080x620x1150, the safety belt is one pair.
6. Hydraulic system: hydraulic tank 65L; With liquid level gauge, with pressure gauge; 16MPa, gear pump quantitative pump, flow rate 50ml/r, 12 cylinders; With two-way balance valve or hydraulic lock for locking, to ensure safety .
7. Paint; Well-known brand paint
8. Logo: customized,clear, eye-catching and fadeless
Specification
Details Images
Packing & Delivery
Ro-Ro,Bulk,All vehicles have been waxed before shipment
Company Profile
Hontop Special Vehicle Co., LTD., located in Suizhou City of Hubei province, the town of special purpose vehicles in China, is a modern special purpose vehicle enterprise integrating R&D, manufacturing, sales and service of special purpose vehicles. The main products are fire truck, water tanker fire truck, foam fire truck, water tower fire truck, aerial platform fire truck, CAFS compressed air foam fire truck and emergency rescue fire truck, dry powder fire truck, forest fire truck, emergency power truck, ambulance, recreational vehicle, aerial platform truck, road sprinkler, garbage truck, road sweeper truck, refrigerator truck, truck mounted crane, totally 18 major series of hundreds of varieties. The products cover the field of fire fighting, road maintenance, power grid, urban sanitation, road building, emergency rescue, dangerous goods transport, and fire fighting equipment etc. All vehicle manufactured by Hubei Hontop Special Purpose Vehicle Co. LTD.have been listed on the National Catalogue, which have passed the ISO9001-2000 quality management system certification and the 3C certification of China Quality Certification Center. The product is popular in the China domestic market and exported to Indonesia, Iraq, India, Angola, North Korea, Myanmar, Laos, Nigeria, Russia, totally about 10 countries and regions. The cooperation has been working together with Dongfeng, Sinotruck, Shanghai Fire Research Institute, Hanyang Special Purpose Vehicle Research Institute, Wuhan University of Automobile Technology for several years, and has developed a series of high-tech vehicle at national advanced level including fire truck, aerial platform truck, wrecker truck, road sweeper truck, garbage compactor truck, and the high spraying fire truck, CAFS compressing air foam fire truck,firefighting robot,electronic fire truck, fire motorcycle are also popular in the foreign and domestic market for reaching the international advanced level. With abundant technical personnel, improved detection means, reliable performance, and prompt after service, our products earned widespread acclaim. Hubei Hontop Special Purpose Vehicle Co. LTD. has been taking the quality as the first, and implementing ISO9001-2000 Quality Mangement System.For guarantee the stability of the quality and the good appearance of the product,every technology standard and code of operation have been followed, and every producing process and detail have been controlled strictly. Our mission is to provide the highest quality products at the best possible price. And, in doing so, to provide an unmatched customer experience and to create value for the customers.
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of factory. And welcomed to visit our factory.
Yes, we are oversea sales department of factory. And welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with truck.
5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts if
necessory. If you have special need, we can let our engineer to help you.
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with truck.
5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts if
necessory. If you have special need, we can let our engineer to help you.
