Specifications
22m Dongfeng Aerial Working Platform For Sale4x2, left hand drive
cummins engine 170hp
articulated boom type
iso9001, ccc
22m Dongfeng Aerial Wokring Platform For Sale
.
articulated boom aerial working platform, telescopic boom aerial working platform supplier in China, working height from 10m to 24m, the models have Dongfeng aerial working platform, Isuzu aerial working platform, JAC aerial working platform, JMC aerial working platform, Foton aerial working platform, Nissan aerial working platform...................
Features of our aerial working platform:
1. Turntable & Basket both could control.
2. Interlock between outrigger & working boom, safety protection.
3. H type outriggers, large span, more stability, the outrigger could extend single, also could extend together, there have flash light fitted, which could send alarm sign when working
4. Equipped with emergency hand pump.
5. Bucket 360° rotation.
This aerial working platform refitted from Dongfeng Tianjin chassis, the chassis fitted with cummins engine with a horsepower of 170hp, less fuel consumption, long life. the gear box is Dongfeng make, 6 speed manual. the driver's cabin equipped with air conditioner, radio.
Vehicle model |
JDF5110JGKDFL2 |
||
Cabin |
single row , has sleeper bed , 3 seats |
||
Drive type |
4x2 , left hand drive |
||
Wheel base |
5000mm |
||
Overall dimension (L*W*H) |
9400x2498x3790 mm |
||
Weight |
GVW |
10950 kg |
|
Curb weight |
10755 kg |
||
Engine |
Engine model |
B170 33 |
|
Make |
Cummins |
||
Rated power / Displacement |
125 kw / 5900 ml |
||
Emission standard |
Euro 2 |
||
Tire type |
9.00-20, 6 pcs |
||
Gear box |
manual , 6 speed |
||
Max working height |
22m |
||
Max working radius |
11.5 m |
||
Boom type |
articulated boom , 5 section of boom |
||
Outriggers |
4 pcs , H type |
||
Bucket rated load |
200kg |
||
Operation |
manual |
||

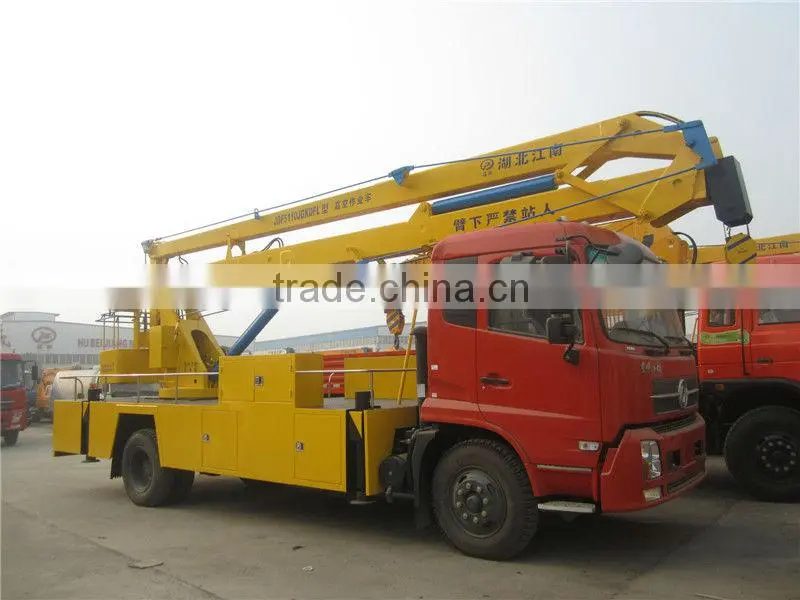

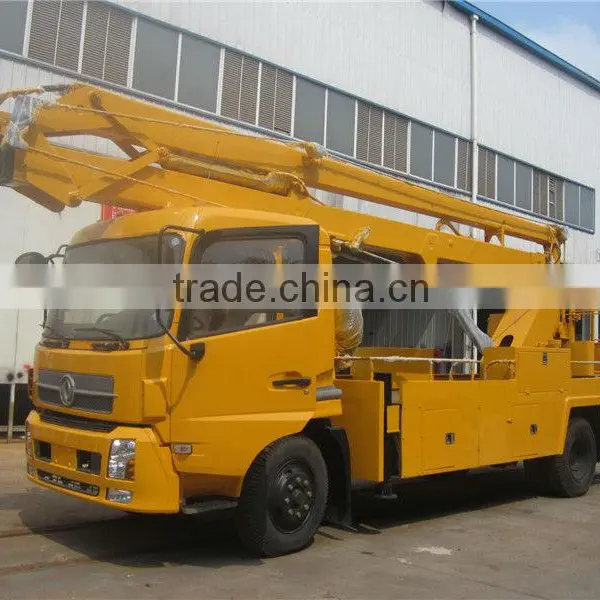

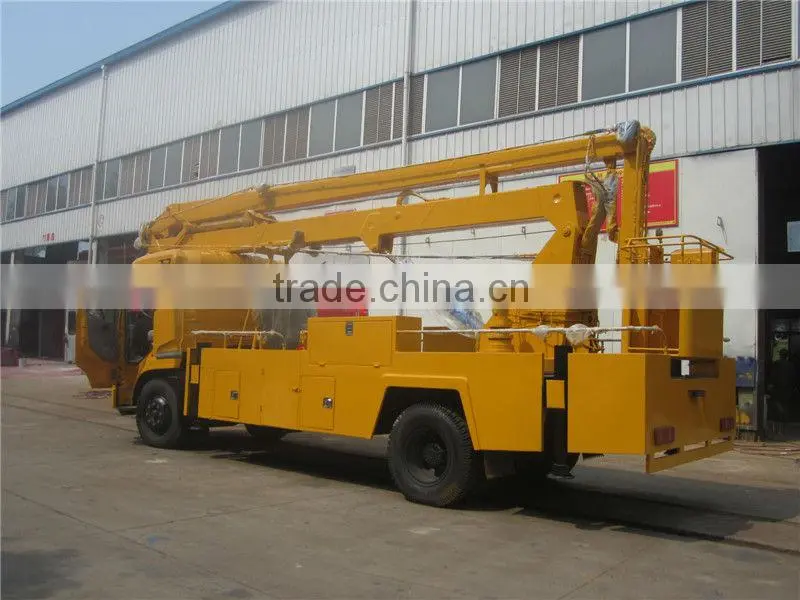

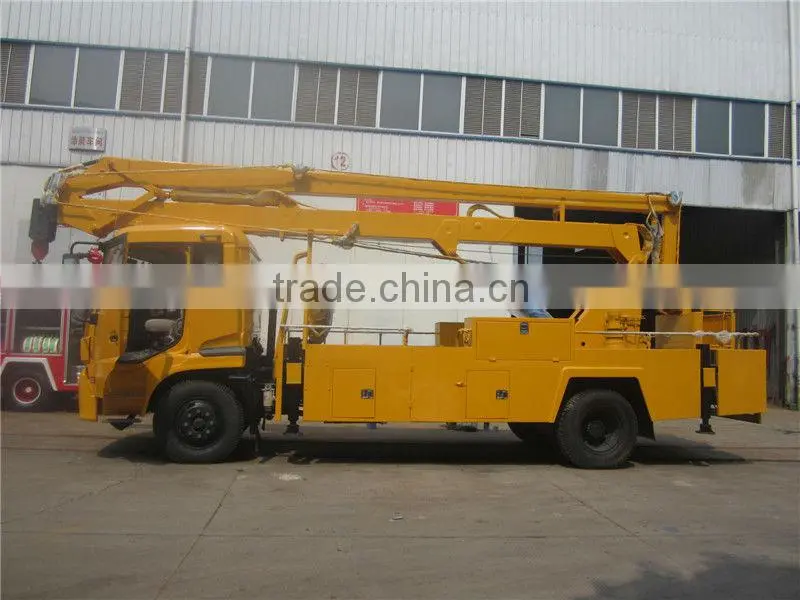

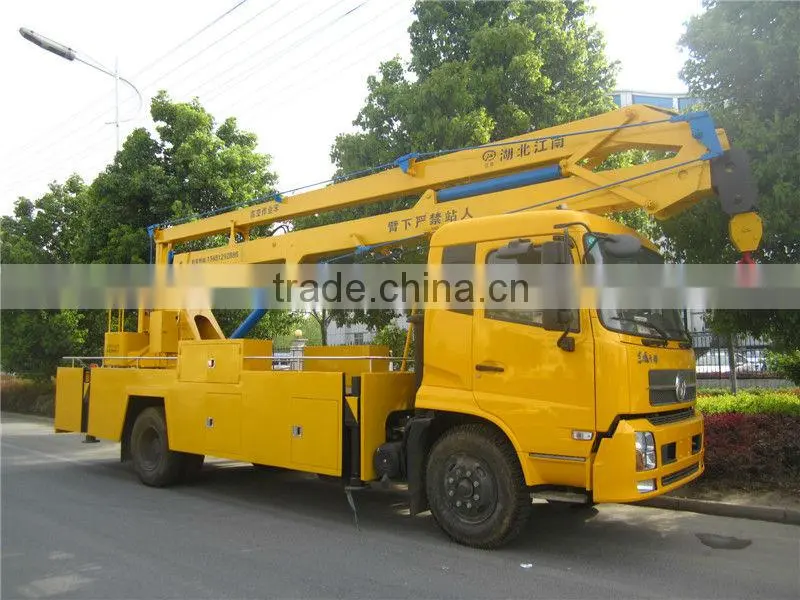

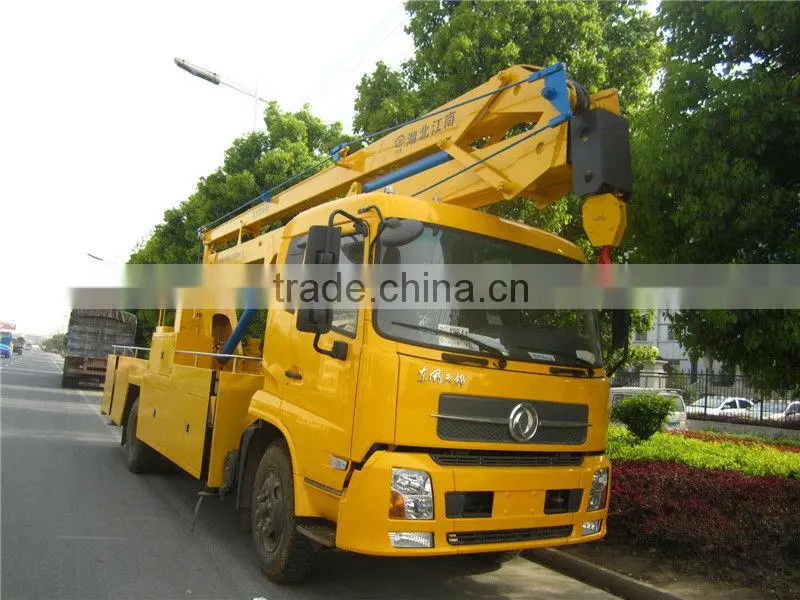

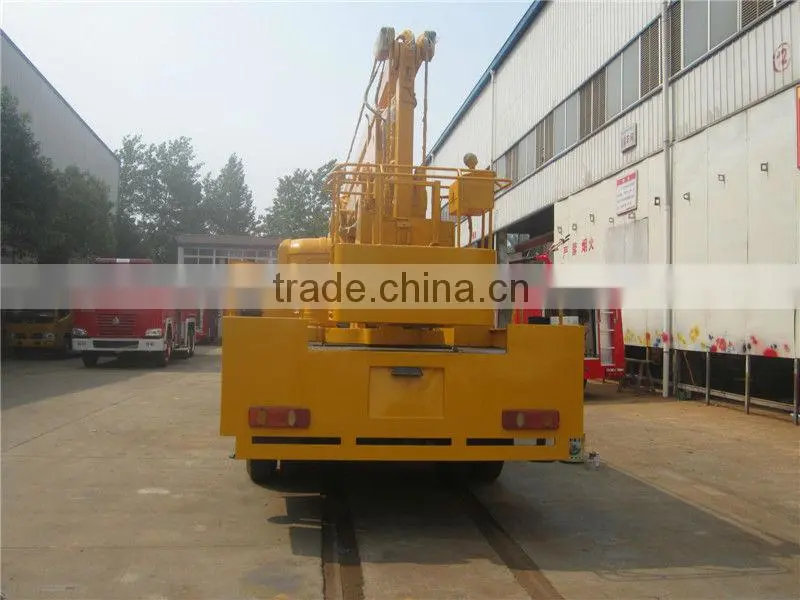

More image of the 22m aerial platform work truck:
