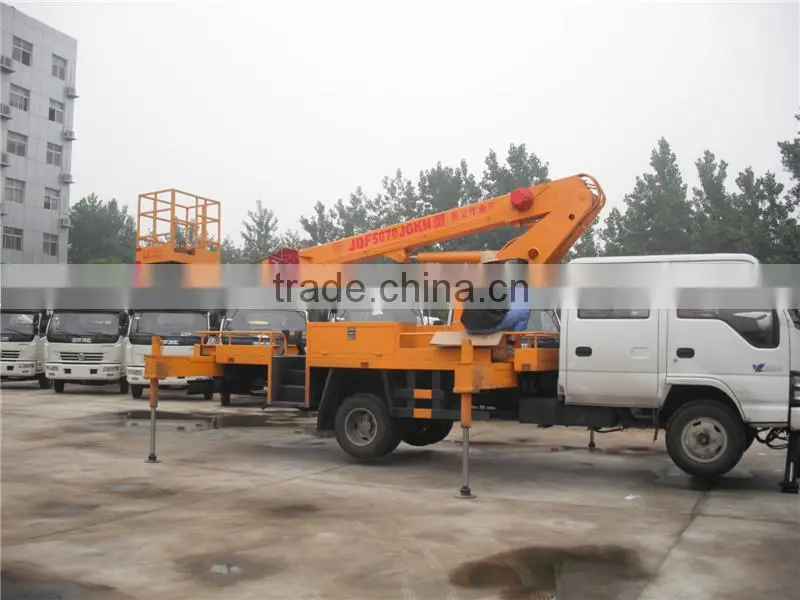

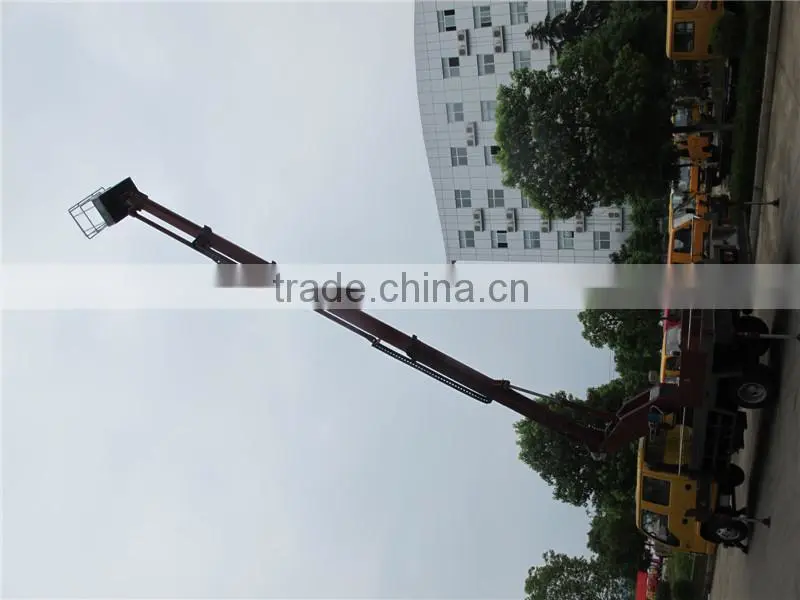

DFAC 20m Telescopic Aerial Platform Work Truck
professional aerial work platform truck manufacturer in China, our aerial platform truck, boom lift truck have a wide range of working height and chassis brand to optional, have got the certificate of ISO, CCC..........
this telescopic boom aerial work platform truck adopt CAN bus control system, the working boom is made of high quality steel, equipped with emergency pump and remote control system, features with strong safety, simplified control system, improved performance, and lower cost, can meet different working requirements.
Vehicle name |
telescopic boom aerial work platform truck |
||
Cabin |
single row, 2 seats |
||
Drive type |
4x2, left hand drive |
||
Wheel base |
3800mm |
||
Overall dimension (L*W*H) |
8365×2320×3340 mm |
||
Weight |
GVW |
7760 kg |
|
Curb weight |
7565 kg |
||
Engine |
Engine model |
YC4D130-30 |
|
Make |
Guangxi Yuchai Power |
||
Rated power / Displacement |
96 kw / 4214 ml |
||
Emission standard |
Euro 2 |
||
Tire type |
7.50-16, 6 pcs |
||
Gear box |
manual, 5 speed |
||
Brake |
Air Brake |
||
Max working height |
20 m |
||
Max working radius |
11.5 m |
||
Boom type |
telescopic boom, 3 section of boom |
||
Outriggers |
4 pcs, H type |
||
Bucket rated load |
200 kg |
||
Operation |
manual or remote control |
||
Our main products:
fire truck, aerial working truck, garbage truck, sewage suction truck, fecal sucking truck, refrigerated truck, truck mounted crane, road sweeper, van truck, cargo truck, dump truck, semi-trailer, concrete mixer truck, road wrecker, recovery truck, bulk cement tanker truck
