Specifications
aerial electric order pickerSemi electric and full electric order pickers are all available.

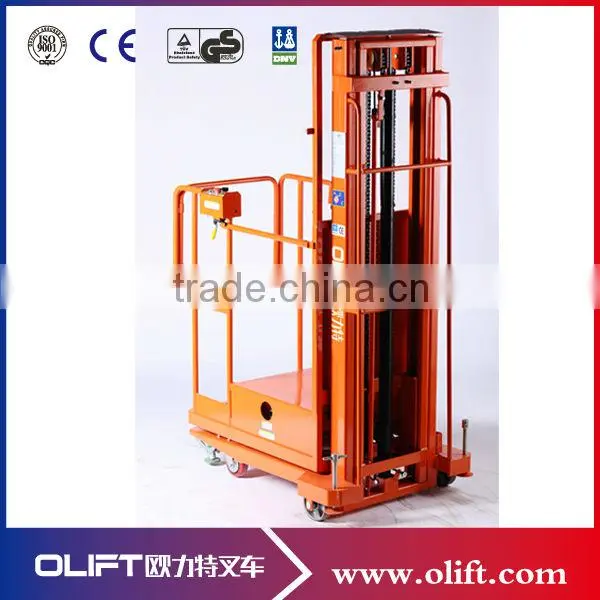

Aerial electric order picker
1.Our semi-electric lifting machine order picker is electrically lift and manually pushed
2.Adopt imported Winner hydraulic pump station
3.Equipped with maintenace-free battery
4.Applied for picking and placing small items
5.Broad operating platform.
6. Skidproof operating platform top.
7. Super excellent stability ensures the safety of working
Model |
|
TH0227 |
TH0233 |
TH0235 |
TH0240 |
TH0245 |
Maxpaltform height |
mm |
2700 |
3300 |
3500 |
4000 |
4500 |
Max machine height |
mm |
4700 |
5300 |
5500 |
6000 |
6500 |
Ground clearance |
mm |
30 |
30 |
30 |
30 |
30 |
Lift rated capacity |
kg |
200 |
200 |
200 |
200 |
200 |
Platform size |
mm |
600*950 |
600*950 |
600*950 |
600*950 |
600*950 |
Battery |
v/ah |
12/120 |
12/120 |
12/120 |
12/120 |
12/120 |
Charger |
v/ah |
12/15 |
12/15 |
12/15 |
12/15 |
12/15 |
Lifting motor |
v/kw |
12/1.5 |
12/1.5 |
12/1.5 |
12/1.5 |
12/1.5 |
Overall length |
mm |
1300 |
1300 |
1300 |
1300 |
1300 |
Overall width |
mm |
760 |
840 |
840 |
840 |
840 |
Overall height |
mm |
1760 |
2040 |
1660 |
1830 |
`1990 |
Overall net weight |
kg |
268 |
285 |
313 |
323 |
365 |
