Specifications
14m Articulating Boom Lift RTBZ16A4*4 driving mode and 4*2 driving mode are available for you to choose.

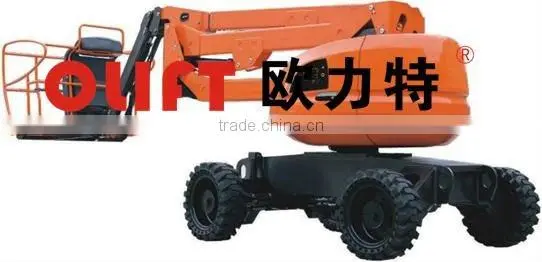

14m Articulating Boom Lift RTBZ16A
Can bus intrlligent control
Emergency pump
Working chronograph
Tilt alarm system
Automadtic leveling platform
Circuit fault code display
Platform hydraulic swing
Engine restart protection
Engine glow plug preheating unit
Rotating strobe light
Engine of Euro III emission standard
Overloaded limit
Our boom lift can be divided into two types, telescopic type and articulating type. Our telescopic boom lift is powered by an internal combustion engine, 4*4 driving mode and 4*2 driving mode are available for you to choose. This type of aerial working platform with a wide operation range, it could be used to handle aerial operation for a variety of rough terrain. Currently it is mainly applied for building construction, bridge building, ship building, outdoor advertisement facility installation, as well as construction of airport, mine, port and more.
| Model | RTBZ16A | |||||
| Max. Working Height | mm | 16000 | ||||
| Max. Platform Height | mm | 14000 | ||||
| Max. Horizontal Reach | mm | 7470 | ||||
| Ground Clearance | mm | 300 | ||||
| Safe Working Load | kg | 230 | ||||
| Wind Speed Limit Outdoors | Km/h | 45 | ||||
| Platform Size | mm | 1830*760 | ||||
| Turret Rotation | ° | 360 continuous | ||||
| Platform Rotation | ° | 160 | ||||
| Jib Movement | ° | 130 (+70/-60) | ||||
| Overall Length | mm | 6940 / 5150 | ||||
| Overall Width | mm | 2300 | ||||
| Overall Height | mm | 2330 | ||||
| Wheelbase | mm | 2200 | ||||
| Driving speed(Rasied/Stowed) | Km/h | 1.1-6 | ||||
| Turning radius-(I.D. / O.D.) | mm | 2220/5100 | ||||
| Power Style | - | internal combustion engine Euro III emission standard | ||||
| Engine | Perkins 404D22 | kw/rpm | 38/3000 | |||
| Kubota V2403-M-D1 | kw/rpm | 34/2400 | ||||
| Driving Mode | - | 4*2 WD | ||||
| Gradeability (Stowed) | % | 30 | ||||
| Max. Slope | ° | 5 | ||||
| Hydraulic Tank | L | 120 | ||||
| Diesel Tank | L | 75 | ||||
| Tyre Size (solid tyres) | 33*12-20 | |||||
| Self-weight | kg | 7500 | ||||
