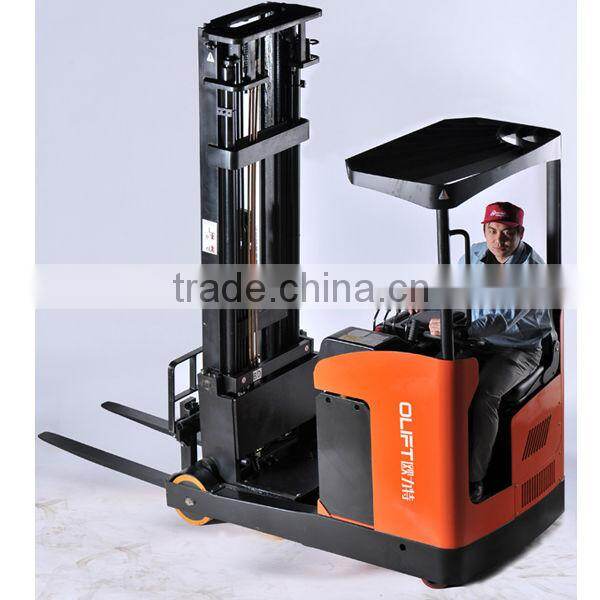

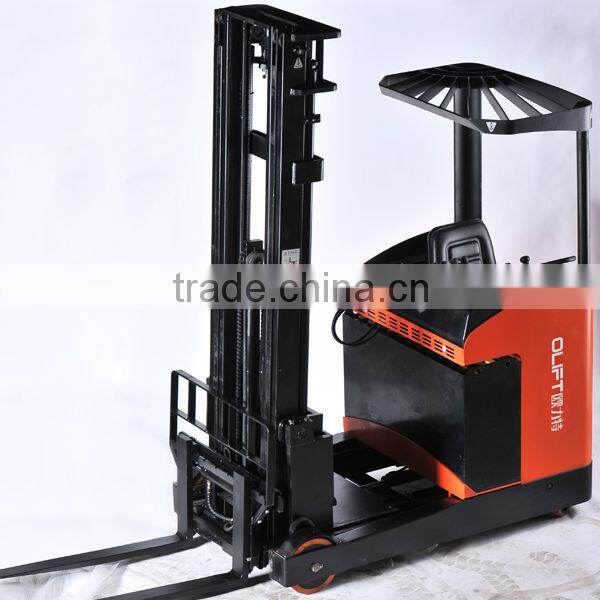

2.0 ton Electric Reach pallet Truck/electric lift truck
1. Max. Capacity reaches 2000 kgs
2. Max. Lifting height reaches 9500 mm
3. German ZF drive unit, German mast, durable and good-looking
4. Japan SHIMADZU hydraulic pumping station
5. ZAPI electrical controller, reliable and easy to operate. Curtis electric controller available also
6. In addition to raising, lowering, forwards and backwards motions, the fork also can realize tilting motion
7. Max. Free lift (forks lift up and down but mast keep still) height reaches 3200mm
8. Forks could move forwards at 3 degrees and backwards at 5 degrees
9. Mast could move forwards and backwards with forks at 600mm
10. Powerful battery could guarantee for 10 hours continuous operating time per day
11. The mast needs to be disassembled in shipment due to height limit in container
12. Equipments with CE certificate
| Model No. | TR10/30 | TR10/50 | TR10/62 | TR15/30 | |
| Capacity | Q(kg) | 1000 | 1000 | 1000 | 1500 |
| Load Center | C(mm) | 500 | 500 | 500 | 500 |
| Net. Weight | kg | 2000 | 2500 | 2600 | 2300 |
| Free Lifting Height | H1(mm) | 1500 | 1700 | 1900 | 1500 |
| Lifting Height | H2(mm) | 3000 | 5000 | 6200 | 3000 |
| Overall Length | A1(mm) | 2260 | 2410 | 2410 | 2260 |
| Overall Width | B1(mm) | 1020 | 1020 | 1020 | 1020 |
| Overall Height | H3(mm) | 2086 | 2240 | 2640 | 2086 |
| Truning Radius | R(mm) | 1690 | 1690 | 1690 | 1690 |
| Run Speed(On load) | Km/h | 6/6.2 | 6/6.2 | 6/6.2 | 6/6.2 |
| Lift Speed(On load) | m/s | 0.19/0.2 | 0.19/0.2 | 0.19/0.2 | 0.19/0.2 |
| Driving Motor | kw | 2.0 | 2.0 | 2.0 | 2.0 |
| Lifting Motor | kw | 5.0 | 5.0 | 5.0 | 5.0 |
| Battery | V/Ah | 24/400 | 48/400 | 48/400 | 48/400 |
1.We can design the customerized forklift truck as per your requirement.
2.The most suitable forklift truck will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the forklift truck break down to help you repair.
6.Parts of forklift truck can be sent to you by express within 7 days if needed.
1.How can customer buy parts once the electric forklift break down?
The electric forklift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the electric forklift.
One of the great advantage of electric forklift is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the electric forklift?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
5.How can we charge the battery?
It is equipped with a battery charger.You can connect the battery to the charger and connect the charger to the AC power.
Company Information
The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.

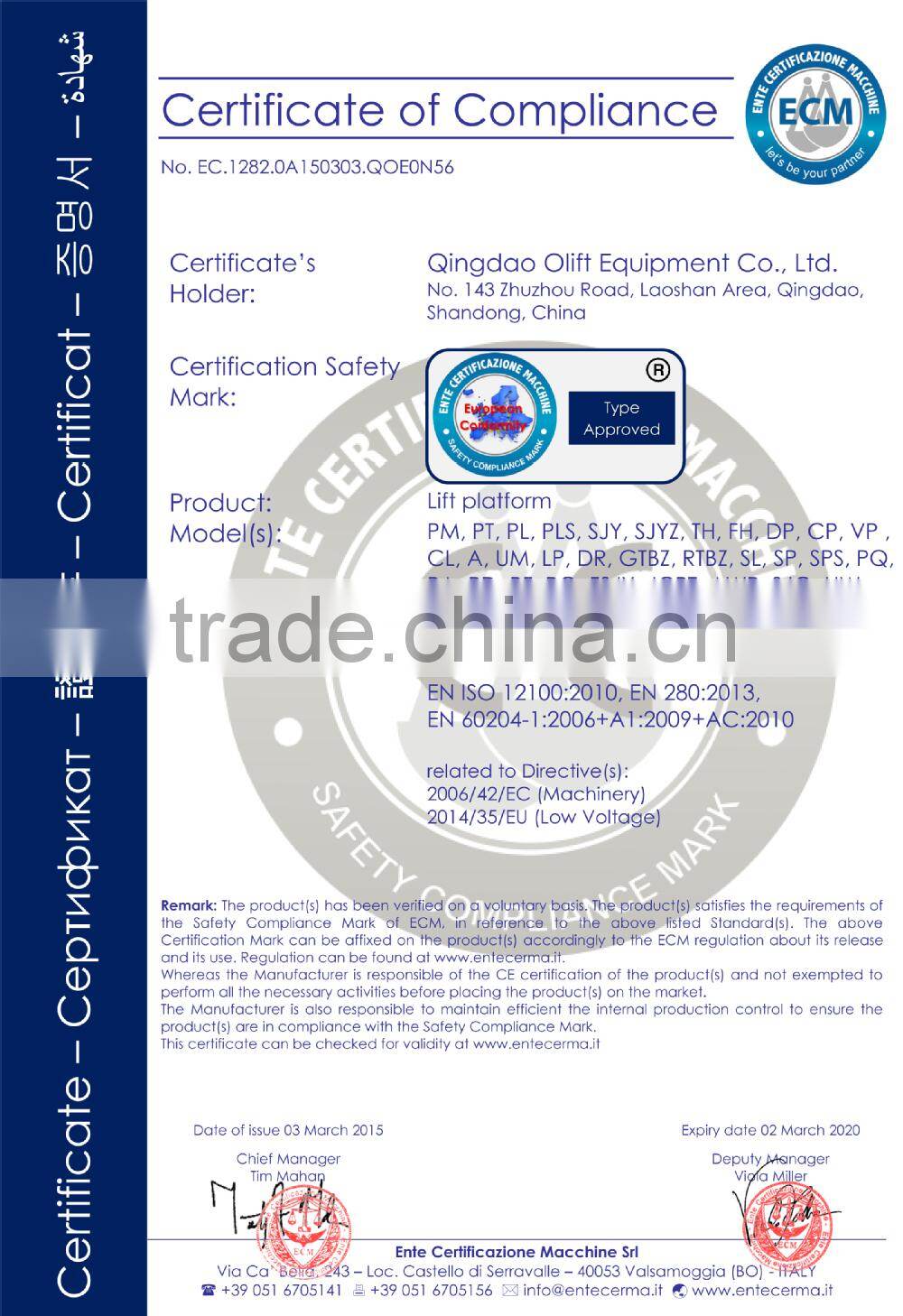

Certificate:
